ASME/ANSI B18.3:2003 Hex Socket Flat Point Set Screw is designed for ASME/ANSI-compatible equipment manufacturing, spare part replacement, and international assemblies that require U.S. standard set screw dimensions.
The flat point is suitable for pressing against flat or cylindrical surfaces, providing positioning without significant damage to the mating component. The hex socket drive allows stable torque application with a hex key and supports efficient production and maintenance work.
This product is used in collars, sliders, instrument adjustment parts, electromechanical modules, and industrial transmission accessories. Alloy steel, stainless steel, and various protective coatings can be selected according to load and environmental requirements.

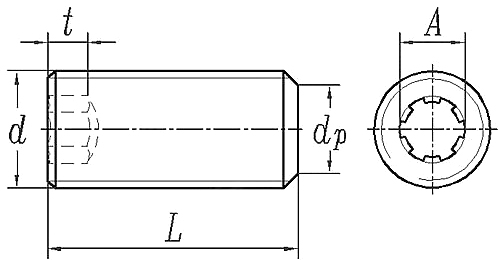

Dimensions unit: inch
|
Thread size d |
0# |
1# |
2# |
3# |
4# |
5# |
6# |
8# |
10# |
|
|
d |
Thread diameter |
0.0600 |
0.0730 |
0.0860 |
0.0990 |
0.1120 |
0.1250 |
0.1380 |
0.1640 |
0.1900 |
|
PP |
Coarse Thread/UNC |
- |
64.0 |
56.0 |
48.0 |
40.0 |
40.0 |
32.0 |
32.0 |
24.0 |
|
Fine Thread/UNF |
80.0 |
72.0 |
64.0 |
56.0 |
48.0 |
44.0 |
40.0 |
36.0 |
32.0 |
|
|
Extra-Fine Thread/UNEF |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
|
A |
Nominal quantity |
4 |
4 |
4\6 |
4\6 |
6 |
4 |
6 |
6 |
4 |
|
Nominal size |
0.033 |
0.033 |
0.048 |
0.048 |
0.060 |
0.072 |
0.072 |
0.096 |
0.111 |
|
|
t |
Min. |
0.026 |
0.035 |
0.040 |
0.040 |
0.045 |
0.055 |
0.055 |
0.080 |
0.080 |
|
dp |
Max. |
0.033 |
0.040 |
0.047 |
0.054 |
0.061 |
0.067 |
0.074 |
0.087 |
0.102 |
|
Min. |
0.027 |
0.033 |
0.039 |
0.045 |
0.051 |
0.057 |
0.064 |
0.076 |
0.088 |
|
|
L |
Nominal |
0.060 |
0.130 |
0.130 |
0.130 |
0.130 |
0.130 |
0.130 |
0.190 |
0.190 |
|
Thread size d |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
|
|
d |
Thread diameter |
0.2500 |
0.3125 |
0.3750 |
0.4375 |
0.5000 |
0.6250 |
0.7500 |
0.8750 |
|
PP |
Coarse Thread/UNC |
20.0 |
18.0 |
16.0 |
14.0 |
13.0 |
11.0 |
10.0 |
9.0 |
|
Fine Thread/UNF |
28.0 |
24.0 |
24.0 |
20.0 |
20.0 |
18.0 |
16.0 |
14.0 |
|
|
Extra-Fine Thread/UNEF |
32.0 |
32.0 |
32.0 |
28.0 |
28.0 |
24.0 |
20.0 |
20.0 |
|
|
A |
Nominal quantity |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
Nominal size |
0.145 |
0.183 |
0.216 |
0.251 |
0.291 |
0.372 |
0.454 |
0.595 |
|
|
t |
Min. |
0.125 |
0.156 |
0.188 |
0.219 |
0.250 |
0.312 |
0.375 |
0.500 |
|
dp |
Max. |
0.132 |
0.172 |
0.212 |
0.252 |
0.291 |
0.371 |
0.450 |
0.530 |
|
Min. |
0.118 |
0.156 |
0.194 |
0.232 |
0.270 |
0.347 |
0.425 |
0.502 |
|
|
L |
Nominal |
0.250 |
0.310 |
0.380 |
0.440 |
0.500 |
0.630 |
0.750 |
0.880 |
