ASME B18.31.1M:2008 Metric Double End Stud

ASME B18.31.1M:2008 Metric Double End Stud has relatively balanced threaded lengths on both ends, making it suitable for metric assemblies where nuts or mating parts may be connected from both sides.

It is commonly used in flange connections, pressure-vessel accessories, equipment mounting, piping components, and mechanical joints requiring detachable maintenance. The double-ended thread supports position adjustment during assembly and simplifies later replacement of nuts or matching parts.

Overall length, thread length on both ends, unthreaded section size, material strength, and surface finish should be reviewed. For high-temperature, corrosive, or pressure-related service, suitable materials and inspection controls should be selected according to project requirements.

Contact Us
PREV：DIN 835:2025 b1≈2d Double End Stud NEXT：No next product

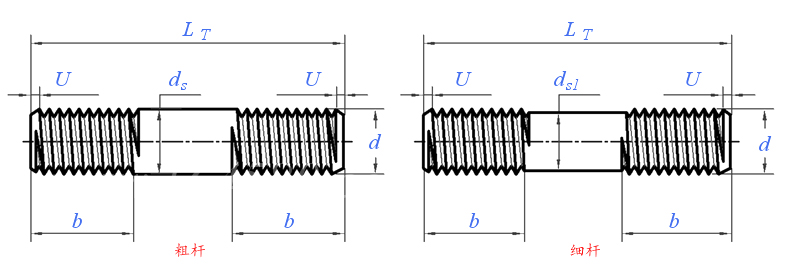

Dimensions unit: mm

Thread size  M6 M8 M10 M12 M14 M16 M20 M24 M30
d
P Pitch 1 1.25 1.5 1.75 2 2 2.5 3 3.5
b LT≤250 18 18 26 30 34 38 46 54 66
250＜LT≤400 24 24 32 36 40 44 52 60 72
LT＞400 - - 45 49 53 57 65 73 85
U Max.(=2P) 2 2.5 3 3.5 4 4 5 6 7
ds Max. 6 8 10 12 14 16 20 24 30
Min. LT≤150 5.82 7.78 9.78 11.73 13.73 15.73 19.67 23.67 -
LT＞150 5.7 7.64 9.64 11.57 13.57 15.57 19.48 23.48 29.48
ds1 Max. LT≤150 5.39 7.26 9.08 10.95 12.77 14.77 18.49 22.13 -
LT＞150 5.51 7.4 9.22 11.11 12.93 14.93 18.68 22.32 27.98
Min. 5.21 7.04 8.86 10.68 12.5 14.5 18.16 21.8 27.46



Thread size  M36 M42 M48 M56 M64 M72 M80 M90 M100
d
P Pitch 4 4.5 5 5.5 6 6 6 6 6
b LT≤250 78 90 - - - - - - -
250＜LT≤400 84 96 108 124 140 156 172 - -
LT＞400 97 109 121 137 153 169 185 205 225
U Max.(=2P) 8 9 10 11 12 12 12 12 12
ds Max. 36 42 48 56 64 72 80 90 100
Min. LT≤150 - - - - - - - - -
LT＞150 35.38 41.38 47.38 55.26 63.26 71.26 79.26 89.13 99.13
ds1 Max. LT≤150 - - - - - - - - -
LT＞150 33.74 39.4 45.05 52.83 60.48 68.48 76.48 86.61 96.59
Min. 33.12 38.78 44.43 52.09 59.74 67.74 75.74 85.74 95.72
