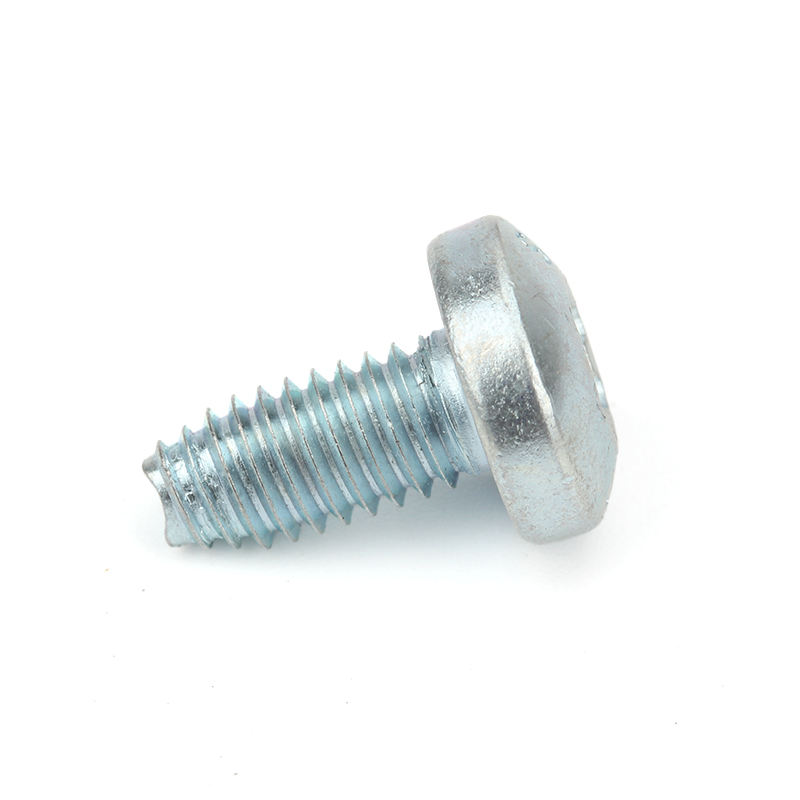

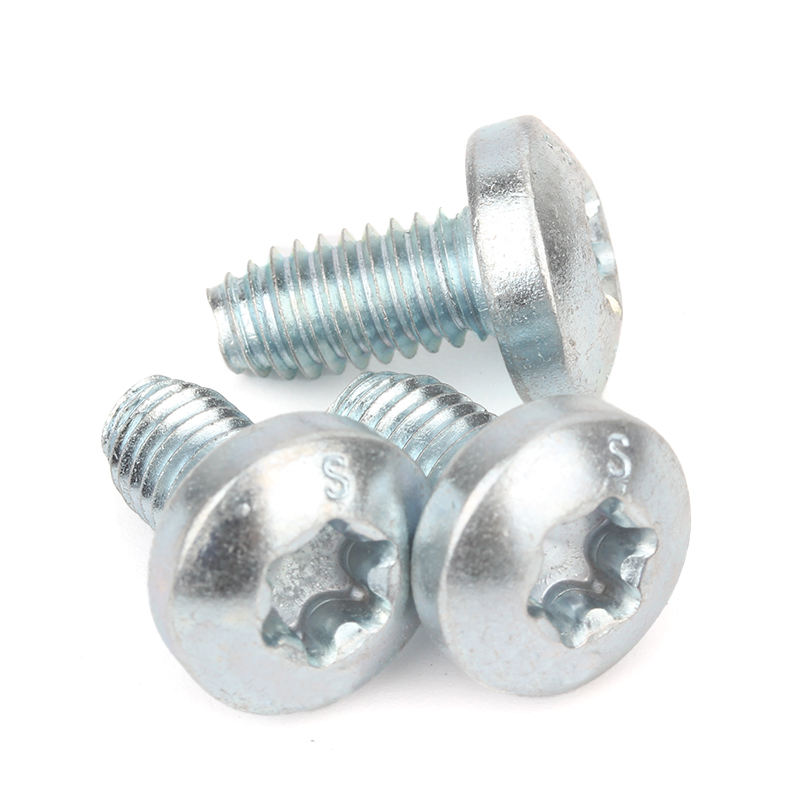

DIN 7500 (PE):2009 Pan Head Torx Triangular Thread Forming Screw

DIN 7500 (PE):2009 Pan Head Torx Triangular Thread Forming Screw combines a Torx pan head and triangular thread-forming locking profile and is suitable for mass assembly lines where reduced cam-out, higher drive efficiency, and dependable retention are important.

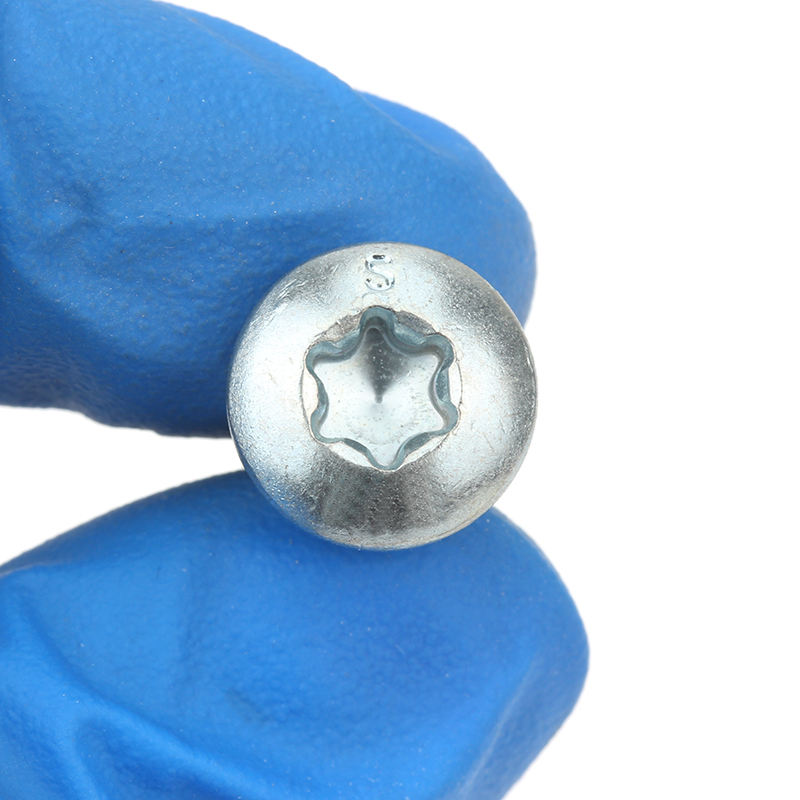

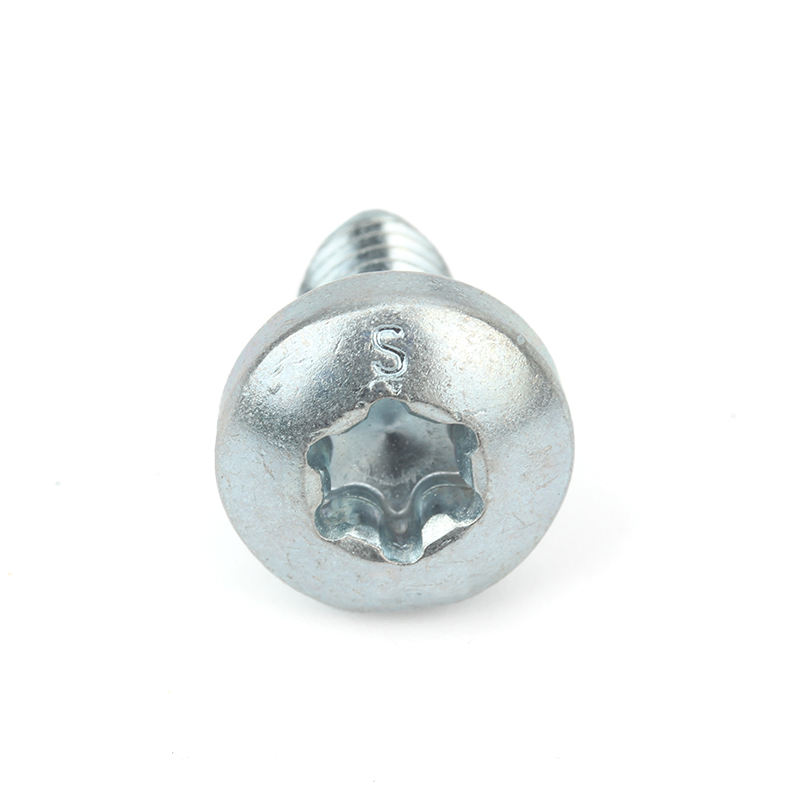

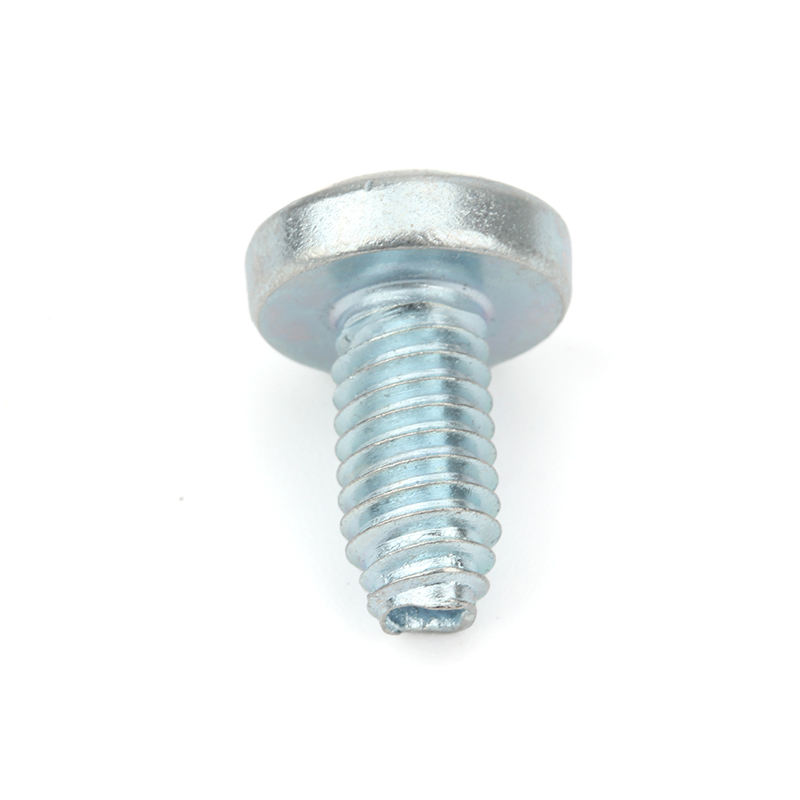

The Torx recess provides a larger contact area for stable torque transfer, the pan head offers a useful bearing face, and the triangular thread forms a tight engagement in pilot holes. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.

It is commonly used in electronics, appliances, office equipment, light machinery, and mixed plastic or thin-metal joints. According to drawings or service conditions, different coatings, thread lengths, and lead-in point designs can be selected to improve overall fastening performance and service life.

Contact Us
PREV：DIN 7500 (EE):2007 Socket Head Cap Hex Socket Triangular Thread Forming Screw NEXT：DIN 7500 (DE):2007 Hex Head Triangular Thread Forming Screw

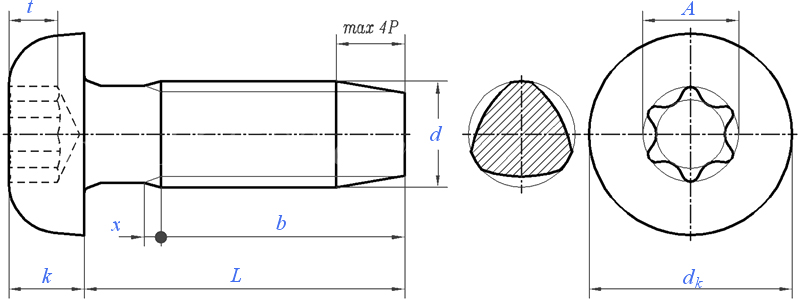

Dimensions unit: inch

Thread size d

M2

M2.5

M3

(M3.5)

M4

M5

M6

M8

M10

P

Pitch

0.4

0.45

0.5

0.6

0.7

0.8

1

1.25

1.5

b

Min.

25

25

25

38

38

38

38

38

38

dk

Max.=Nominal

4

5

5.6

7

8

9.5

12

16

20

Min.

3.7

4.7

5.3

6.64

7.64

9.14

11.57

15.57

19.48

k

Max.=Nominal

1.6

2.1

2.4

2.6

3.1

3.7

4.6

6

7.5

Min.

1.46

1.96

2.26

2.46

2.92

3.52

4.3

5.7

7.14

x

Max.

1

1.1

1.25

1.5

1.75

2

2.5

3.2

3.8

Slot number

T6

T8

T10

T15

T20

T25

T30

T45

T50

A

1.75

2.4

2.8

3.35

3.95

4.5

5.6

7.95

8.95

t

Max.

0.77

1.04

1.27

1.33

1.66

1.91

2.42

3.18

4.02

Min.

0.63

0.91

1.01

1.07

1.27

1.52

2.02

2.79

3.62

Thousand pieces of steel weigh ≈kg



-

-

-

-

-

-

-

-

-
