DIN 7349:1974 Heavy Flat Washer

DIN 7349:1974 Heavy Flat Washer for bolts with heavy clamping sleeves is used in connections requiring high bearing capacity and compensation for larger clearances. Compared with a standard flat washer, it places greater emphasis on load support and seating stability, protecting the connected surface under high clamping force.

It is commonly used in heavy equipment, steel structures, construction machinery, clamping-sleeve connections, and bolt assemblies requiring a reinforced bearing surface. The thicker or wider bearing area helps improve load distribution and reduces localized damage from the bolt head or nut.

Material and surface finish can be matched to bolt size, load class, and environmental requirements, making it suitable for improving joint reliability under high load, vibration, or outdoor service conditions.

Contact Us

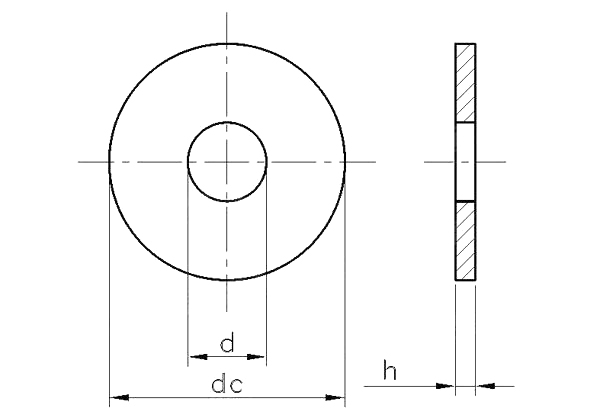

Dimensions unit: mm

Nominal diameter d

3.2

4.3

5.3

6.4

8.4

10.5

13

15

17

19

21

23

25

28

31

dc

9

12

15

17

21

25

30

36

40

44

44

50

50

60

68

h

1

1.6

2

3

4

4

6

6

6

8

8

8

10

10

10

Weight per thousand pieces (steel)≈kg

0.436

1.24

2.43

4.59

9.15

12.7

27.1

39.6

48.5

77.4

73.4

97.1

116

174

226

Applicable bolt specifications

3

4

5

6

8

10

12

14

16

18

20

22

24

27

30
