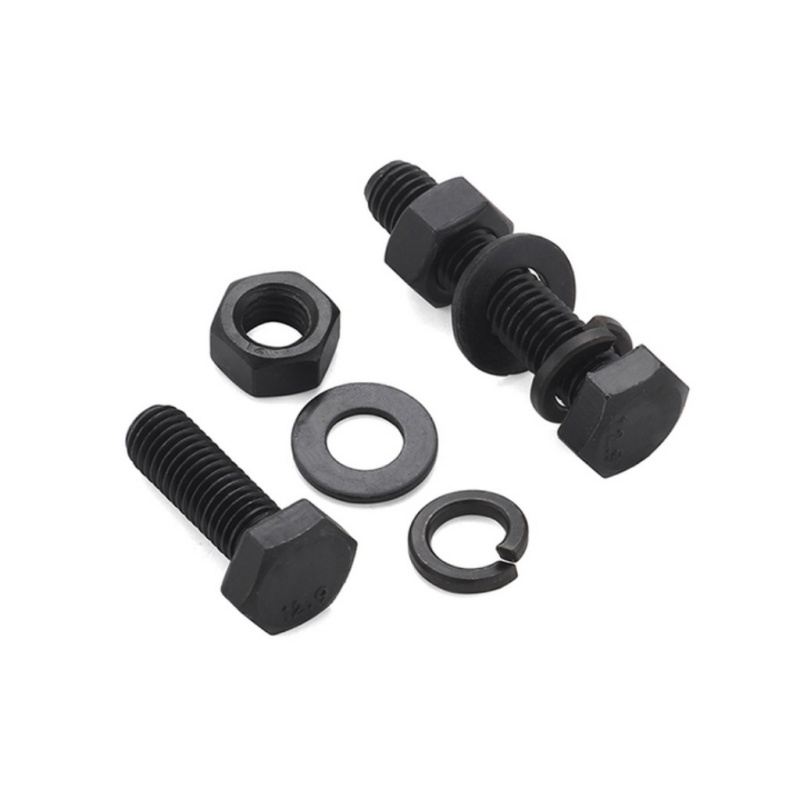

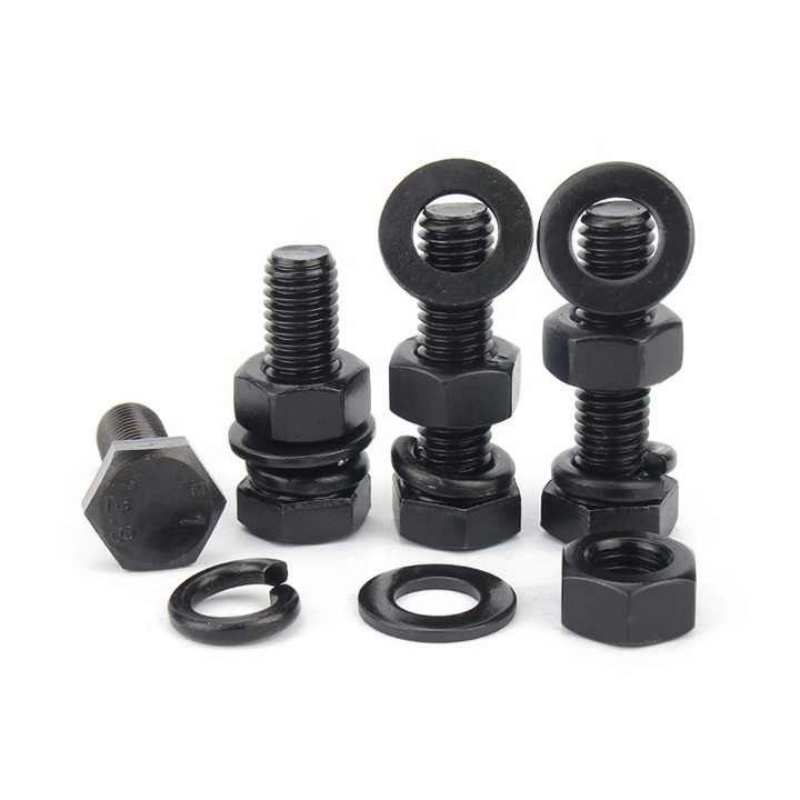

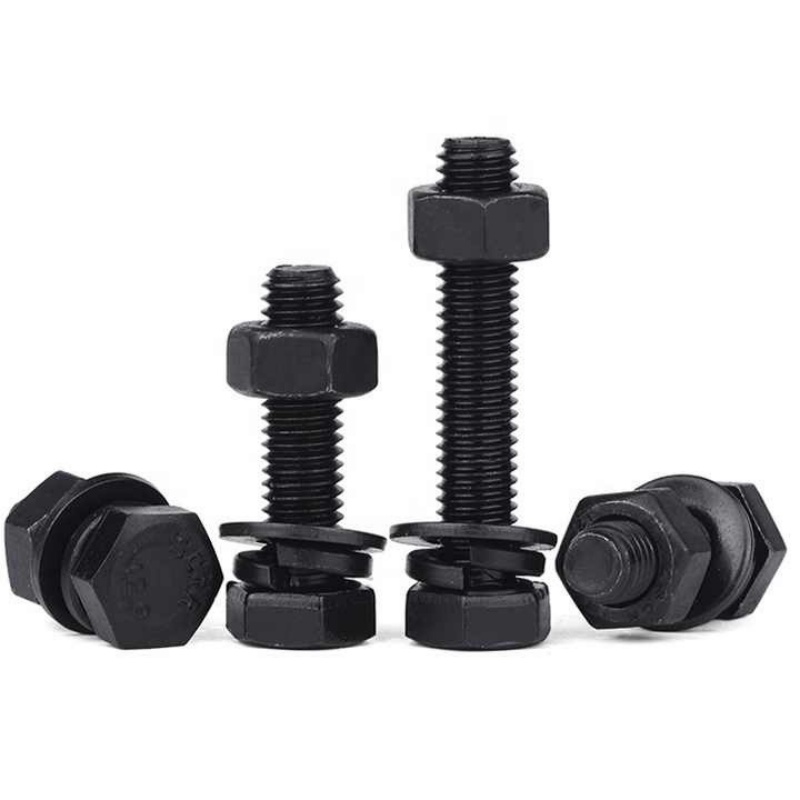

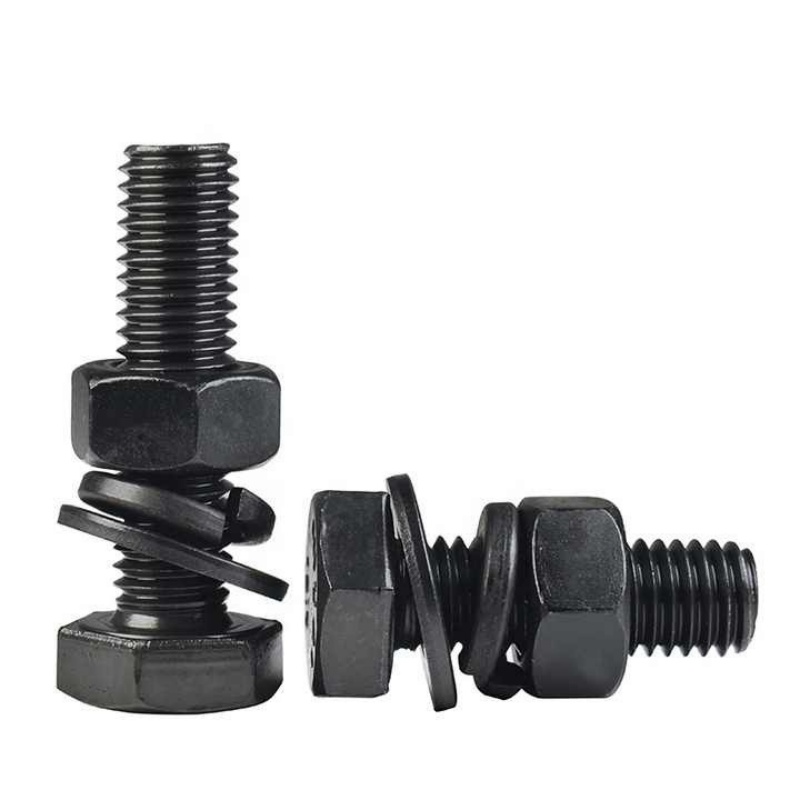

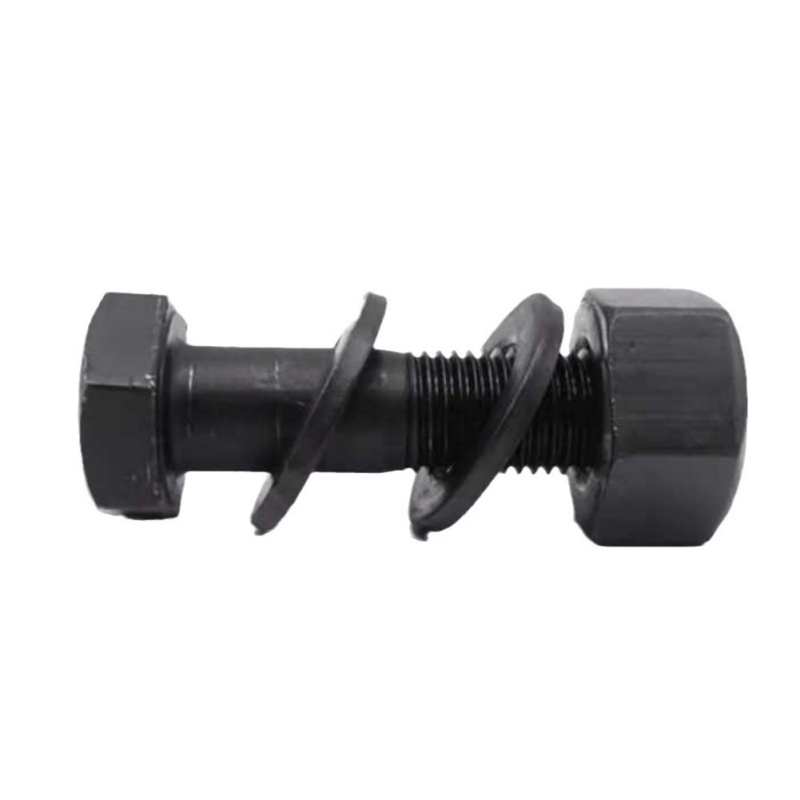

DIN 6914:1989 Structural High Strength Heavy Hex Bolt is intended for high-strength structural steel connections. Its larger head size helps transfer stable tightening torque and create dependable clamping performance at structural joints.
The bolt is suitable for bridges, industrial buildings, heavy steel frames, towers, and large construction components. Its high-strength characteristics allow it to withstand significant preload and structural loads, usually as part of a matched set with heavy-duty nuts and washers.
For outdoor or long-term loaded environments, finish selection, batch consistency, and matching hardware are especially important. Coating and packaging options can be arranged to support site identification, installation control, and quality traceability.

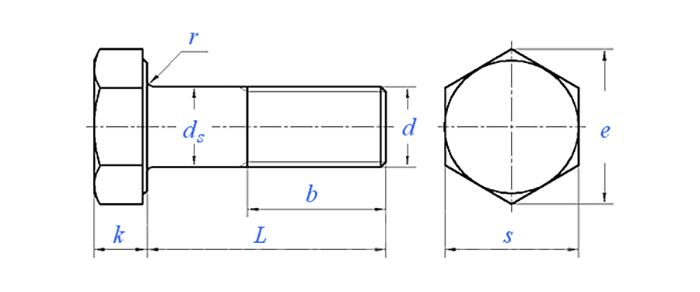

Dimensions unit: mm
| Thread size d | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 | |
| P | Pitch | 1.75 | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
| ds | Nominal | 12 | 16 | 20 | 22 | 24 | 27 | 30 | 36 |
| Max. | 12.7 | 16.7 | 20.84 | 22.84 | 24.84 | 27.84 | 30.84 | 37 | |
| Min. | 11.3 | 15.3 | 19.16 | 21.16 | 23.16 | 26.16 | 29.16 | 35 | |
| e | Min. | 23.91 | 29.56 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 66.44 |
| k | Nominal | 8 | 10 | 13 | 14 | 15 | 17 | 19 | 23 |
| Max. | 8.45 | 10.75 | 13.9 | 14.9 | 15.9 | 17.9 | 20.05 | 24.05 | |
| Min. | 7.55 | 9.25 | 12.1 | 13.1 | 14.1 | 16.1 | 17.95 | 21.95 | |
| r | Min. | 1.2 | 1.2 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 |
| s | Max. = Nominal | 22 | 27 | 32 | 36 | 41 | 46 | 50 | 60 |
| Min. | 21.16 | 26.16 | 31 | 35 | 40 | 45 | 49 | 58.8 | |
| Thousand pieces of steel weigh ≈kg | - | - | - | - | - | - | - | - | |
| Thread length b | - | - | - | - | - | - | - | - | |
① Material: steel, strength grade 10.9 according to standard DIN ISO 898-1
