DIN 440:2024 Wood Construction Square Hole Washer

DIN 440:2024 Wood Construction Square Hole Washer is used in bolted joints for wooden beams, posts, and structural timber connections. The square hole can mate with square-neck bolts or special fasteners to help prevent rotation while providing a larger bearing area.

This washer is suitable for timber buildings, bridge decking components, landscape facilities, wooden supports, and heavy timber assemblies. Compared with a small-diameter washer, the square or enlarged bearing surface reduces the risk of crushing wood fibers and improves joint stability.

Different sizes and coatings can be selected according to timber thickness, bolt specification, and outdoor corrosion requirements, supporting structural fixing, repair reinforcement, and long-term exposed service.

Contact Us

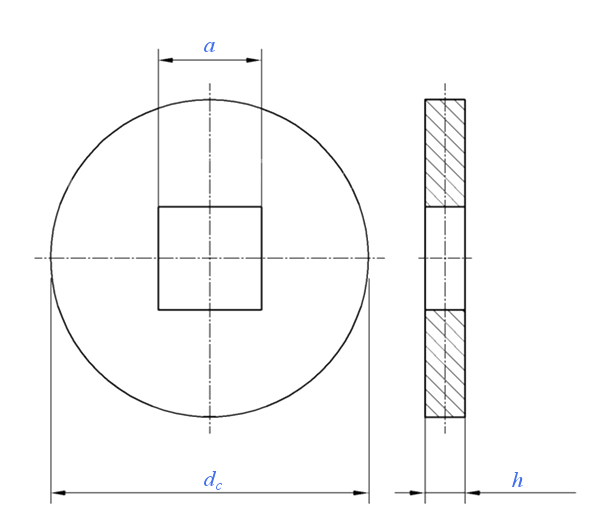

Dimensions unit: mm

Applicable thread

M5

M6

M8

M10

M12

M16

M20

M22

a

Min.=Nominal

5.5

6.6

9

11

14

18

22

24

Max.

5.8

6.96

9.36

11.43

14.43

18.7

22.84

24.84

dc

Max.=Nominal

18

22

28

34

44

56

72

80

Min.

16.9

20.7

26.7

32.4

42.4

54.1

70.1

78.1

h

Nominal

2

2

3

3

4

5

6

6

Max.

2.3

2.3

3.6

3.6

4.6

6

7

7

Min.

1.7

1.7

2.4

2.4

3.4

4

5

5

Weight per thousand pieces (steel)≈kg

3.52

5.28

12.6

18.5

41.6

84

169

210
