ASME B18.6.3 (H9B-I):2024 Hex Head Heavy Hex Phillips Screw

ASME B18.6.3 (H9B-I):2024 Hex Head Heavy Hex Phillips Screw combines a Phillips drive with a hex head, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The ASME standard framework suits projects requiring U.S.-standard compatibility and engineering applicability, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.

From an assembly perspective, the cross recess provides good centering and suits production assembly, workstation operations, and joints requiring controlled driving. At the same time, the external hex head provides a robust driving form for installation and removal with wrenches, sockets, or power tools, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.

It works well for equipment connections, bracket fastening, structural assemblies, and sites requiring convenient maintenance. For batch assembly, the product can be tailored around workstation tools, tightening torque, visual grade, and packaging method to reduce sorting cost and improve assembly consistency.

Contact Us
PREV：ASME/ANSI B18.6.3 (T22):2010 Oval Fillister Head Phillips Screw NEXT：ASME/ANSI B18.6.3:2003 Truss Head Phillips Screw

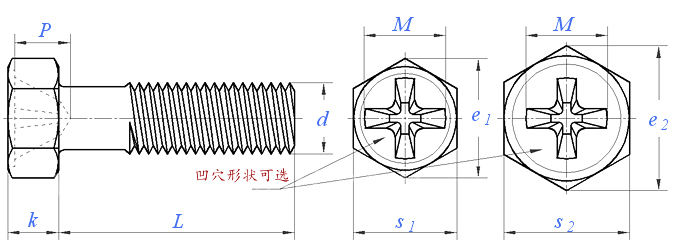

Dimensions unit: inch

Thread size d

1#

2#

3#

4#

5#

6#

8#

10#

12#

1/4

5/16

3/8

d

Nominal

0.073

0.086

0.099

0.112

0.125

0.138

0.164

0.19

0.216

0.25

0.3125

0.375

PP

64

56

48

40

40

32

32

24

24

20

18

16

M

Reference value

0.072

0.086

0.092

0.097

0.105

0.148

0.168

0.178

0.247

0.277

0.359

0.387

Slot number

0

1

1

1

1

2

2

2

3

3

4

4

P

Max.

0.054

0.054

0.06

0.067

0.076

0.089

0.115

0.127

0.152

0.186

0.234

0.267

Min.

0.036

0.036

0.042

0.049

0.058

0.064

0.09

0.102

0.127

0.161

0.21

0.243

s1

Standard type

Max.

0.125

0.125

0.188

0.188

0.188

0.25

0.25

0.312

0.312

0.375

0.5

0.562

Min.

0.12

0.12

0.181

0.181

0.181

0.244

0.244

0.305

0.305

0.367

0.489

0.551

s2

Big hexagon

Max.

/

/

/

0.219

0.25

/

0.312

/

0.375

0.438

/

/

Min.

/

/

/

0.213

0.244

/

0.305

/

0.367

0.428

/

/

e1

Standard type

Min.

0.134

0.134

0.202

0.202

0.202

0.272

0.272

0.34

0.34

0.409

0.545

0.614

e2

Big hexagon

Min.

/

/

/

0.238

0.272

/

0.34

/

0.409

0.477

/

/

k

Max.

0.044

0.05

0.055

0.06

0.07

0.093

0.11

0.12

0.155

0.19

0.23

0.295

Min.

0.036

0.04

0.044

0.049

0.058

0.08

0.096

0.105

0.139

0.172

0.208

0.27
