DIN 463:1974 Double Tab Lock Washer has two bendable tabs that create a more secure mechanical lock against a nut or adjacent structure after assembly. The two-tab design can be bent in different directions according to installation space, improving locking flexibility and reliability.
It is suitable for shaft ends, transmission devices, bearing locking, equipment servicing, and fastening points exposed to vibration. By bending the tabs to restrict relative rotation, it provides dependable locking without requiring a complex anti-loosening system.
The washer can be selected by thread size, tab shape, and material, with zinc plating, black oxide, or stainless steel options available to meet different corrosion-protection and maintenance-cycle requirements.

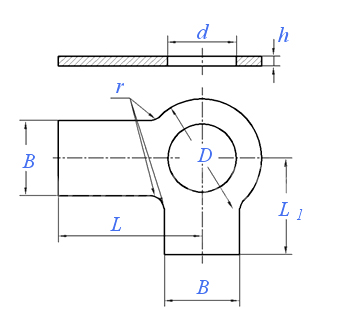

Dimensions unit: mm
|
Applicable thread |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
M14 |
M16 |
M18 |
|
d |
3.2 |
3.7 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
13 |
15 |
17 |
19 |
|
B |
4 |
4 |
5 |
6 |
7 |
7 |
8 |
10 |
12 |
12 |
15 |
18 |
|
D |
7 |
8 |
9 |
10 |
12.5 |
14 |
17 |
21 |
24 |
28 |
30 |
34 |
|
L |
13 |
13 |
14 |
16 |
18 |
18 |
20 |
22 |
28 |
28 |
32 |
36 |
|
L1 |
5 |
5.5 |
6.5 |
8 |
9 |
10 |
11 |
13 |
15 |
16 |
18 |
20 |
|
h |
0.38 |
0.38 |
0.38 |
0.5 |
0.5 |
0.5 |
0.75 |
0.75 |
1 |
1 |
1 |
1 |
|
Weight per thousand pieces (steel)≈kg |
0.229 |
0.251 |
0.327 |
0.55 |
0.8 |
0.9 |
1.71 |
2.51 |
4.41 |
5.09 |
6.3 |
8.24 |
|
Applicable thread |
M20 |
M22 |
M24 |
M27 |
M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
M52 |
|
d |
21 |
23 |
25 |
28 |
31 |
34 |
37 |
40 |
43 |
46 |
50 |
54 |
|
B |
18 |
20 |
20 |
23 |
26 |
28 |
30 |
32 |
35 |
38 |
40 |
44 |
|
D |
37 |
39 |
44 |
50 |
56 |
60 |
66 |
72 |
78 |
85 |
92 |
98 |
|
L |
36 |
42 |
42 |
48 |
52 |
56 |
60 |
64 |
70 |
75 |
80 |
85 |
|
L1 |
21 |
23 |
25 |
29 |
32 |
34 |
38 |
41 |
44 |
48 |
50 |
53 |
|
h |
1 |
1 |
1 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
Weight per thousand pieces (steel)≈kg |
9 |
10 |
12 |
25.3 |
31.4 |
35.6 |
42.5 |
49.7 |
59.2 |
70.3 |
80 |
90.2 |
① Material:
a) Steel St12 O3 according to DIN 1623 or St2 K32 GBK according to DIN 1624
b) Brass CuZn36 F30 (old brand Ms63 F30) according to DIN 17670
c) Other materials as per agreement
