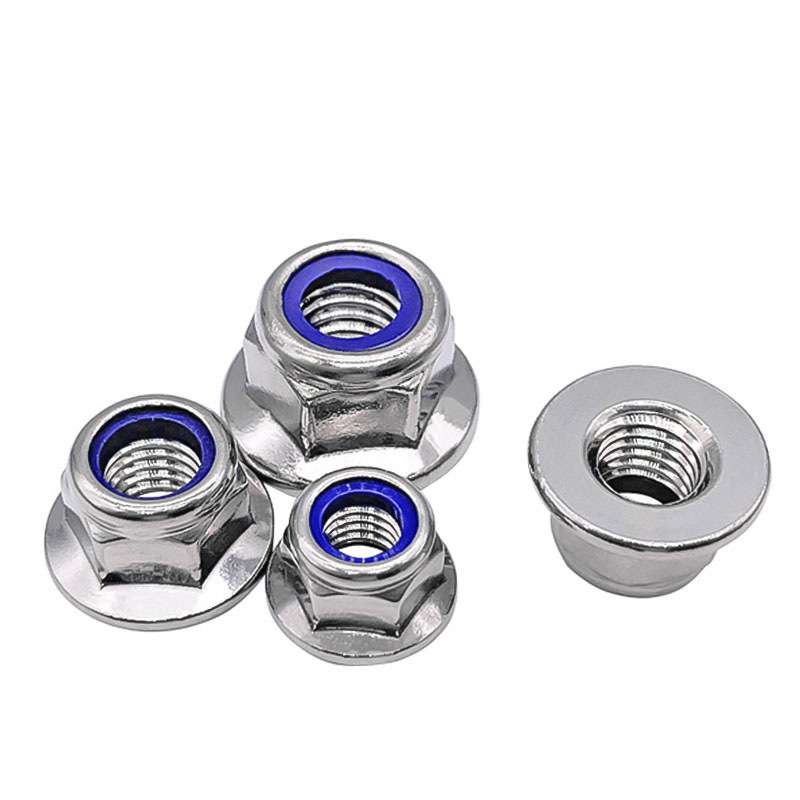

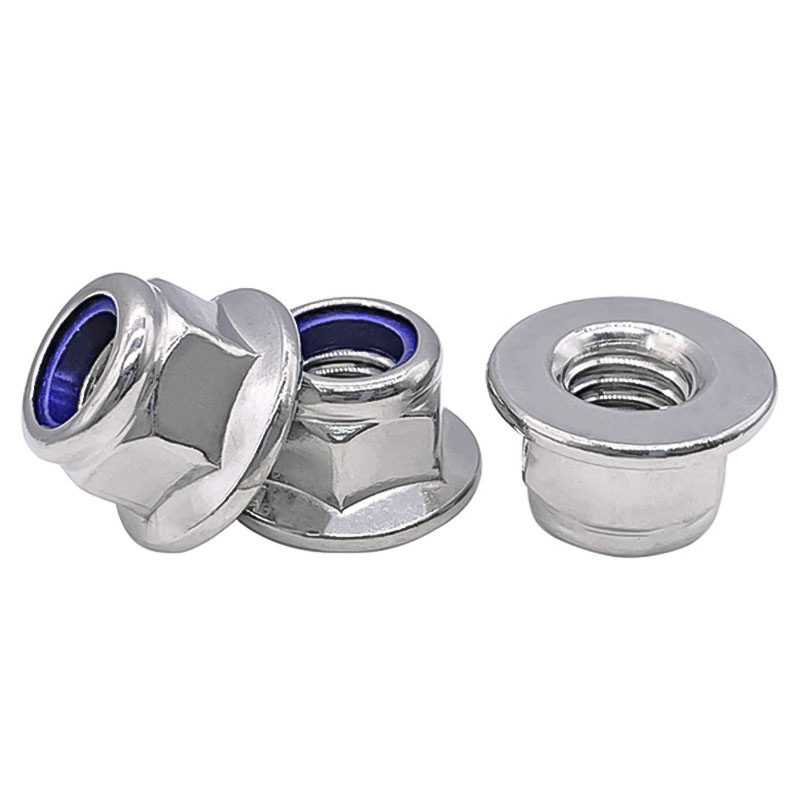

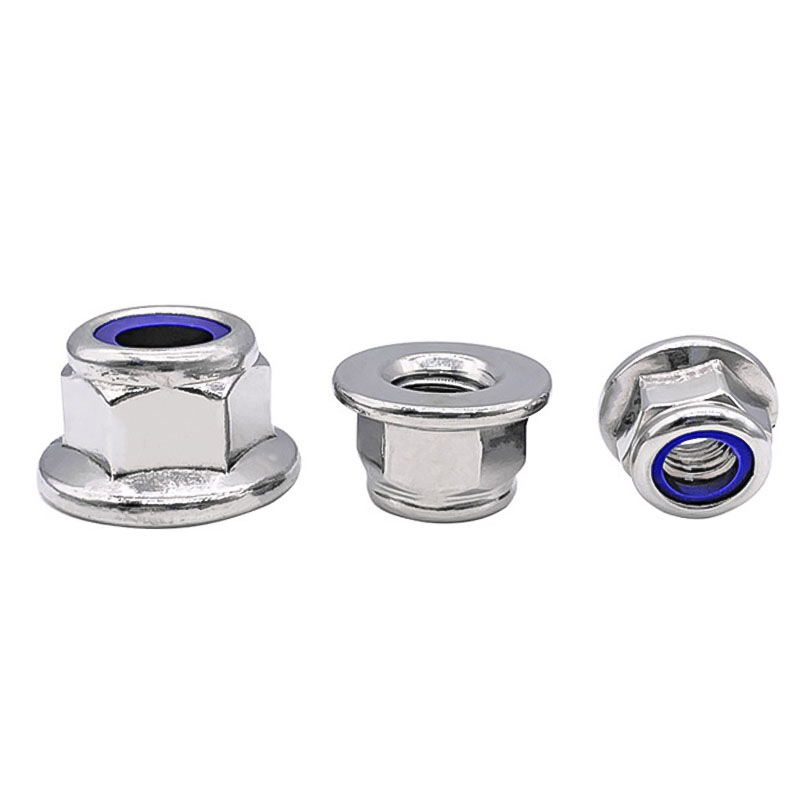

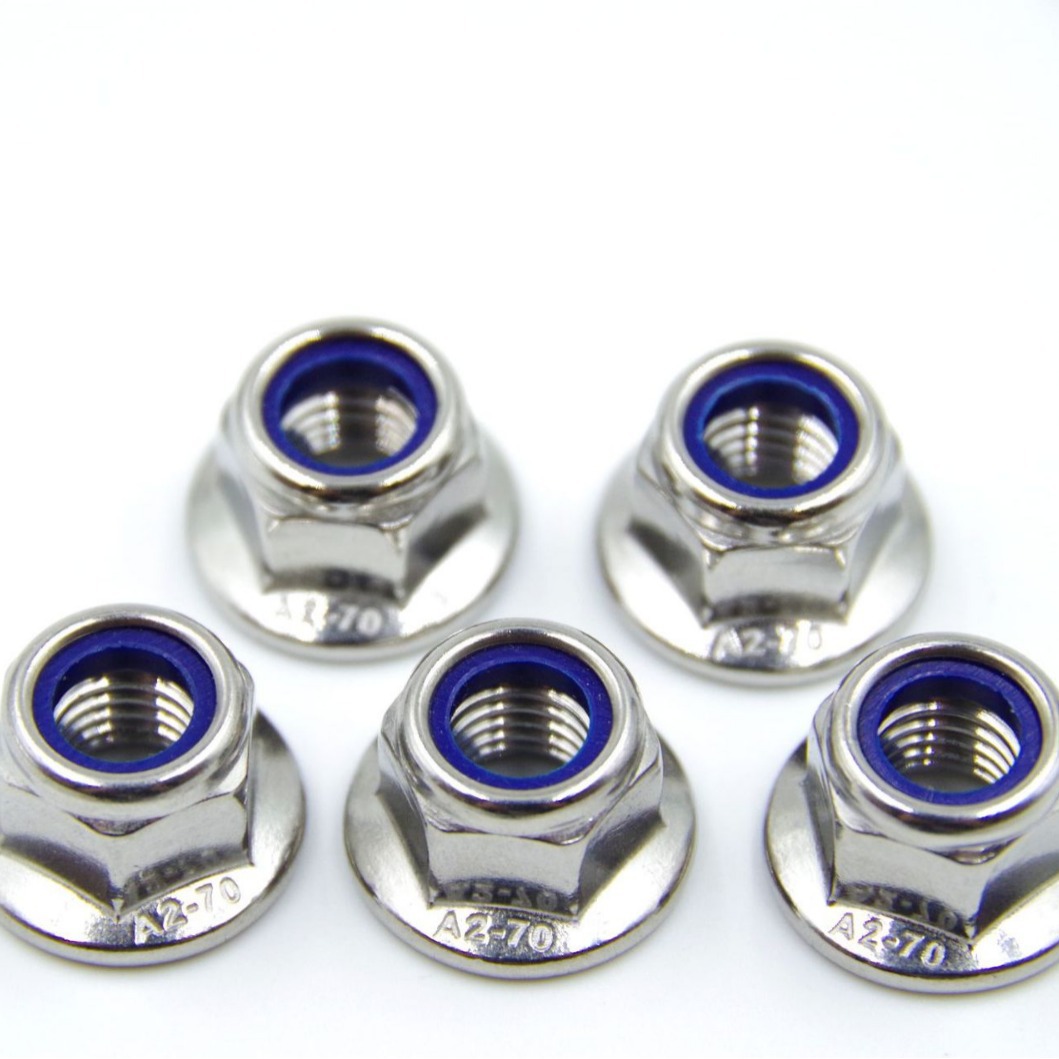

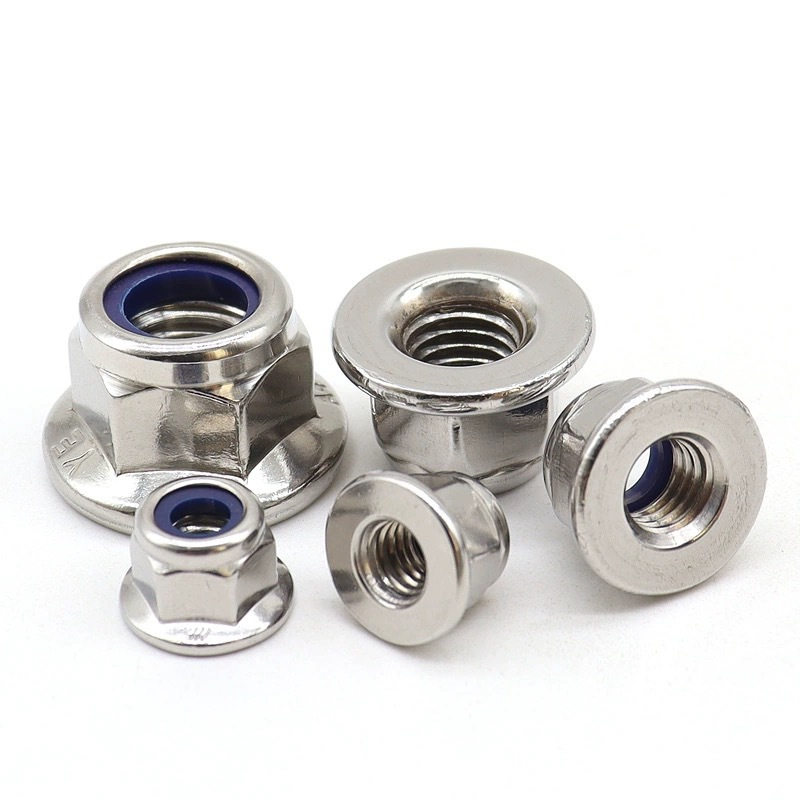

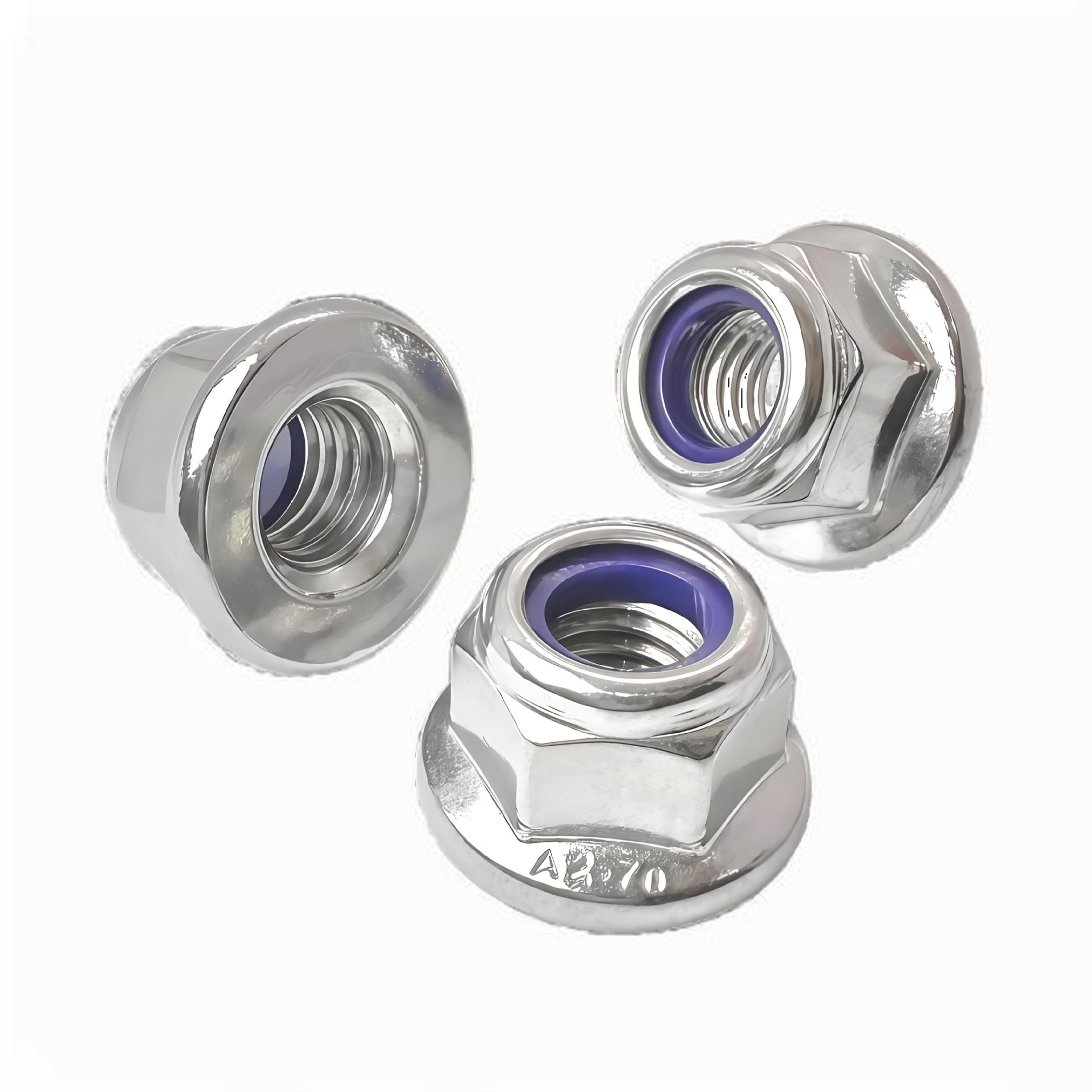

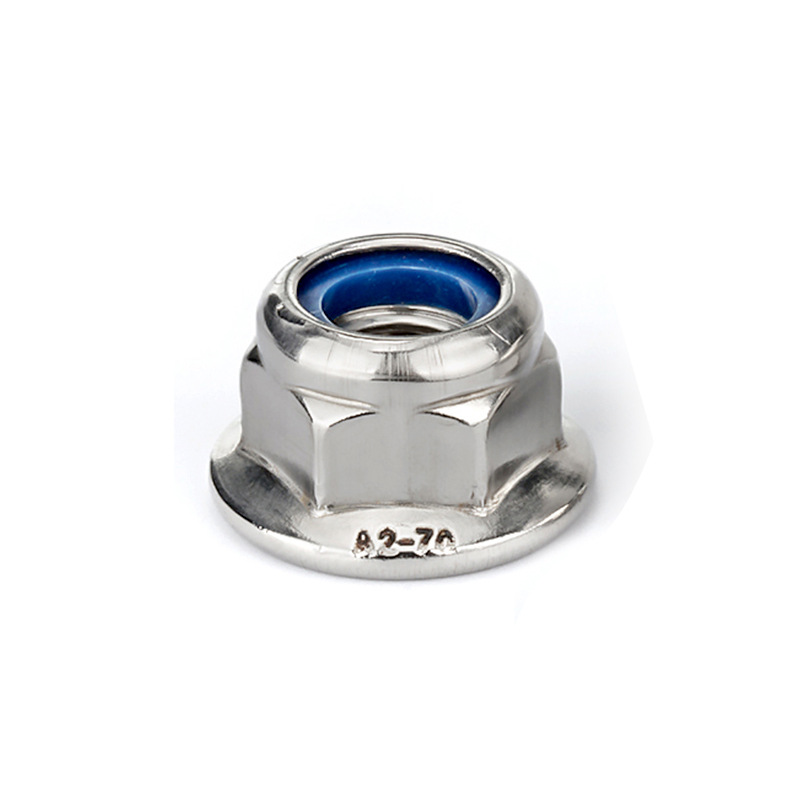

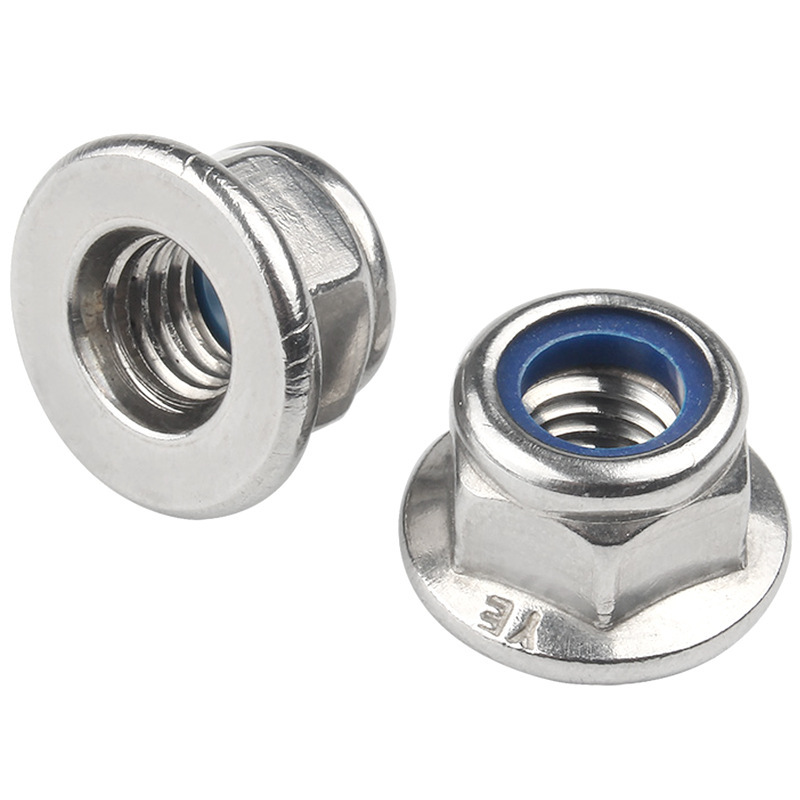

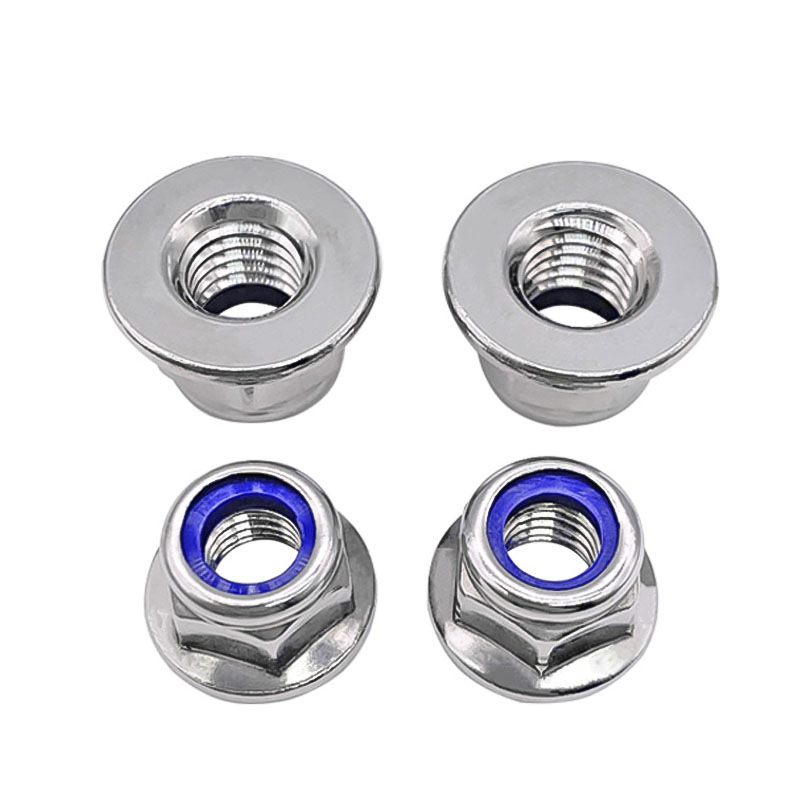

ASME B18.16.6:2017 Hex Flange Nylon Insert Lock Nut

ASME B18.16.6:2017 Hex Flange Nylon Insert Lock Nut combines a flange bearing surface with nylon insert locking performance. The flange helps distribute clamping force, while the nylon insert provides prevailing torque to maintain thread engagement.

This product is suitable for vehicles, construction machinery, sheet-metal brackets, conveying equipment, and assemblies exposed to vibration. The integrated structure can reduce washer use and simplify the assembly process, making it practical for volume production.

Materials, strength levels, and surface coatings can be selected according to application conditions to balance rust protection, locking performance, and long-term reliability.

Contact Us

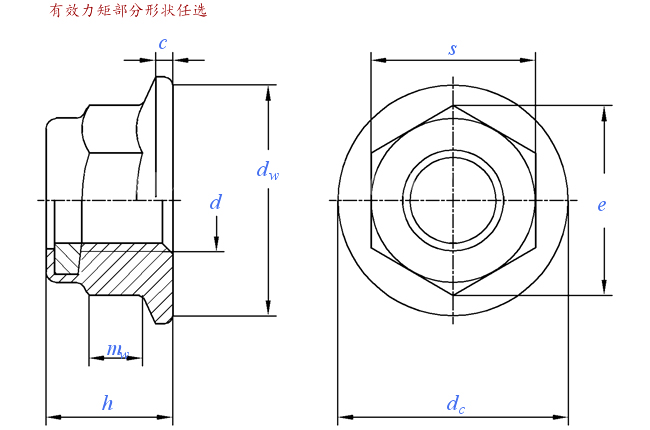

Dimensions unit: inch

Nominal diameter d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

d

0.25

0.3125

0.375

0.4375

0.5

0.5625

0.625

0.75

PP

 Coarse teeth /UNC

20

18

16

14

13

12

11

10

Fine Teeth/UNF

28

24

24

20

20

18

18

16

s

Max.

0.4385

0.502

0.5645

0.6895

0.752

0.877

0.9395

1.127

Min.

0.428

0.489

0.551

0.675

0.736

0.861

0.922

1.088

e

Max.

0.505

0.577

0.65

0.794

0.866

1.01

1.083

1.299

Min.

0.488

0.557

0.628

0.768

0.84

0.982

1.051

1.24

h

Max.

0.3

0.365

0.425

0.495

0.555

0.625

0.69

0.825

mw

Min.

0.14

0.17

0.2

0.23

0.26

0.29

0.32

0.38

c

Min.

0.04

0.05

0.06

0.07

0.08

0.09

0.1

0.11

dc

Max.

0.56

0.68

0.81

0.93

1.07

1.19

1.33

1.585

dw

Min.

0.484

0.602

0.73

0.846

0.982

1.101

1.23

1.472
