ASME B18.3 (T8):2012 Countersunk Head Hex Socket Screw
ASME B18.3 (T8):2012 Countersunk Head Hex Socket Screw combines a hex socket drive with a countersunk head, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The ASME standard framework suits projects requiring U.S.-standard compatibility and engineering applicability, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.
From an assembly perspective, the internal hex socket provides deeper tool engagement, enabling higher assembly torque in compact spaces while reducing external head interference. At the same time, the tapered head seats into a prepared countersink, allowing the screw to sit flush or nearly flush with the surface, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.
It works well on flat surfaces, rails, covers, module housings, and areas where snagging or interference should be avoided. For exposed equipment positions, head forming quality, recess integrity, edge chamfering, and coating uniformity can be emphasized so fastening performance aligns with the finished product appearance.

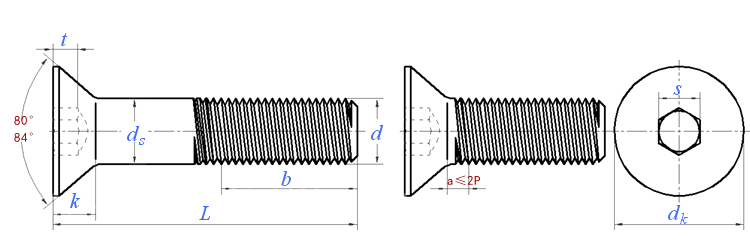

Dimensions unit: inch
|
Nominal diameter d |
0# |
1# |
2# |
3# |
4# |
5# |
6# |
8# |
10# |
12# |
1/4 |
5/16 |
|
|
d |
Nominal diameter |
0.06 |
0.073 |
0.086 |
0.099 |
0.112 |
0.125 |
0.138 |
0.164 |
0.19 |
0.2158 |
0.25 |
0.3125 |
|
PP |
Coarse teeth/UNC |
- |
64 |
56 |
48 |
40 |
40 |
32 |
32 |
24 |
24 |
20 |
18 |
|
Fine Teeth/UNF |
80 |
72 |
64 |
56 |
48 |
44 |
40 |
36 |
32 |
28 |
28 |
24 |
|
|
Extra-Fine Thread/UNEF |
- |
- |
- |
- |
- |
- |
- |
- |
- |
32 |
32 |
32 |
|
|
ds |
Max. |
0.06 |
0.073 |
0.086 |
0.099 |
0.112 |
0.125 |
0.138 |
0.164 |
0.19 |
0.2158 |
0.25 |
0.3125 |
|
Min. |
0.0568 |
0.0695 |
0.0822 |
0.0949 |
0.1075 |
0.1202 |
0.1329 |
0.1585 |
0.184 |
0.2102 |
0.2435 |
0.3053 |
|
|
dk |
Max. |
0.138 |
0.168 |
0.197 |
0.226 |
0.255 |
0.281 |
0.307 |
0.359 |
0.411 |
0.45 |
0.531 |
0.656 |
|
Min. |
0.117 |
0.143 |
0.168 |
0.193 |
0.218 |
0.24 |
0.263 |
0.311 |
0.359 |
0.41 |
0.48 |
0.6 |
|
|
k |
Reference |
0.044 |
0.054 |
0.064 |
0.073 |
0.083 |
0.09 |
0.097 |
0.112 |
0.127 |
0.135 |
0.161 |
0.198 |
|
s |
Nominal |
- |
- |
- |
1/16 |
1/16 |
5/64 |
5/64 |
3/32 |
1/8 |
1/8 |
5/32 |
3/16 |
|
Nominal |
0.035 |
0.05 |
0.05 |
0.062 |
0.062 |
0.078 |
0.078 |
0.094 |
0.125 |
0.125 |
0.156 |
0.188 |
|
|
t |
Min. |
0.025 |
0.031 |
0.038 |
0.044 |
0.055 |
0.061 |
0.066 |
0.076 |
0.087 |
0.094 |
0.111 |
0.135 |
|
b |
Min. |
0.5 |
0.62 |
0.62 |
0.62 |
0.75 |
0.75 |
0.75 |
0.88 |
0.88 |
0.88 |
1 |
1.12 |
|
α |
±2° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
|
Nominal diameter d |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
1-1/8 |
1-1/4 |
1-3/8 |
1-1/2 |
|
|
d |
Nominal diameter |
0.375 |
0.4375 |
0.5 |
0.625 |
0.75 |
0.875 |
1 |
1.125 |
1.25 |
1.375 |
1.5 |
|
PP |
Coarse teeth/UNC |
16 |
14 |
13 |
11 |
10 |
9 |
8 |
7 |
7 |
6 |
6 |
|
Fine Teeth/UNF |
24 |
20 |
20 |
18 |
16 |
14 |
12 |
12 |
12 |
12 |
12 |
|
|
Extra-Fine Thread/UNEF |
32 |
28 |
28 |
24 |
20 |
20 |
20 |
18 |
18 |
18 |
18 |
|
|
ds |
Max. |
0.375 |
0.4375 |
0.5 |
0.625 |
0.75 |
0.875 |
1 |
1.125 |
1.25 |
1.375 |
1.5 |
|
Min. |
0.3678 |
0.4294 |
0.4919 |
0.6163 |
0.7406 |
0.8647 |
0.9886 |
1.1086 |
1.2336 |
1.3568 |
1.4818 |
|
|
dk |
Max. |
0.781 |
0.844 |
0.938 |
1.188 |
1.438 |
1.688 |
1.938 |
2.188 |
2.438 |
2.688 |
2.938 |
|
Min. |
0.72 |
0.781 |
0.872 |
1.112 |
1.355 |
1.604 |
1.841 |
2.079 |
2.316 |
2.553 |
2.791 |
|
|
k |
Reference |
0.234 |
0.234 |
0.251 |
0.324 |
0.396 |
0.468 |
0.54 |
0.611 |
0.683 |
0.755 |
0.827 |
|
s |
Nominal |
7/32 |
1/4 |
5/16 |
3/8 |
1/2 |
9/16 |
5/8 |
3/4 |
7/8 |
7/8 |
1 |
|
Nominal |
0.219 |
0.25 |
0.312 |
0.375 |
0.5 |
0.562 |
0.625 |
0.75 |
0.875 |
0.875 |
1 |
|
|
t |
Min. |
0.159 |
0.159 |
0.172 |
0.22 |
0.22 |
0.248 |
0.297 |
0.325 |
0.358 |
0.402 |
0.435 |
|
b |
Min. |
1.25 |
1.38 |
1.5 |
1.75 |
2 |
2.25 |
2.5 |
2.81 |
3.12 |
3.44 |
3.75 |
|
α |
±2° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
82° |
