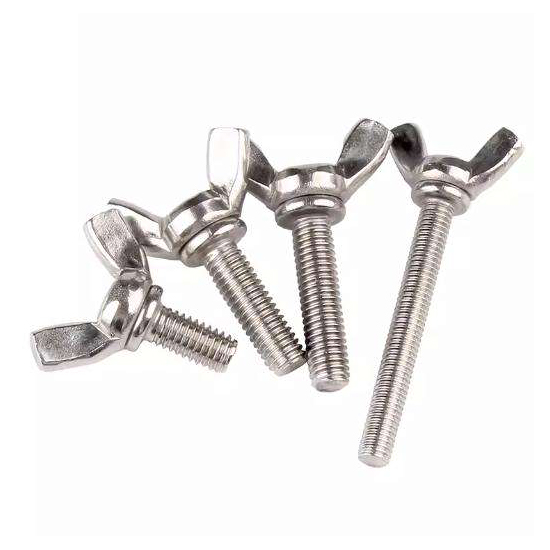

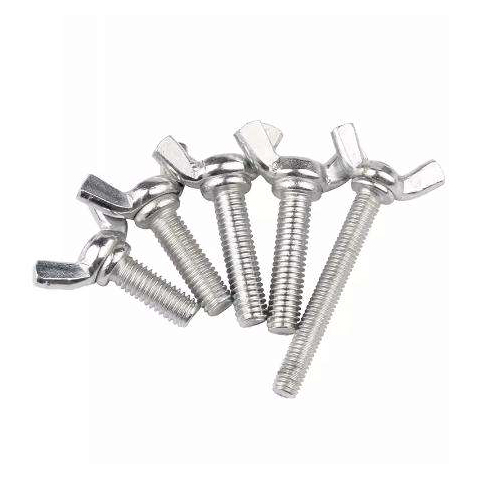

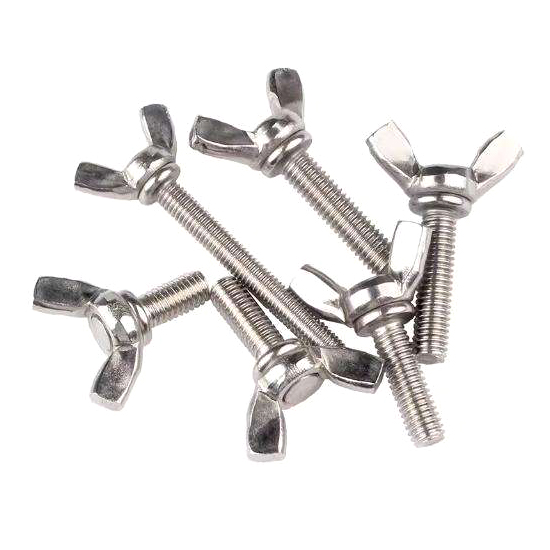

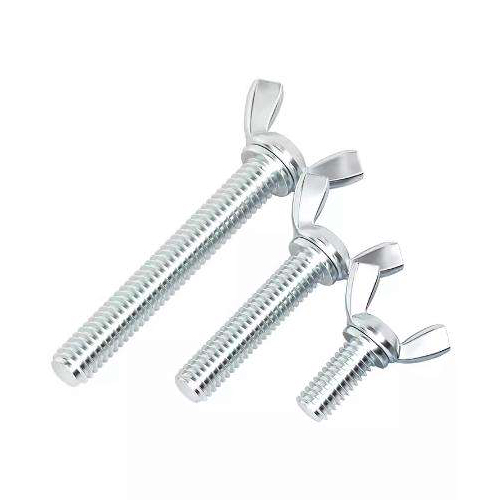

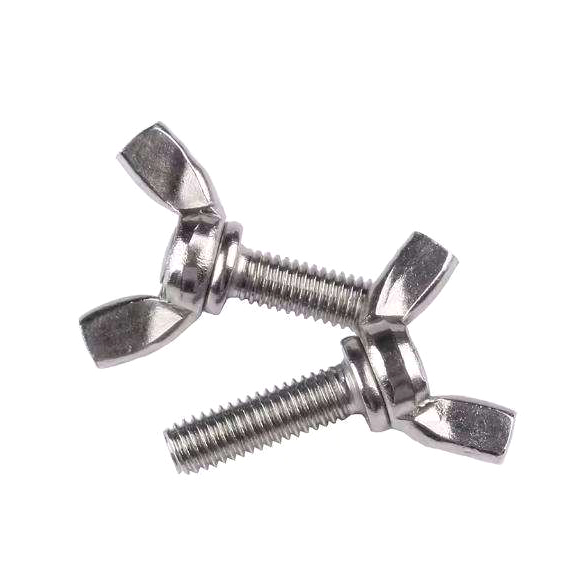

DIN 316:2016 Wing Screw

DIN 316:2016 Wing Screw uses a two-wing hand-tightening design, allowing tightening, loosening, and adjustment without special tools. It is suitable for connections requiring frequent disassembly, manual adjustment, or temporary fixing.

The wing shape provides a large finger contact area and allows the operator to apply force directly. Compared with ordinary machine screws, it is better suited for maintenance covers, fixture clamps, adjustable brackets, and inspection devices where operating convenience is important.

This product can be used in equipment guards, fixtures, instrument supports, light machinery, and display devices. Steel, stainless steel, or plated versions can be selected to balance appearance, corrosion resistance, and repeated-use life.

Contact Us

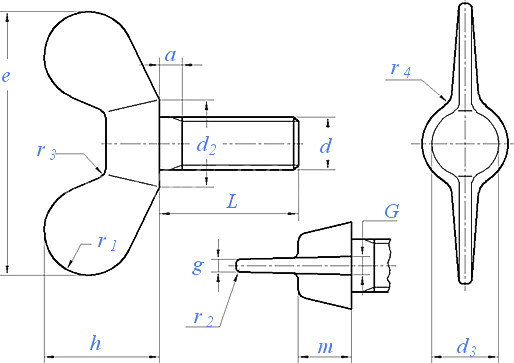

Dimensions unit: inch

Thread size d

M4

M5

M6

M8

M10

M12

M16

M20

M24

P

Pitch

0.7

0.8

1

1.25

1.5

1.75

2

2.5

3

d2

Max.

8

11

13

16

20

23

29

35

44

Min.

6

8

10

13

17

20

26

32

41

d3

Max.

7

9

11

12.5

16.5

19.5

23

29

37.5

Min.

5.5

7.5

9

10.5

14.5

17.5

21

27

35

e

Max.

20

26

33

39

51

65

73

90

110

Min.

18

24

30

36

48

62

70

86

106

g

Max.

1.9

2.3

2.3

2.8

4.4

4.9

6.4

6.9

9.4

Min.

1.1

1.5

1.5

2

3.6

4.1

5.6

6.1

8.6

G

Max.

2.3

2.8

3.3

4.4

5.4

6.4

7.5

8

10.5

Min.

1.7

2.3

2.7

3.6

4.6

5.6

6.5

7

9.5

h

Max.

10.5

13

17

20

25

33.5

37.5

46.5

56.5

Min.

8.5

11

15

18

23

31

35

44

53.5

m

Max.

4.6

6.5

8

10

12

14

17

21

25

Min.

3.2

4

5

6.5

8

10

13

16

20

a

Max.

2.1

2.4

3

4

4.5

5.3

6

7.5

9

r1

≈

3

4

5

6

8

10

11

14

18

r2

≈

/

/

/

/

1

1

1.2

1.6

2.5

r3

≈

0.5

1

1

1

1.2

1.2

1.6

2

2.5

r4

≈

2

2.5

3

3

5

6

7

8

9
