Home / Products / Screws / Drilling Screws / DIN 7504 (L):1995 Slotted Self-Drilling Tapping Screw

DIN 7504 (L):1995 Slotted Self-Drilling Tapping Screw

DIN 7504 (L):1995 Slotted Self-Drilling Tapping Screw features a slotted hex washer head, drill point, and tapping thread, making it suitable for metal connections requiring higher external-drive torque and a larger bearing surface.

The hex washer head helps distribute clamping force, the slot provides an auxiliary drive option, and the self-drilling tapping design supports direct field installation. This structure supports efficient assembly while balancing joint stability, load distribution, and convenient maintenance, making it practical for standardized purchasing and volume production.

This product can be used in roofing sheets, cladding systems, ventilation fittings, metal brackets, and outdoor mounting parts. Sealing washers, anti-corrosion coatings, and different drill point lengths can be selected to meet requirements for corrosion protection, wear resistance, assembly efficiency, and long-term reliability.

Contact Us
PREV：JIS B 1124:2021 Oval Countersunk Head Phillips Self-Drilling Tapping Screw NEXT：DIN 7513 (A):2016 Hex Head Thread Cutting Screw

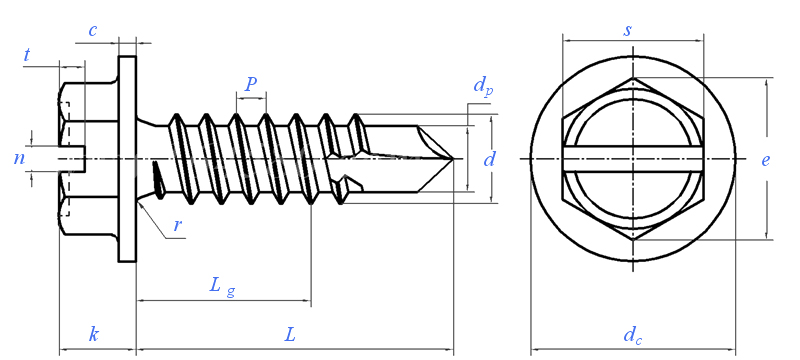

Dimensions unit: inch

Thread size

ST2.9

ST3.5

(ST3.9)

ST4.2

ST4.8

ST5.5

ST6.3

P

Pitch

1.1

1.3

1.3

1.4

1.6

1.8

1.8

c

Min.

0.4

0.6

0.6

0.8

0.9

1

1

dc

Max.

6.3

8.3

8.3

8.8

10.5

11

13.5

Min.

5.8

7.6

7.6

8.1

9.8

10

12.2

e

Min.

4.28

5.96

5.96

7.59

8.71

8.71

10.95

k

Max.

2.8

3.4

3.4

4.1

4.3

5.4

5.9

Min.

2.5

3

3

3.6

3.8

4.8

5.3

r

Max.

0.4

0.5

0.5

0.6

0.7

0.8

0.9

s

Max.

4

5.5

5.5

7

8

8

10

Min.

3.82

5.32

5.32

6.78

7.78

7.78

9.78

n

Nominal

0.8

1

1

1.2

1.2

1.6

1.6

Min.

0.86

1.06

1.06

1.26

1.26

1.66

1.66

Max.

1

1.2

1.2

1.51

1.51

1.91

1.91

t

Min.

1

1.2

1.2

1.44

1.52

1.92

2.12

dp

2.3

2.8

3.1

3.6

4.1

4.8

5.8

Drilling range (plate thickness)

0.7~1.9

0.7~2.25

0.7~2.4

1.75~3

1.75~4.4

1.75~5.25

2~6

Lg (Min)

-

-

-

-

-

-

-
