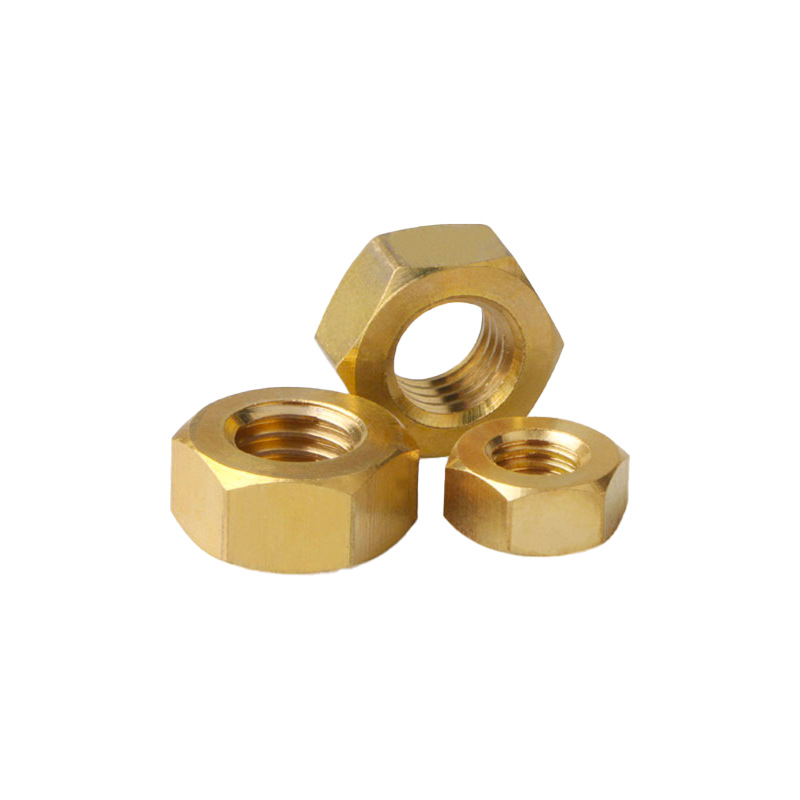

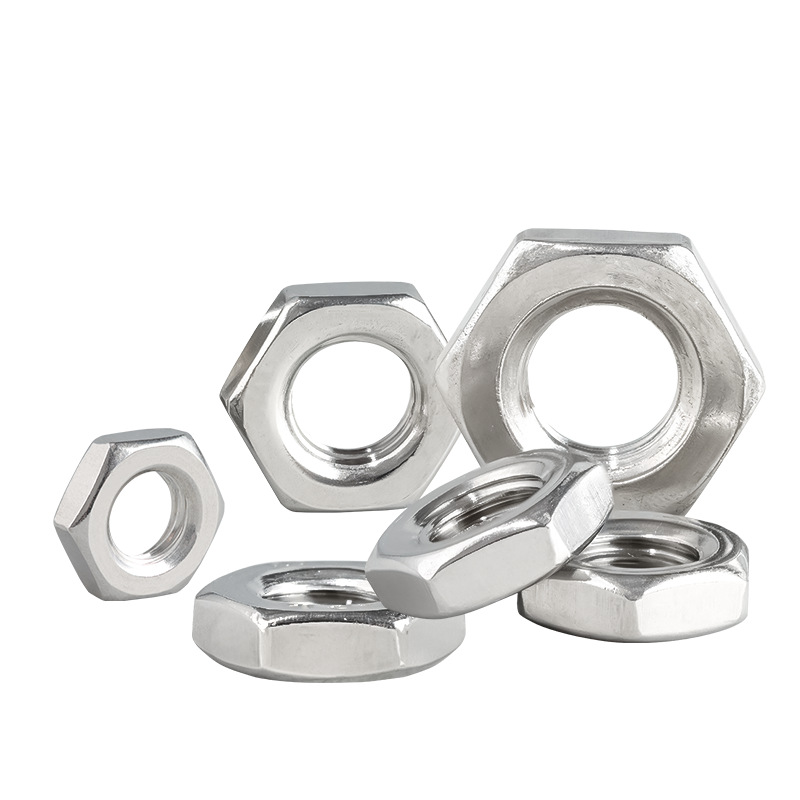

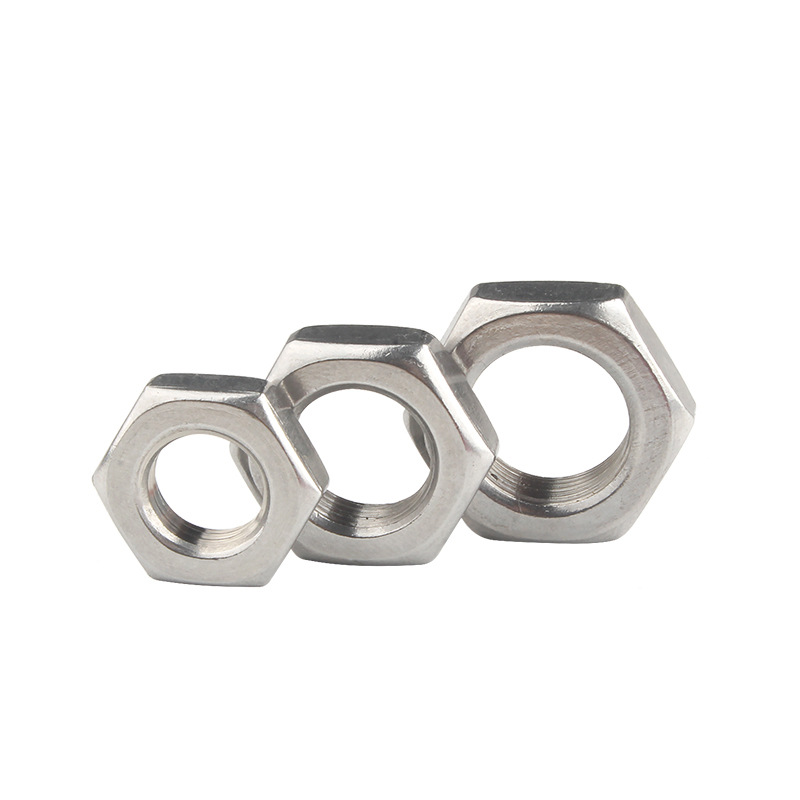

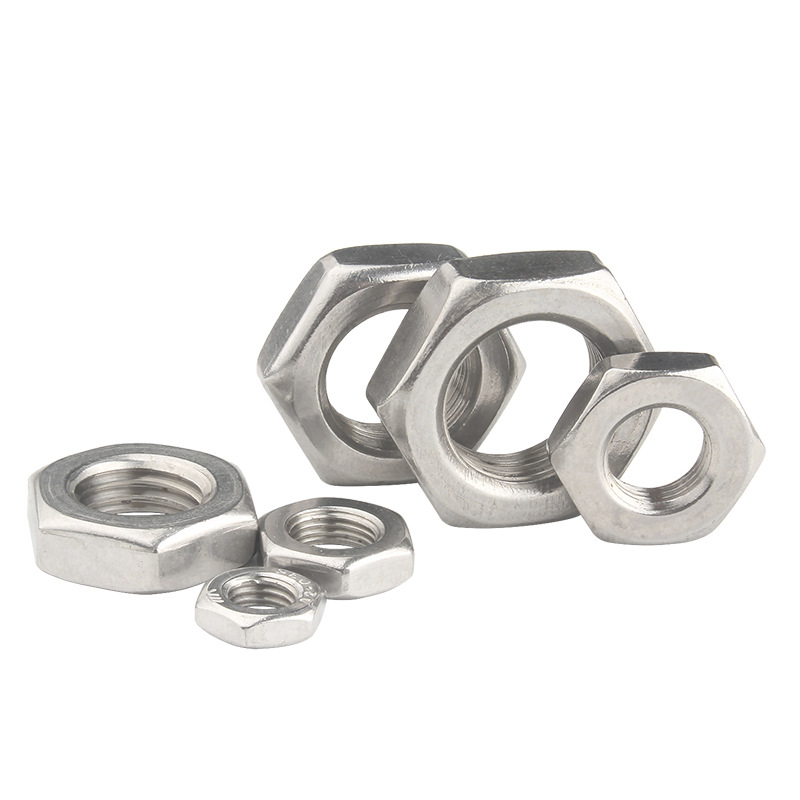

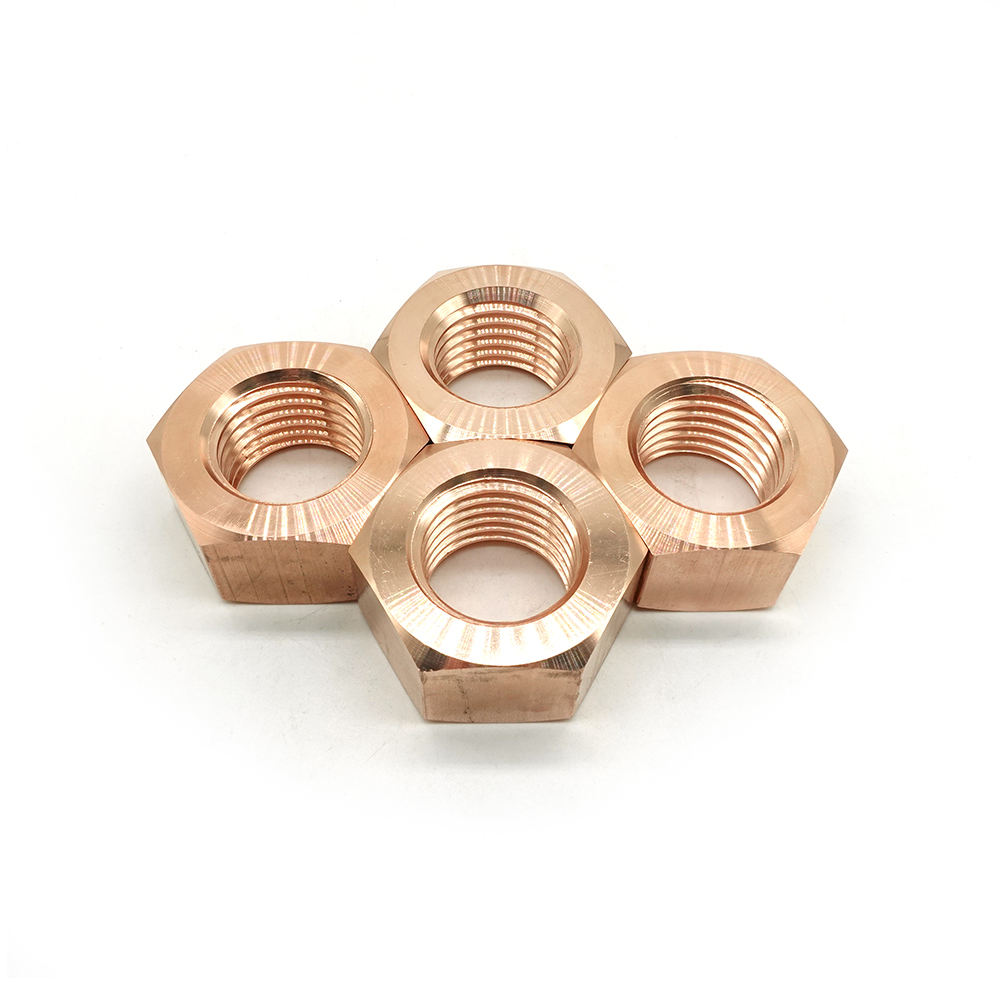

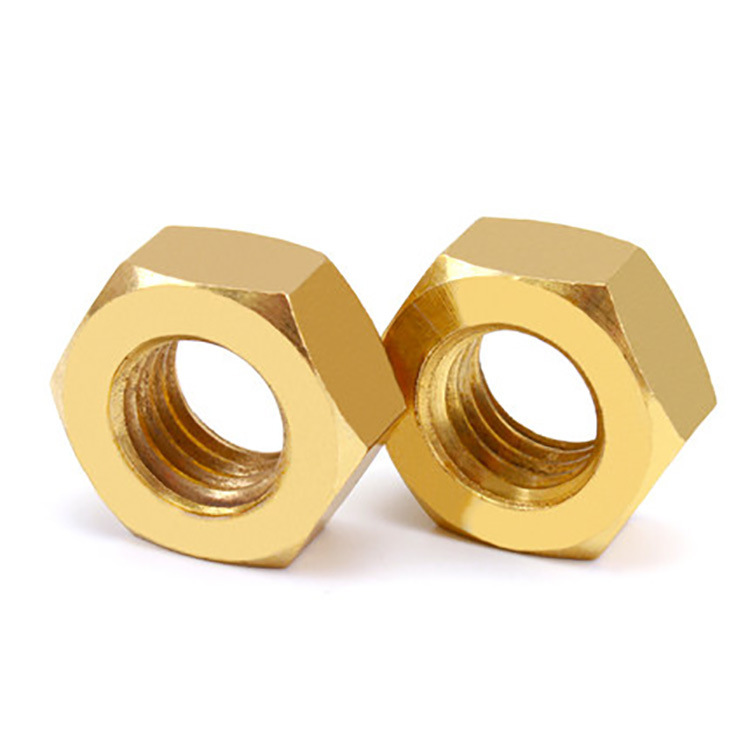

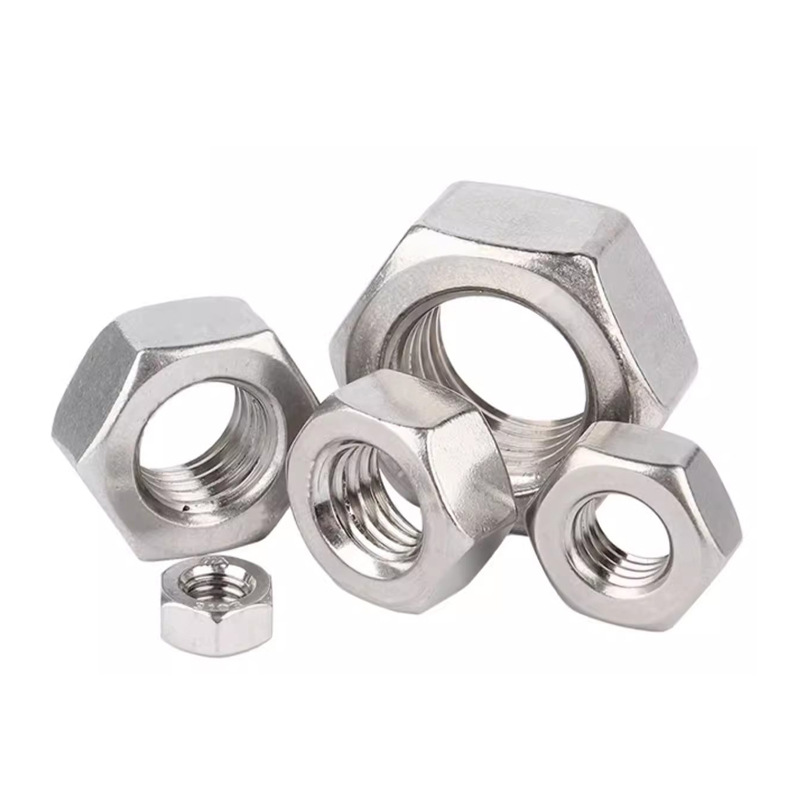

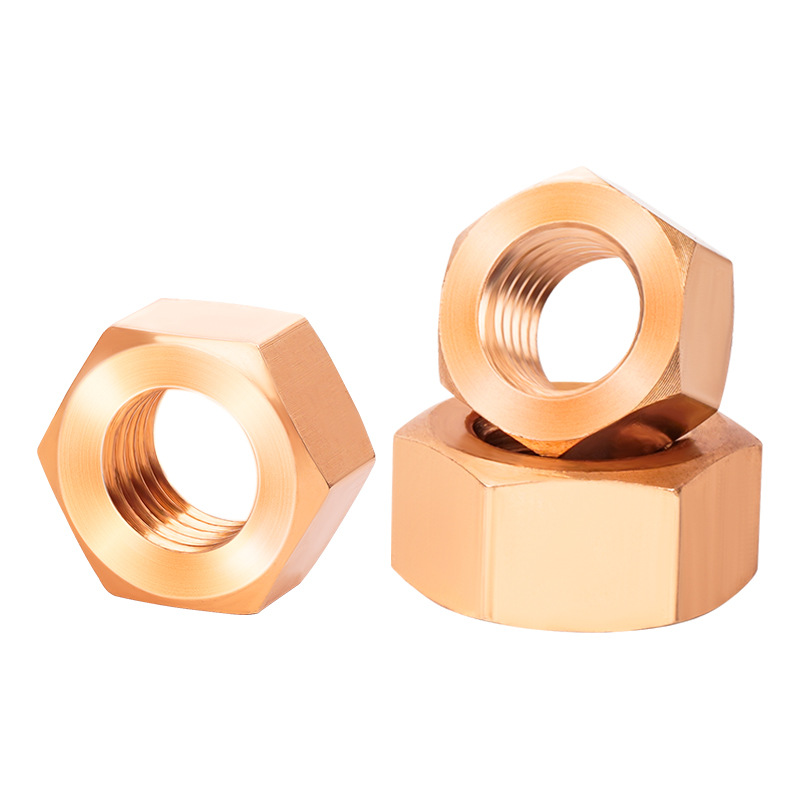

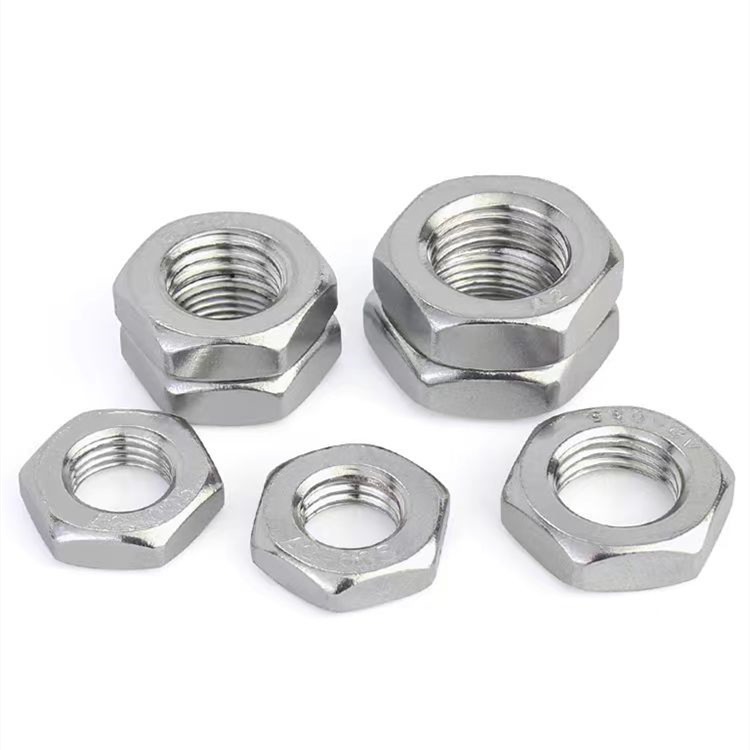

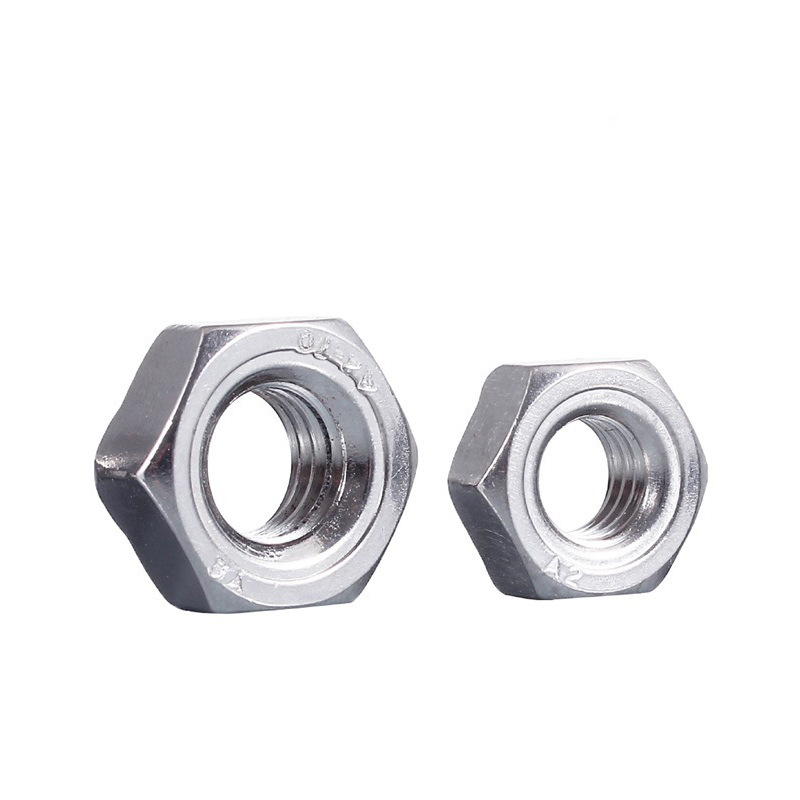

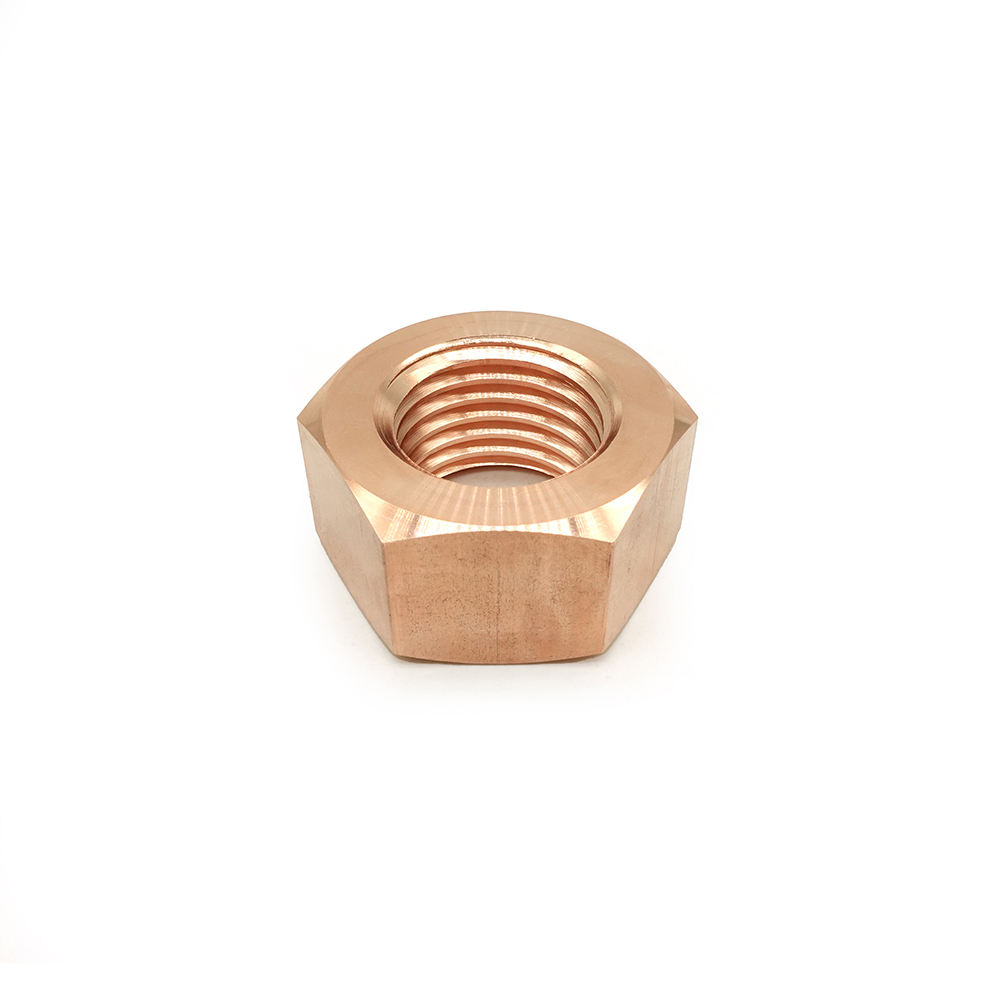

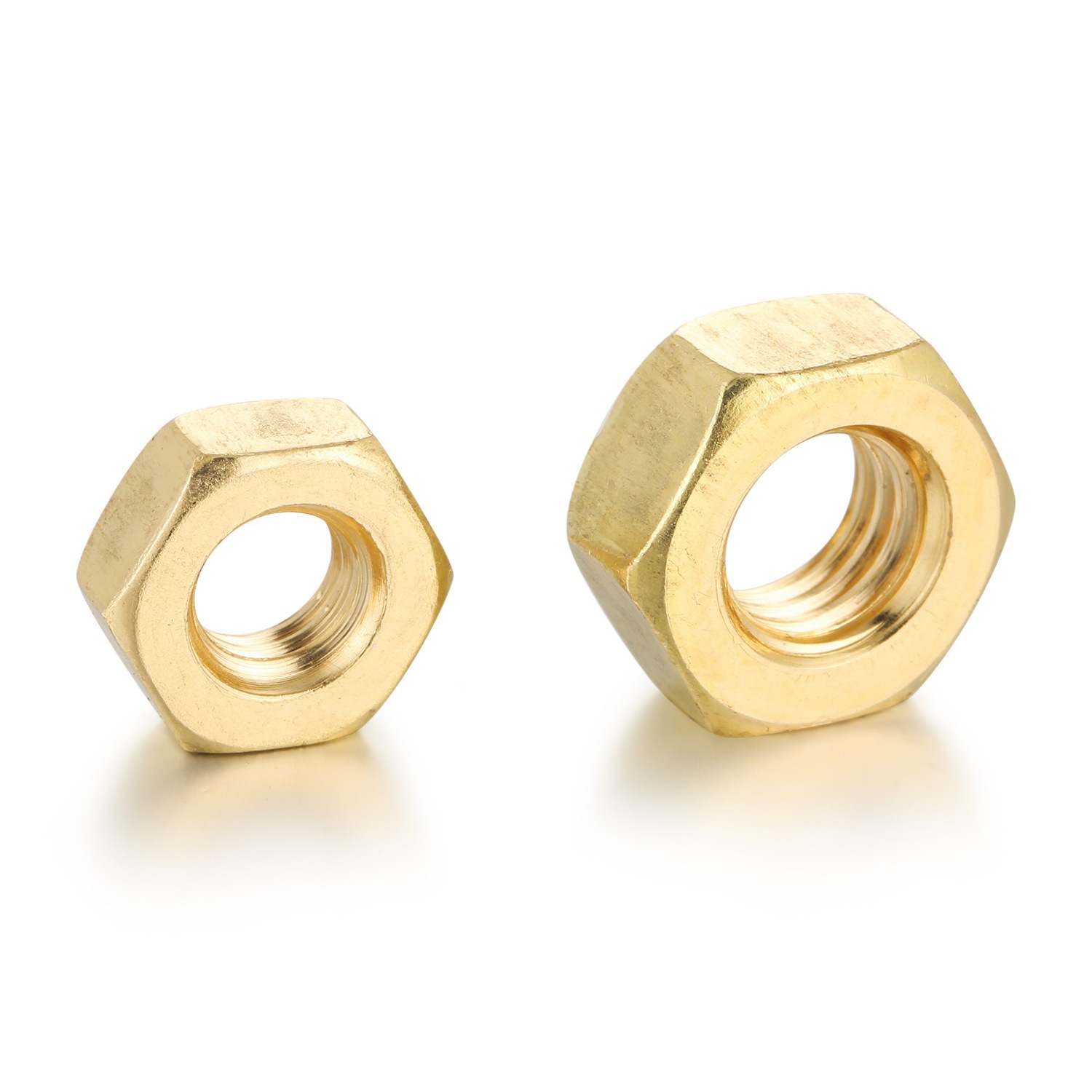

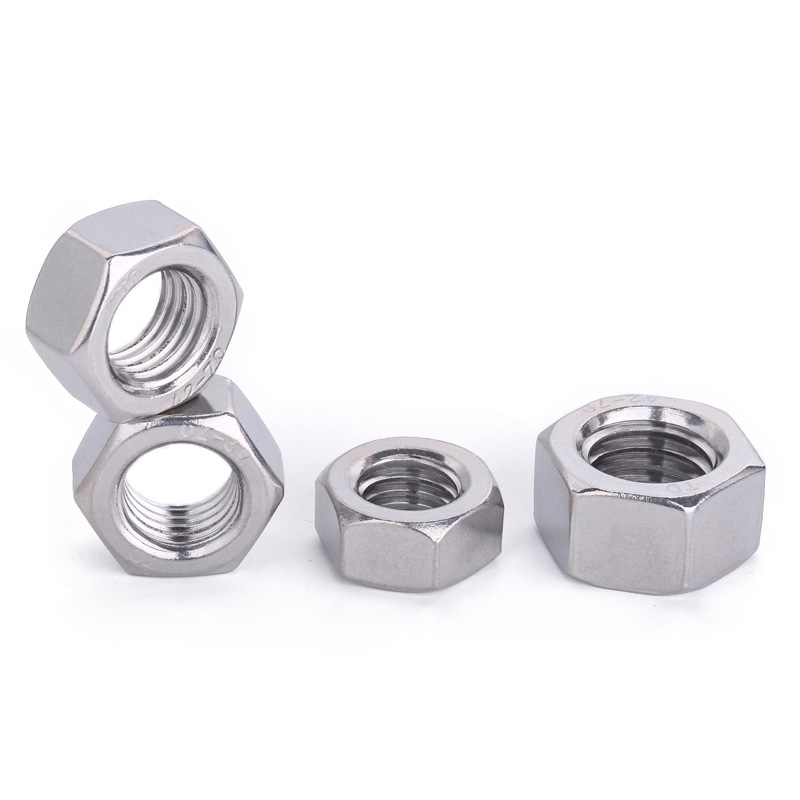

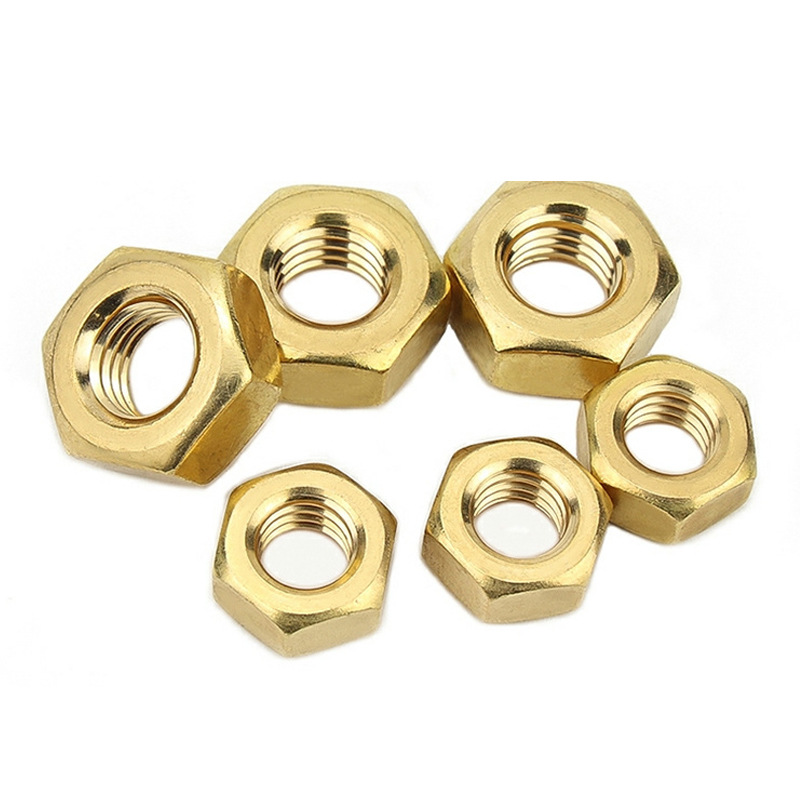

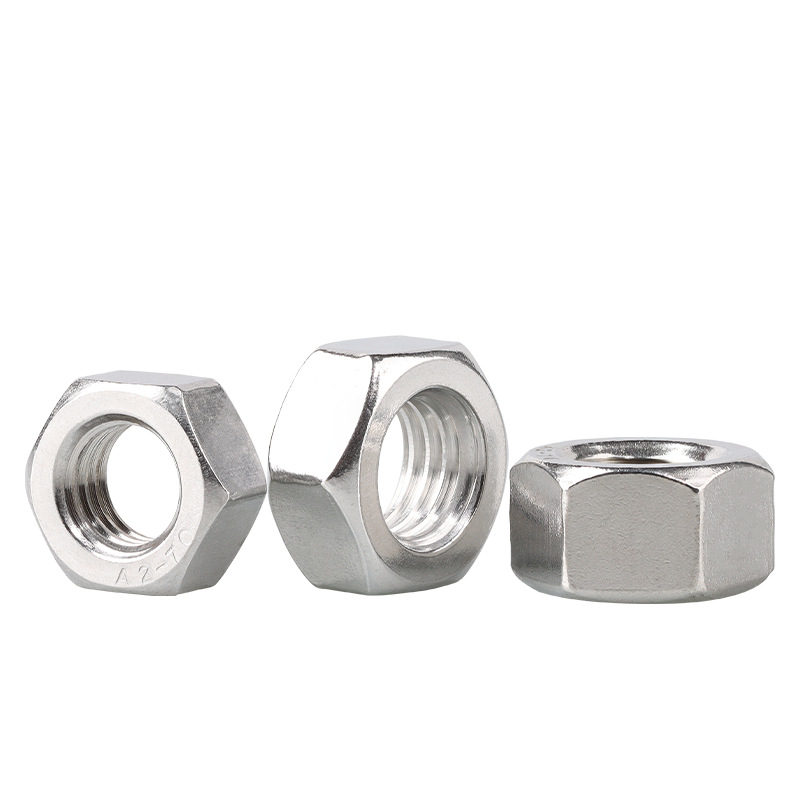

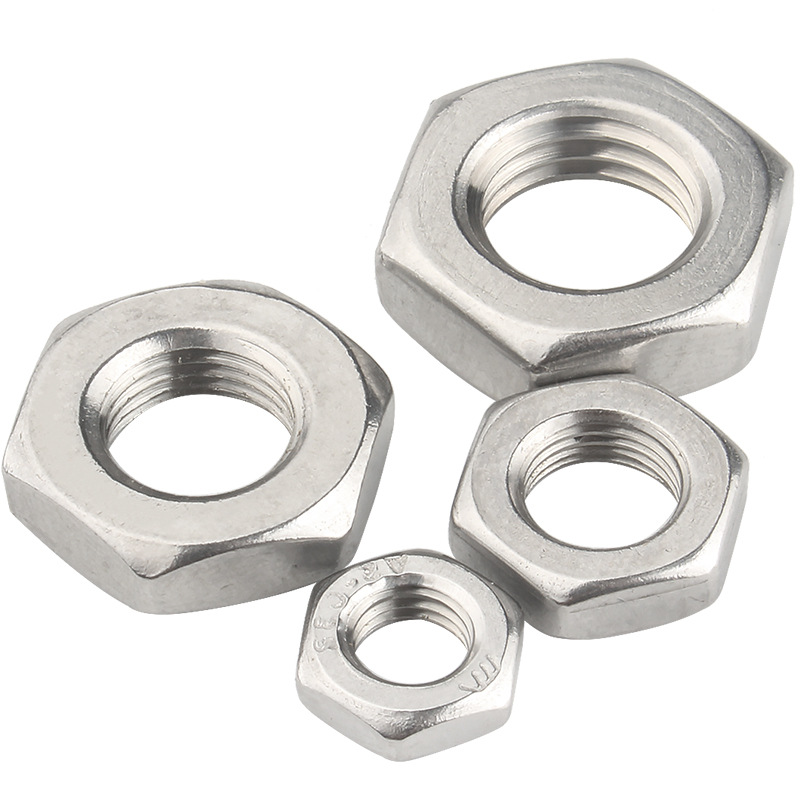

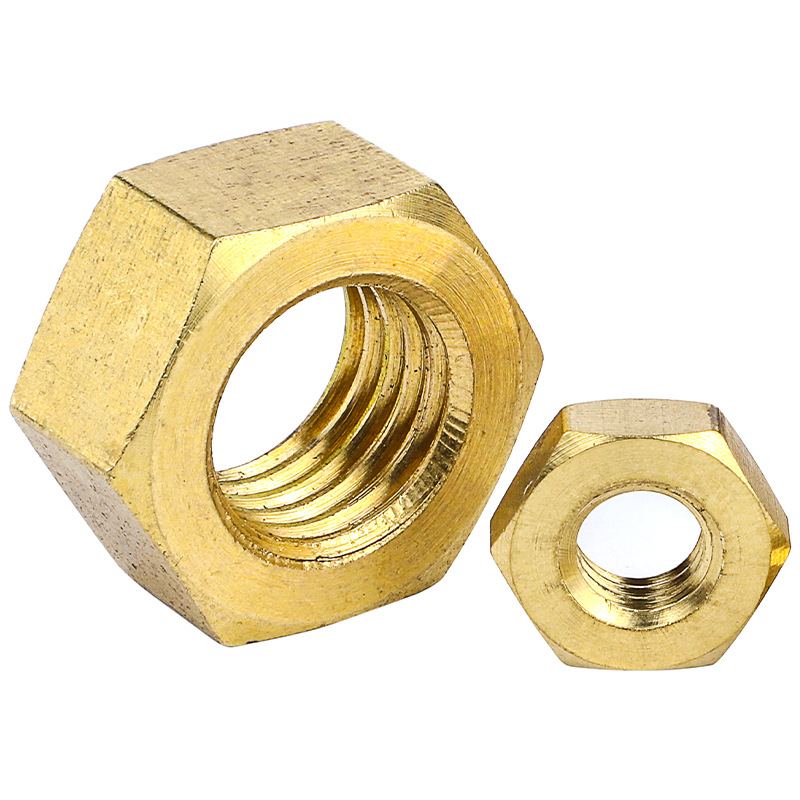

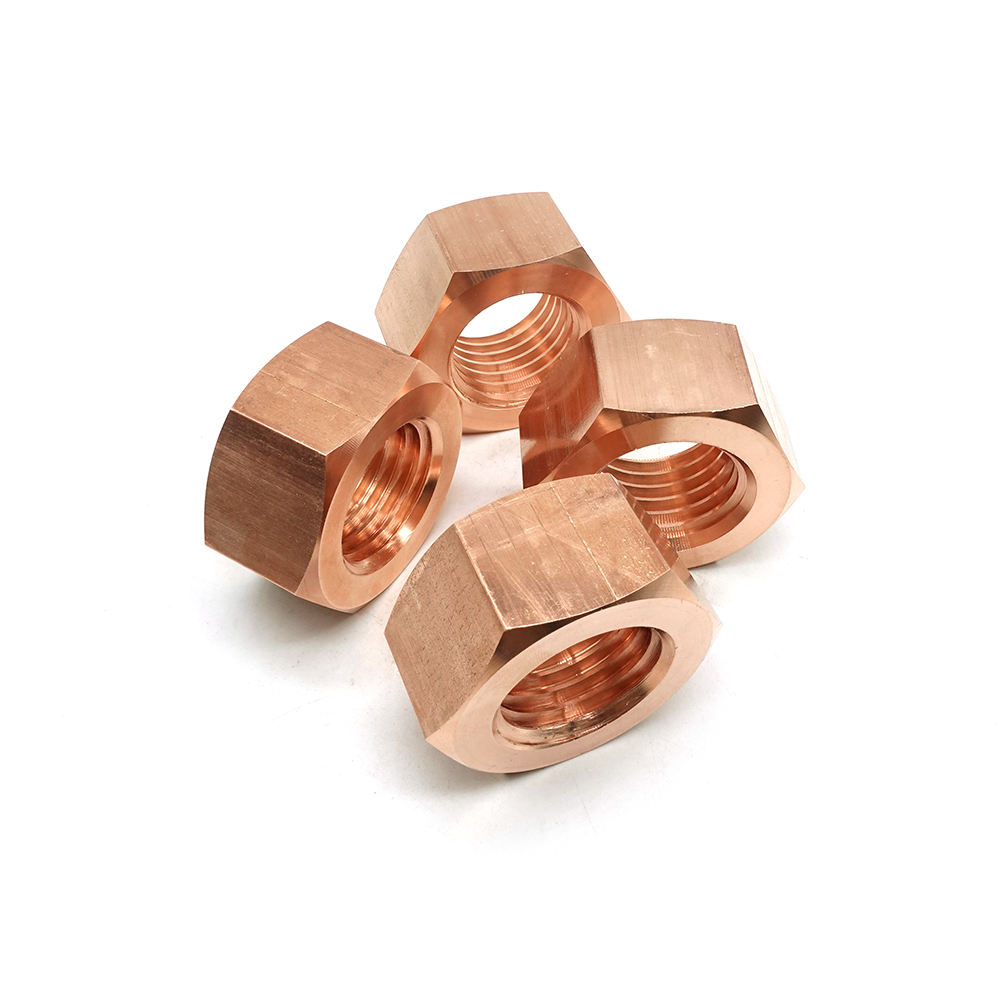

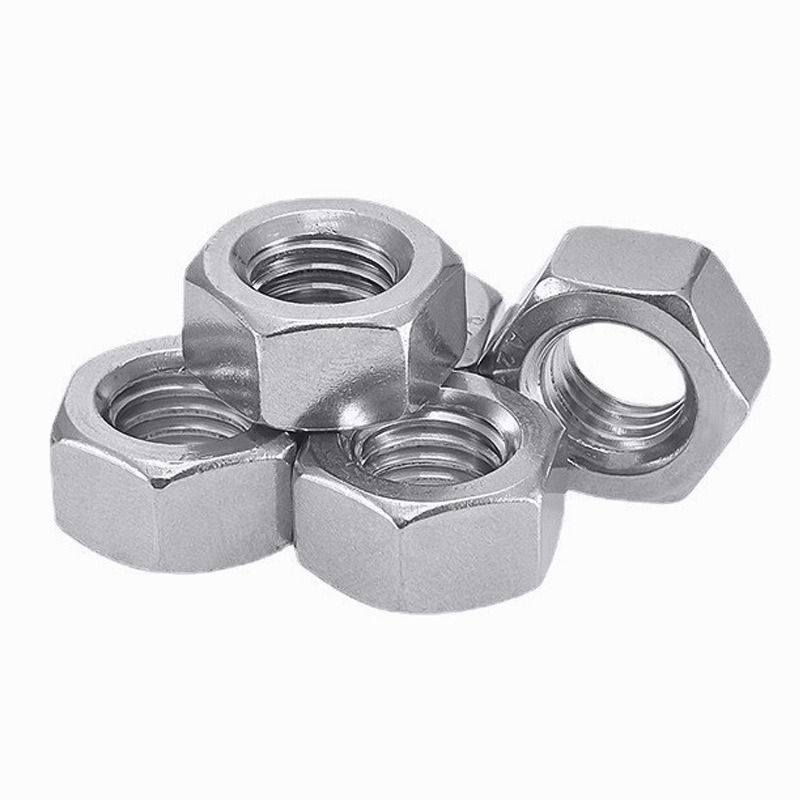

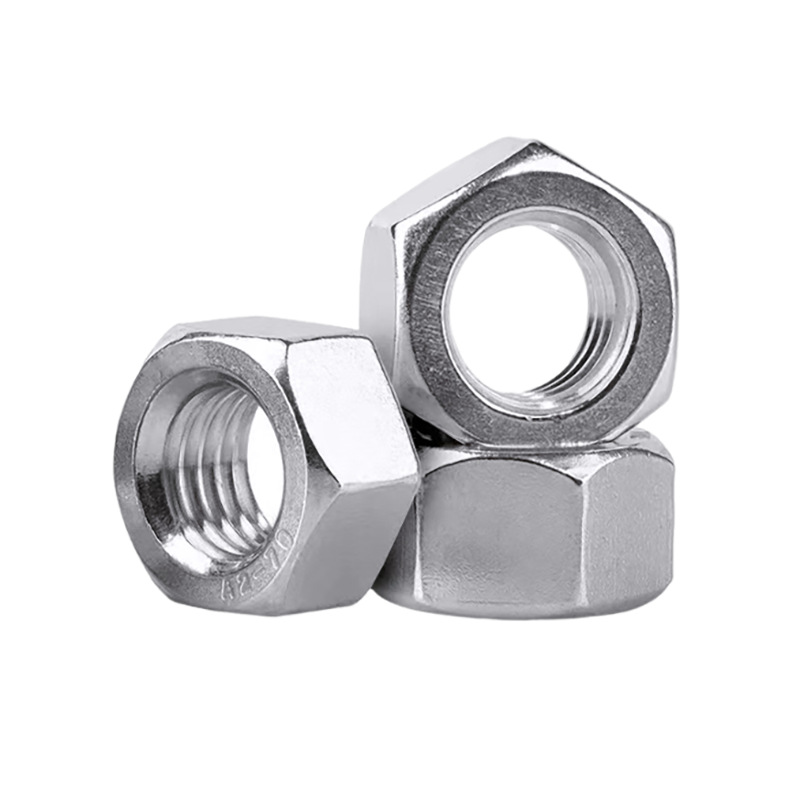

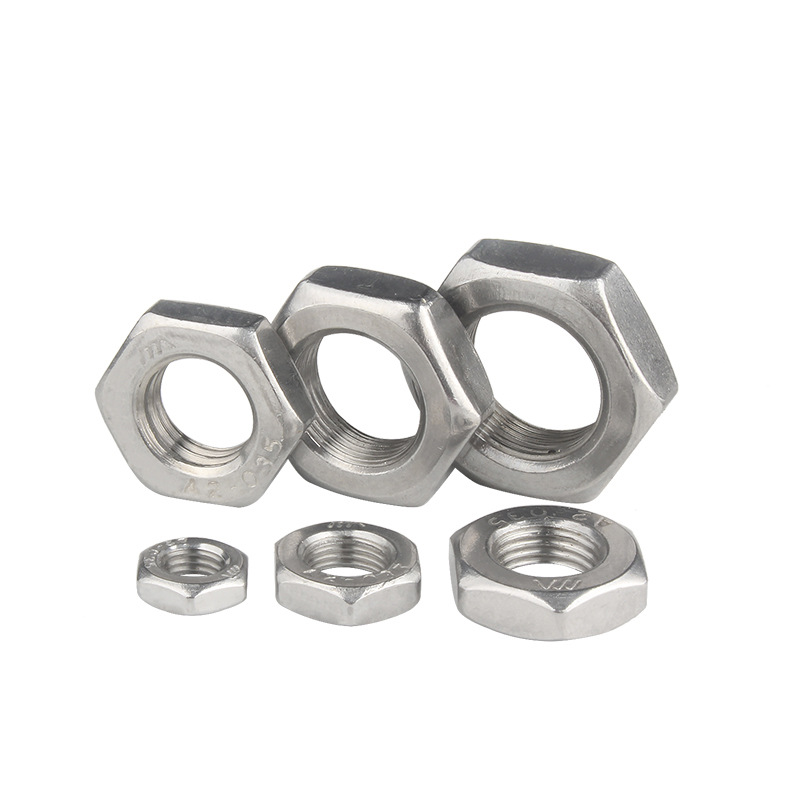

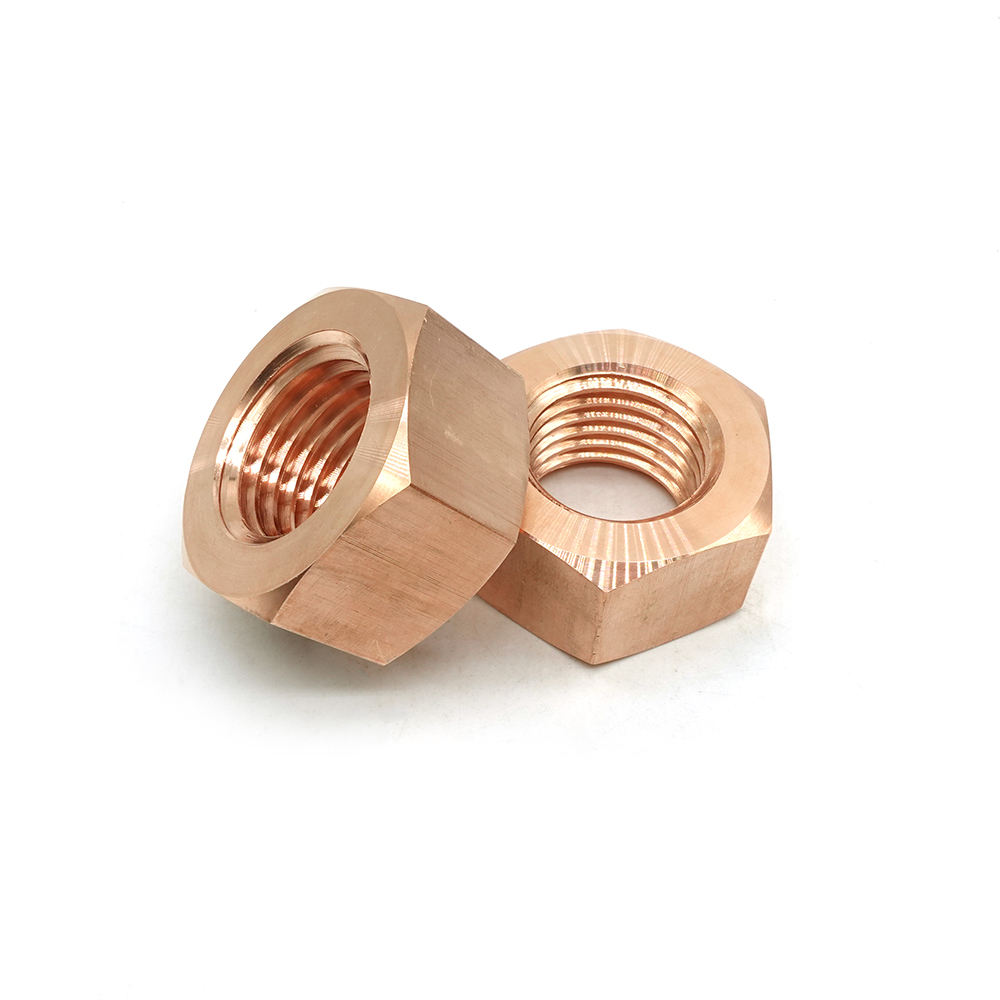

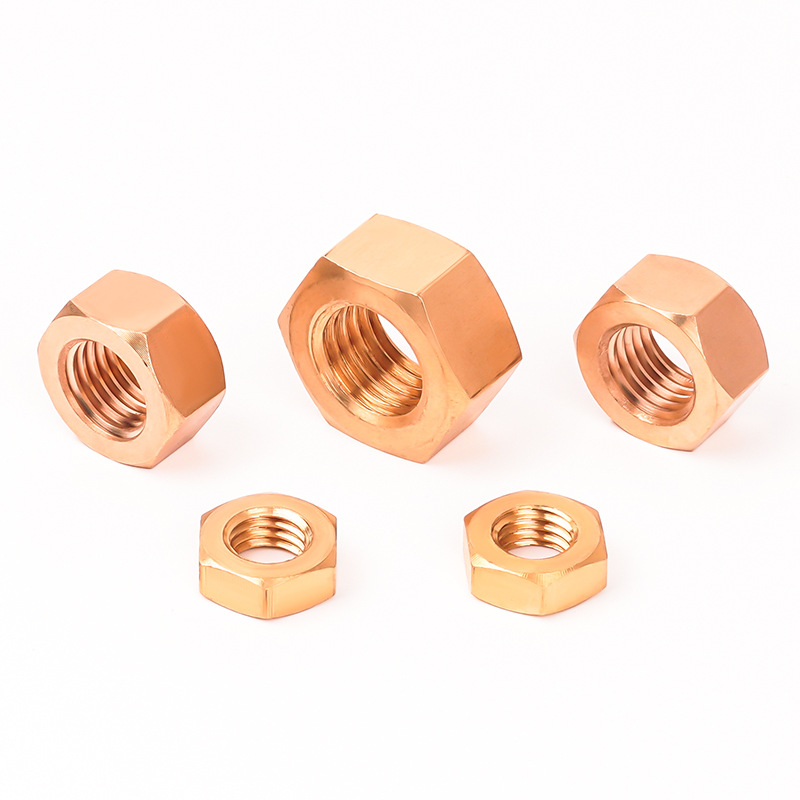

DIN 934:1987 Coarse Thread Fine Thread Metric Hex Nut

DIN 934:1987 Metric Hex Nut covers both coarse and fine thread options and is one of the most widely used standard nuts for general mechanical fastening. The hex profile allows easy wrench engagement and pairs with bolts, studs, and threaded rods to form removable threaded joints.

Coarse threads support efficient assembly for standard connections, while fine threads offer advantages in adjustment precision, resistance to loosening, and use with thinner components. This nut is suitable for machinery manufacturing, equipment installation, steel structures, vehicle maintenance, and hardware assembly.

Different strength classes, materials, and surface finishes can be selected according to service conditions to meet requirements for corrosion protection, appearance consistency, and stable mass assembly.

Contact Us

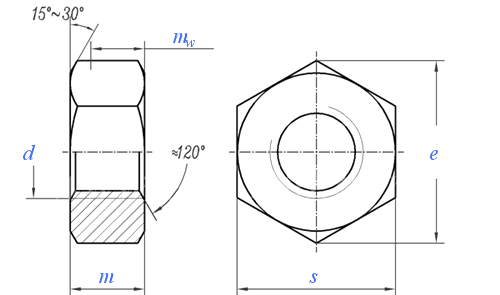

Dimensions unit: mm

Thread size  M1 M1.2 M1.4 M1.6 (M1.7) M2 (M2.3) M2.5 (M2.6) M3 (M3.5) M4 M5 M6 (M7) M8
d
P Pitch Coarse teeth  0.25 0.25 0.3 0.35 0.35 0.4 0.45 0.45 0.45 0.5 0.6 0.7 0.8 1 1 1.25
Fine Teeth1 / / / / / / / / / / / / / / / 1
Fine Teeth2 / / / / / / / / / / / / / / / /
m Max.=Nominal 0.8 1 1.2 1.3 1.4 1.6 1.8 2 2 2.4 2.8 3.2 4 5 5.5 6.5
Min. 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.75 1.75 2.15 2.55 2.9 3.7 4.7 5.2 6.14
mw Min. 0.44 0.6 0.76 0.84 0.92 1.08 1.24 1.4 1.4 1.72 2.04 2.32 2.96 3.76 4.16 4.91
s Max.=Nominal 2.5 3 3 3.2 3.5 4 4.5 5 5 5.5 6 7 8 10 11 13
Min. 2.4 2.9 2.9 3.02 3.38 3.82 4.32 4.82 4.82 5.32 5.82 6.78 7.78 9.78 10.73 12.73
e ① Min. 2.71 3.28 3.28 3.41 3.82 4.32 4.88 5.45 5.45 6.01 6.58 7.66 8.79 11.05 12.12 14.38
* - - - - - - - - - - - - - - - -
 Weight per thousand pieces (steel)≈kg  0.03 0.054 0.063 0.076 0.1 0.142 0.2 0.28 0.72 0.384 0.514 0.81 1.23 2.5 3.12 5.2



Thread size  M10 M12 (M14) M16 (M18) M20 (M22) M24 (M27) M30 (M33) M36 (M39) M42 (M45) M48
d
P Pitch Coarse teeth  1.5 1.75 2 2 2.5 2.5 2.5 3 3 3.5 3.5 4 4 4.5 4.5 5
Fine Teeth1 1 1.5 1.5 1.5 1.5 2 1.5 2 2 2 2 3 3 3 3 3
Fine Teeth2 1.25 1.25 / / 2 1.5 2 / / / / / / / / /
m Max.=Nominal 8 10 11 13 15 16 18 19 22 24 26 29 31 34 36 38
Min. 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 20.7 22.7 24.7 27.4 29.4 32.4 34.4 36.4
mw Min. 6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16 16.56 18.16 19.76 21.92 23.52 25.9 27.5 29.1
s Max.=Nominal 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75
Min. 16.73 18.67 21.67 23.67 26.16 29.16 31 35 40 45 49 53.8 58.8 63.1 68.1 73.1
e ① Min. 18.9 21.1 24.49 26.75 29.56 32.95 35.03 39.55 45.2 50.85 55.37 60.79 66.44 71.3 76.95 82.6
* - - - - - - - - - - - - - - - -
 Weight per thousand pieces (steel)≈kg  11.6 17.3 25 33.3 49.4 64.4 79 110 165 223 288 393 502 652 800 977



Thread size  (M52) M56 (M60) M64 (M68) M72 (M76) M80 (M85) M90 M100 M110 M125 M140 M160
d
P Pitch Coarse teeth  5 5.5 5.5 6 6 / / / / / / / / / /
Fine Teeth1 3 4 4 4 / 6 6 6 6 6 6 6 6 6 6
Fine Teeth2 / / / / 4 4 4 4 4 4 4 4 4 / /
m Max.=Nominal 42 45 48 51 54 58 61 64 68 72 80 88 100 112 128
Min. 40.4 43.4 46.4 49.1 52.1 56.1 59.1 62.1 66.1 70.1 78.1 85.8 97.8 109.8 125.5
mw Min. 32.3 34.7 37.1 39.3 41.7 44.9 47.3 49.7 52.9 56.1 62.5 68.6 78.2 87.8 100
s Max.=Nominal 80 85 90 95 100 105 110 115 120 130 145 155 180 200 230
Min. 78.1 82.8 87.8 92.8 97.8 102.8 107.8 112.8 117.8 127.5 142.5 152.5 177.5 195.4 225.4
e ① Min. 88.25 93.56 99.21 104.86 110.51 116.16 121.81 127.46 133.11 144.08 161.02 172.32 200.57 220.8 254.7
* - - - - - - - - - - - 170 196 216 248
 Weight per thousand pieces (steel)≈kg  1220 1420 1690 1980 2300 2670 3040 3440 3930 4930 6820 8200 13000 17500 26500

① * In the case of size M110 or larger, the hexagonal edges may be rounded.

② This standard has been replaced by ISO 4032, ISO 8673 and ISO 8674

③ Material

a) Steel, performance grade: ≤M2.5: 6; M3~M39: 6,8,10; > M39: as per agreement. Standard DIN 267-4

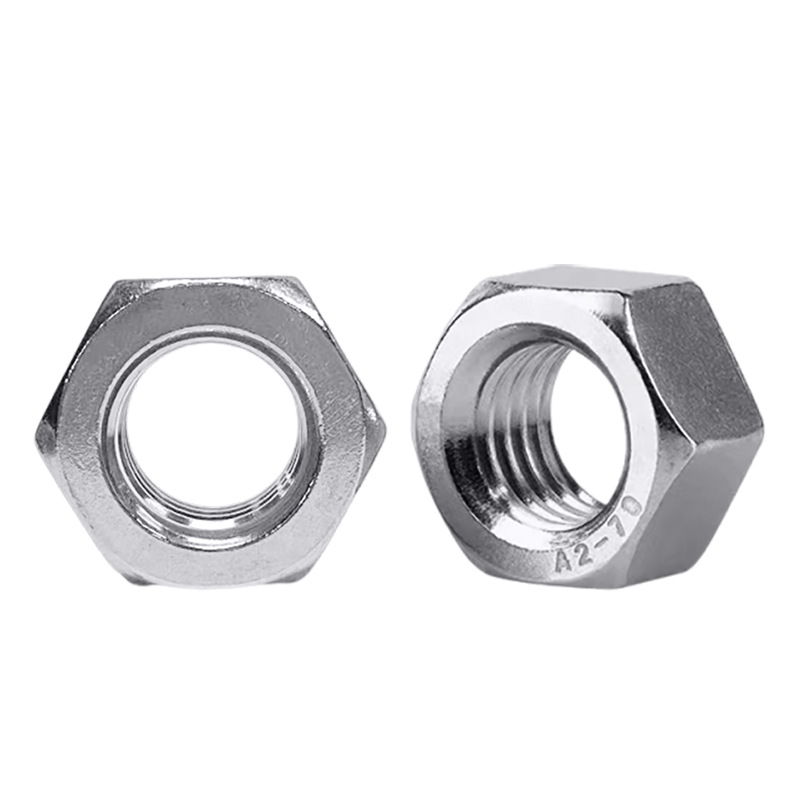

b) Stainless steel, performance grade: ≤M39: A2-70, A4-70; >M39: as per agreement. Standard DIN 267-11

c) Non-ferrous metals, performance level: as per agreement. Standard DIN 267-18
