DIN 508:2002 T-Slot Nut

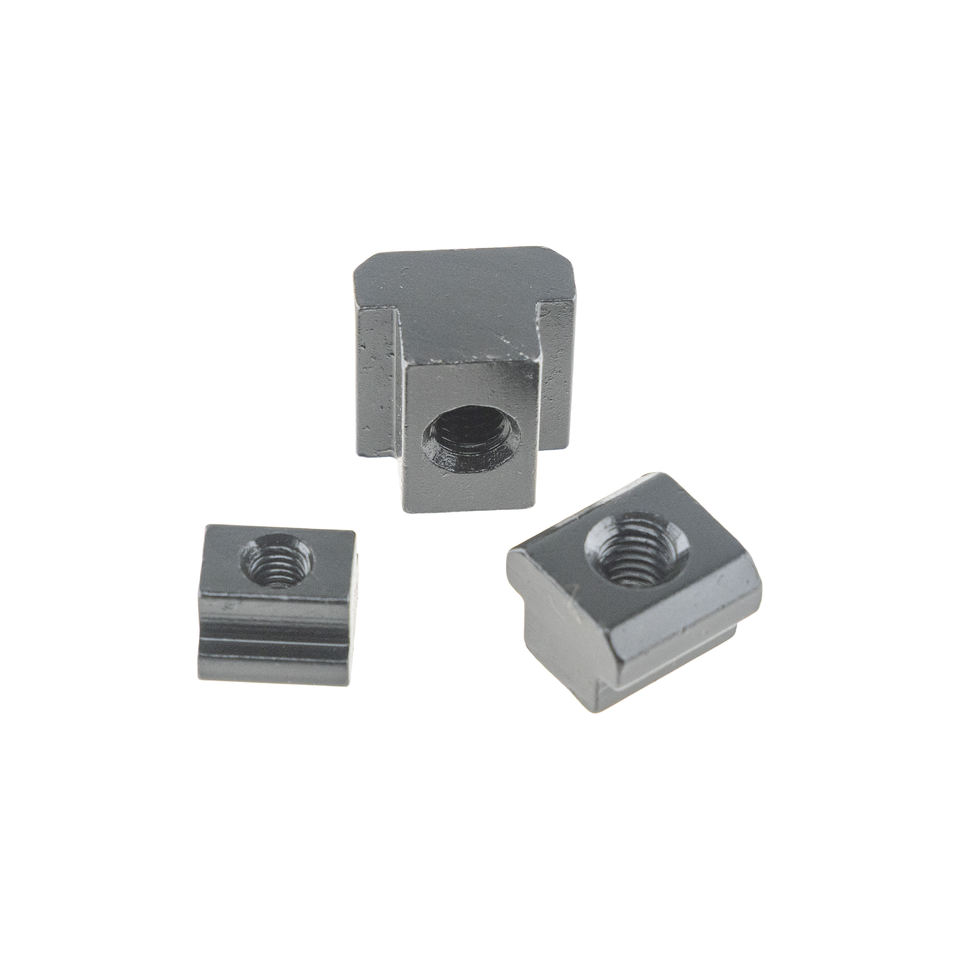

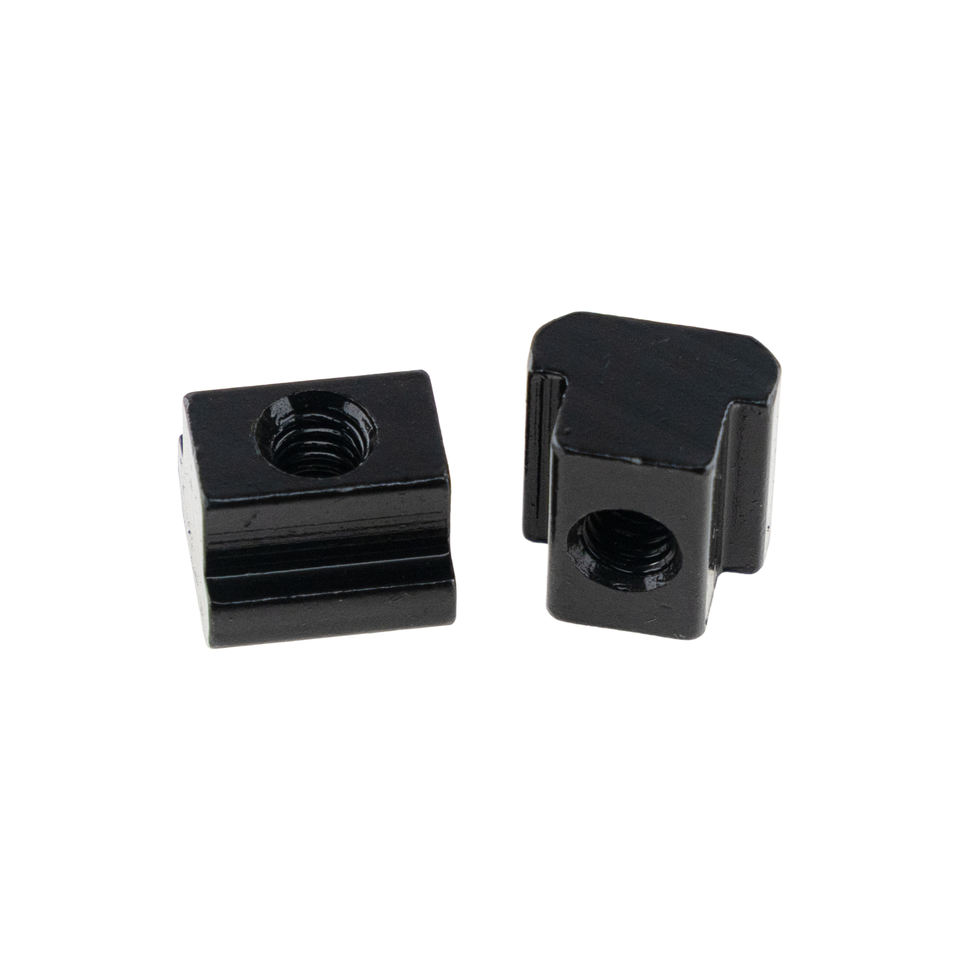

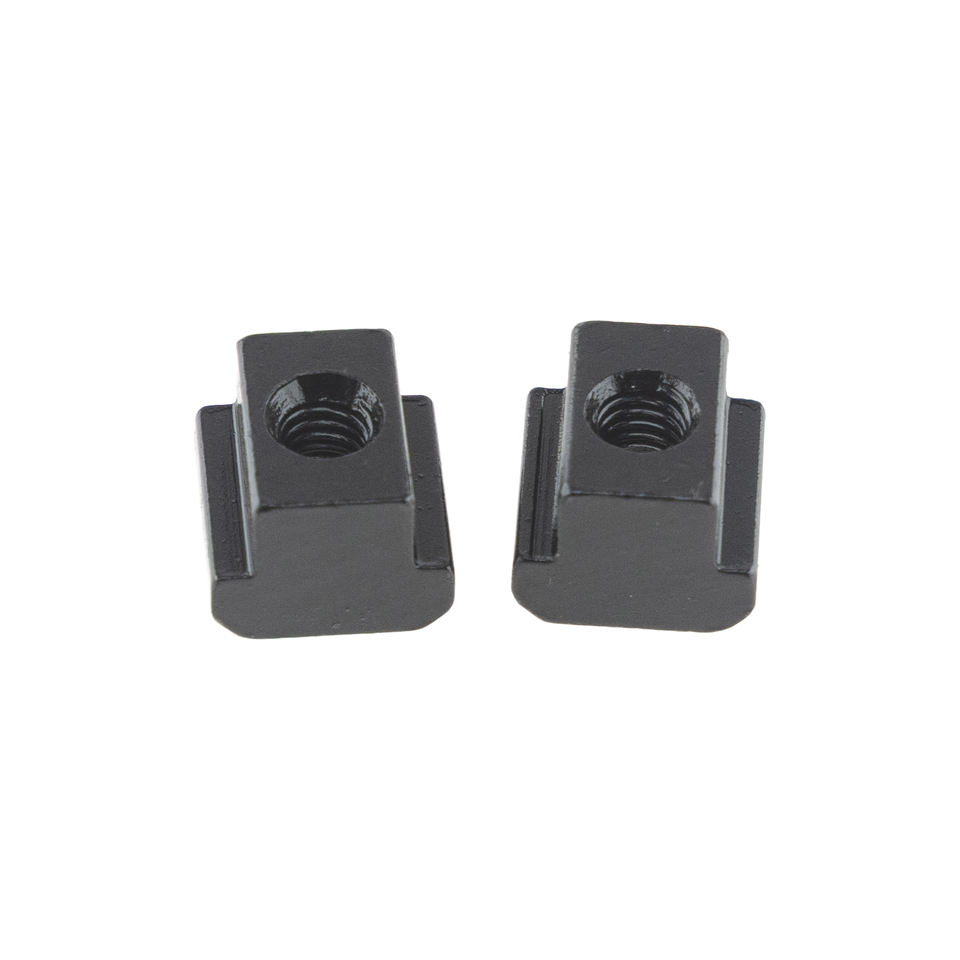

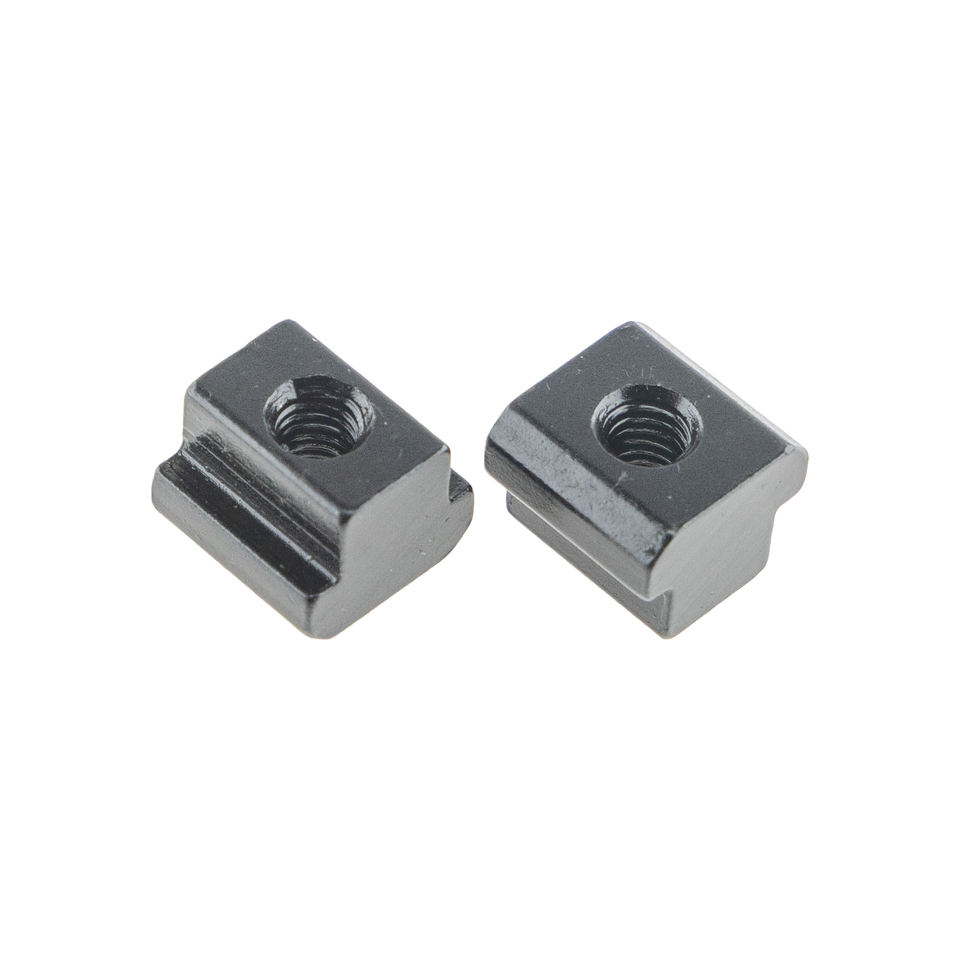

DIN 508:2002 T-Slot Nut is used in machine-tool tables, fixture bases, and clamping systems with T-slots. The T-shaped body slides and locates within the slot, forming an adjustable clamping point when used with bolts or clamp plates.

It is widely applied on milling machines, drilling machines, machining centers, inspection platforms, and assembly fixtures. Its key advantage is the ability to move along the slot to suit different clamping positions and workpiece sizes while providing dependable tensile and anti-slip performance after tightening.

The correct model can be selected according to T-slot size, thread specification, and load requirement. Material strength and surface finish can also be matched to operating frequency, machining environment, and maintenance interval.

Contact Us

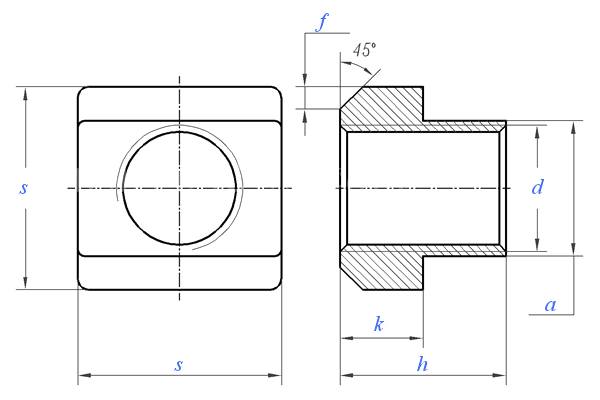

Dimensions unit: mm

Thread size d

M4

M5

M6

M8

M10

M12

M16

M20

M24

M30

M36

M42

M48

P

Pitch

0.7

0.8

1

1.25

1.5

1.75

2

2.5

3

3.5

4

4.5

5

a

Nominal

5

6

8

10

12

14

18

22

28

36

42

48

54

Max.

4.7

5.7

7.7

9.7

11.7

13.7

17.7

21.7

27.7

35.6

41.6

47.6

53.6

Min.

4.5

5.5

7.5

9.5

11.4

13.4

17.4

21.4

27.4

35.3

41.3

47.3

53.2

s

Max.

9

10

13

15

18

22

28

35

44

54

65

75

85

Min.

8.5

9.5

12.5

14.5

17.5

21.5

27.5

34.5

43

53

64

74

84

f

1

1.6

1.6

1.6

2.5

2.5

2.5

2.5

4

6

6

6

6

h

6.5

8

10

12

14

16

20

28

36

44

52

60

70

k

Max.

3

4

6

6

7

8

10

14

18

22

26

30

34

Min.

2.7

3.5

5.5

5.5

6.5

7.5

9.5

13.5

17

21

25

29

33

For T-slots according to DIN 650

5

6

8

10

12

14

18

22

28

36

42

48

54

Weight per thousand pieces kg

≈

2.5

4

10

18

24

35

75

165

345

770

1030

1550

2300
