ASME B18.6.3 (H5D-I+T1A):2024 Pan Head Combination Phillips ABR Tapping Screw
ASME B18.6.3 (H5D-I+T1A):2024 Pan Head Combination Phillips AB/ABR Tapping Screw combines a combination drive, pan head, and tapping thread, making it suitable for light assemblies requiring tool flexibility and fast thread-forming installation.
The combination Phillips drive accommodates different tool options, helping keep production and maintenance flexible. The AB/ABR tapping thread is suitable for sheet metal, plastic, and light materials, while the pan head provides a wider bearing surface for more stable clamping.
This product can be used in appliance housings, electronic equipment, control panels, light brackets, and general industrial assemblies. Point form, material, and coating options can be selected according to the final application to improve assembly efficiency, corrosion protection, and appearance consistency.

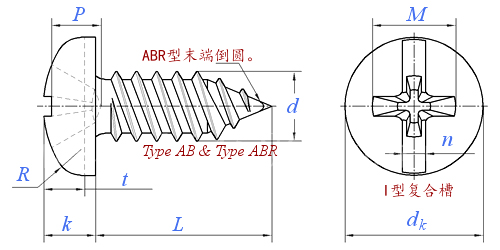

Dimensions unit: inch
|
Thread size d |
0# |
1# |
2# |
3# |
4# |
5# |
6# |
7# |
||
|
d |
0.0600 |
0.0730 |
0.0860 |
0.0990 |
0.1120 |
0.1250 |
0.1380 |
0.1510 |
||
|
PP |
48 |
42 |
32 |
28 |
24 |
20 |
20 |
19 |
||
|
dk |
Max. |
0.116 |
0.142 |
0.167 |
0.193 |
0.219 |
0.245 |
0.270 |
0.296 |
|
|
Min. |
0.104 |
0.130 |
0.155 |
0.180 |
0.205 |
0.231 |
0.256 |
0.281 |
||
|
k |
Max. |
0.044 |
0.053 |
0.062 |
0.071 |
0.080 |
0.089 |
0.097 |
0.106 |
|
|
Min. |
0.036 |
0.044 |
0.053 |
0.062 |
0.070 |
0.079 |
0.087 |
0.096 |
||
|
R |
Min. |
0.005 |
0.005 |
0.010 |
0.010 |
0.010 |
0.015 |
0.015 |
0.015 |
|
|
n |
Max. |
0.023 |
0.026 |
0.031 |
0.035 |
0.039 |
0.043 |
0.048 |
0.048 |
|
|
Min. |
0.016 |
0.019 |
0.023 |
0.027 |
0.031 |
0.035 |
0.039 |
0.039 |
||
|
t |
Max. |
0.022 |
0.027 |
0.031 |
0.036 |
0.040 |
0.045 |
0.050 |
0.054 |
|
|
Min. |
0.013 |
0.016 |
0.020 |
0.023 |
0.027 |
0.030 |
0.033 |
0.036 |
||
|
Slot number |
0 |
0 |
1 |
1 |
1 |
2 |
2 |
2 |
||
|
M |
Reference |
0.060 |
0.067 |
0.097 |
0.105 |
0.115 |
0.152 |
0.159 |
0.170 |
|
|
P |
Max. |
0.032 |
0.040 |
0.052 |
0.061 |
0.071 |
0.072 |
0.080 |
0.089 |
|
|
Min. |
0.014 |
0.022 |
0.034 |
0.043 |
0.053 |
0.046 |
0.055 |
0.064 |
||
|
L0 ④ |
Nominal |
7/16 |
9/16 |
5/8 |
3/4 |
13/16 |
15/16 |
1 |
1-1/8 |
|
|
Y ④ |
Thread transition length (full thread) |
Max. |
0.021 |
0.024 |
0.031 |
0.036 |
0.042 |
0.050 |
0.050 |
0.053 |
|
b ④ |
Thread length (long screws) |
Min. |
0.360 |
0.440 |
0.520 |
0.590 |
0.670 |
0.750 |
0.830 |
0.910 |
|
Thread size d |
8# |
10# |
12# |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
||
|
d |
0.1640 |
0.1900 |
0.2160 |
0.2500 |
0.3125 |
0.3750 |
0.4375 |
0.5000 |
||
|
PP |
18 |
16 |
14 |
14 |
12 |
12 |
10 |
10 |
||
|
dk |
Max. |
0.322 |
0.373 |
0.425 |
0.492 |
0.615 |
0.740 |
0.863 |
0.987 |
|
|
Min. |
0.306 |
0.357 |
0.407 |
0.473 |
0.594 |
0.716 |
0.837 |
0.958 |
||
|
k |
Max. |
0.115 |
0.133 |
0.151 |
0.175 |
0.218 |
0.261 |
0.305 |
0.348 |
|
|
Min. |
0.105 |
0.122 |
0.139 |
0.162 |
0.203 |
0.244 |
0.284 |
0.325 |
||
|
R |
Min. |
0.015 |
0.020 |
0.025 |
0.035 |
0.040 |
0.040 |
0.050 |
0.055 |
|
|
n |
Max. |
0.054 |
0.060 |
0.067 |
0.075 |
0.084 |
0.094 |
0.094 |
0.106 |
|
|
Min. |
0.045 |
0.050 |
0.056 |
0.064 |
0.072 |
0.081 |
0.081 |
0.091 |
||
|
t |
Max. |
0.058 |
0.068 |
0.077 |
0.087 |
0.106 |
0.124 |
0.142 |
0.161 |
|
|
Min. |
0.041 |
0.048 |
0.055 |
0.063 |
0.076 |
0.090 |
0.105 |
0.118 |
||
|
Slot number |
2 |
2 |
3 |
3 |
4 |
4 |
4 |
4 |
||
|
M |
Reference |
0.175 |
0.192 |
0.252 |
0.274 |
0.343 |
0.382 |
0.406 |
0.428 |
|
|
P |
Max. |
0.097 |
0.113 |
0.124 |
0.144 |
0.173 |
0.213 |
0.239 |
0.260 |
|
|
Min. |
0.071 |
0.089 |
0.098 |
0.118 |
0.149 |
0.190 |
0.214 |
0.235 |
||
|
L0 ④ |
Nominal |
1-1/4 |
1-3/8 |
1-5/8 |
1-13/16 |
1-13/16 |
1-7/8 |
1-7/8 |
1-7/8 |
|
|
Y ④ |
Thread transition length (full thread) |
Max. |
0.056 |
0.062 |
0.071 |
0.071 |
0.083 |
0.083 |
0.100 |
0.100 |
|
b ④ |
Thread length (long screws) |
Min. |
0.980 |
1.140 |
1.300 |
1.500 |
1.500 |
1.500 |
1.500 |
1.500 |
