Home / Products / Washers / Spring Washers / ASME/ANSI B18.21.1 (T2):2009 Heavy Spring Washer

ASME/ANSI B18.21.1 (T2):2009 Heavy Spring Washer

ASME/ANSI B18.21.1 (T2):2009 Heavy Spring Washer is used in inch-series connections requiring enhanced loosening resistance and elastic support. The heavy pattern usually provides a larger section and stronger spring reaction, making it suitable for bolt joints with higher clamping force or vibration exposure.

It can be used on equipment bases, auxiliary steel connections, construction machinery, pipe supports, and maintenance assemblies. After compression, the split spring washer provides rebound that helps compensate for slight relaxation and improves long-term stability of the fastener set.

Material, hardness, and surface treatment can be selected according to inch bolt size, load level, and corrosion-resistance needs, meeting requirements in general industrial and outdoor installation environments.

Contact Us
PREV：DIN 7980:1987 Socket Head Cap Spring Washer NEXT：DIN 137 (B):1994 Wave Spring Washer

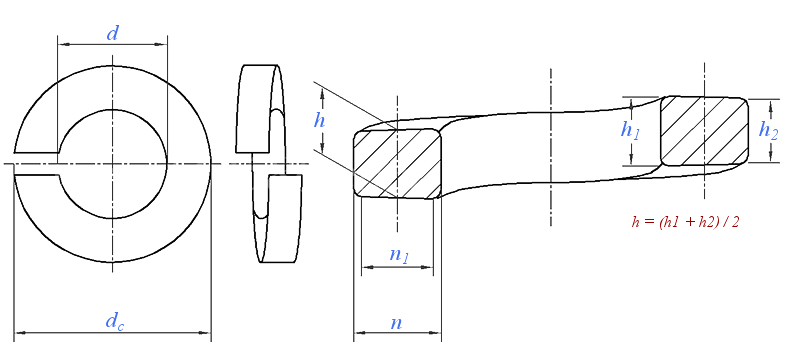

Dimensions unit: inch

Specification

2#

3#

4#

5#

6#

8#

10#

12#

1/4

5/16

3/8

7/16

1/2

d

Max.

0.094

0.107

0.12

0.133

0.148

0.174

0.2

0.227

0.26

0.322

0.385

0.45

0.512

Min.

0.088

0.101

0.114

0.127

0.141

0.167

0.193

0.22

0.252

0.314

0.377

0.44

0.502

dc

Max.

0.182

0.209

0.223

0.252

0.266

0.307

0.35

0.391

0.489

0.593

0.688

0.784

0.879

h

Min.

0.025

0.031

0.031

0.04

0.04

0.047

0.056

0.063

0.077

0.097

0.115

0.133

0.151

n

Min.

0.04

0.047

0.047

0.055

0.055

0.062

0.07

0.077

0.11

0.13

0.145

0.16

0.176

n1

Min.

0.028

0.033

0.033

0.038

0.038

0.043

0.049

0.054

0.077

0.091

0.101

0.112

0.123



Specification

9/16

5/8

11/16

3/4

13/16

7/8

15/16

1

1-1/16

1-1/8

1-3/16

1-1/4

1-5/16

d

Max.

0.574

0.641

0.704

0.766

0.832

0.894

0.958

1.024

1.087

1.153

1.217

1.28

1.344

Min.

0.564

0.628

0.691

0.753

0.816

0.878

0.941

1.003

1.066

1.129

1.192

1.254

1.317

dc

Max.

0.975

1.087

1.186

1.285

1.387

1.489

1.59

1.7

1.803

1.903

2.001

2.104

2.203

h

Min.

0.17

0.189

0.207

0.226

0.246

0.266

0.284

0.306

0.326

0.345

0.364

0.384

0.403

n

Min.

0.193

0.21

0.227

0.244

0.262

0.281

0.298

0.319

0.338

0.356

0.373

0.393

0.41

n1

Min.

0.135

0.147

0.159

0.171

0.183

0.197

0.209

0.223

0.237

0.249

0.261

0.275

0.287



Specification

1-3/8

1-7/16

1-1/2

1-5/8

1-3/4

1-7/8

2

2-1/4

2-1/2

2-3/4

3

d

Max.

1.408

1.472

1.534

1.663

1.789

1.914

2.039

2.293

2.543

2.793

3.043

Min.

1.379

1.442

1.504

1.633

1.758

1.883

2.008

2.262

2.512

2.762

3.012

dc

Max.

2.301

2.396

2.491

2.694

2.82

2.945

3.144

3.398

3.648

3.91

4.16

h

Min.

0.422

0.44

0.458

0.458

0.458

0.458

0.496

0.496

0.496

0.526

0.526

n

Min.

0.427

0.442

0.458

0.491

0.491

0.491

0.526

0.526

0.526

0.532

0.532

n1

Min.

0.299

0.309

0.321

0.344

0.344

0.344

0.368

0.368

0.368

0.372

0.372
