ASME B18.6.3 (H12B-VI):2024 Round Head Torx Screw

ASME B18.6.3 (H12B-VI):2024 Round Head Torx Screw combines a Torx drive with a round flange head, making it suitable for fastening points that require reliable clamping, removable maintenance, and standardized assembly. The ASME standard framework suits projects requiring U.S.-standard compatibility and engineering applicability, supporting smooth alignment between engineering drawings, purchasing lists, and quality inspection.

From an assembly perspective, the six-lobe recess distributes torque more evenly, making it suitable for automated assembly and applications where recess wear control matters. At the same time, combines a rounded head with a flange face, preserving a smooth appearance while enlarging the clamping area and improving load distribution, so the screw can provide stable fastening performance across different sheet thicknesses, appearance requirements, and space limitations.

It fits sheet metal, plastic parts, cover plates, and assemblies where a separate washer is inconvenient. For exposed equipment positions, head forming quality, recess integrity, edge chamfering, and coating uniformity can be emphasized so fastening performance aligns with the finished product appearance.

Contact Us

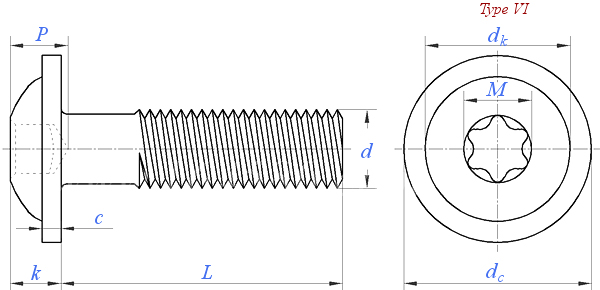

Dimensions unit: inch

Thread size d

2#

3#

4#

5#

6#

8#

10#

12#

1/4

5/16

3/8

7/16

1/2

d

Nominal

0.0860

0.0990

0.1120

0.1250

0.1380

0.1640

0.1900

0.2160

0.2500

0.3125

0.3750

0.4375

0.5000

PP

56

48

40

40

32

32

24

24

20

18

16

14

13

M

Reference value

0.081

0.094

0.111

0.111

0.132

0.155

0.178

0.200

0.221

0.266

0.312

0.352

0.446

Slot number

T7

T8

T9

T10

T15

T20

T25

T27

T30

T40

T45

T50

T55

P

Max.

0.035

0.035

0.040

0.045

0.060

0.065

0.075

0.080

0.090

0.120

0.130

0.150

0.170

Min.

0.030

0.030

0.035

0.035

0.050

0.050

0.060

0.065

0.075

0.105

0.115

0.135

0.155

dk

Reference value

0.136

0.156

0.177

0.198

0.218

0.259

0.300

0.341

0.396

0.494

0.593

0.691

0.790

dc

Max.

0.202

0.232

0.261

0.291

0.321

0.380

0.439

0.498

0.576

0.719

0.861

1.004

1.146

Min.

0.186

0.215

0.243

0.272

0.301

0.358

0.416

0.473

0.548

0.687

0.825

0.963

1.101

k

Max.

0.062

0.070

0.079

0.088

0.096

0.113

0.130

0.148

0.170

0.211

0.253

0.294

0.335

Min.

0.050

0.058

0.067

0.075

0.084

0.101

0.118

0.134

0.157

0.197

0.238

0.278

0.319

c

Reference value

0.030

0.030

0.030

0.040

0.040

0.040

0.050

0.050

0.050

0.060

0.060

0.070

0.090
