DIN 909:2020 Hex Head Pipe Plug

DIN 909:2020 Hex Head Pipe Plug is characterized by a hex head pipe plug design and is intended for pipe openings needing external wrench operation, convenient service removal, and reliable plugging.

The hex head handles higher installation and removal torque, making it practical for field service or frequently maintained ports; the threaded connection can be used with suitable sealing media. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include oil tanks, pumps and valves, machinery housings, hydraulic lines, drain holes, and inspection ports. The product can be configured with thread form, sealing washer, material, and surface finish to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：DIN 908:2020 Internal Socket Sealing Plug NEXT：ASME B16.14:2018 Pipe Thread Bushing Locknut Square Head Pipe Plug Screw

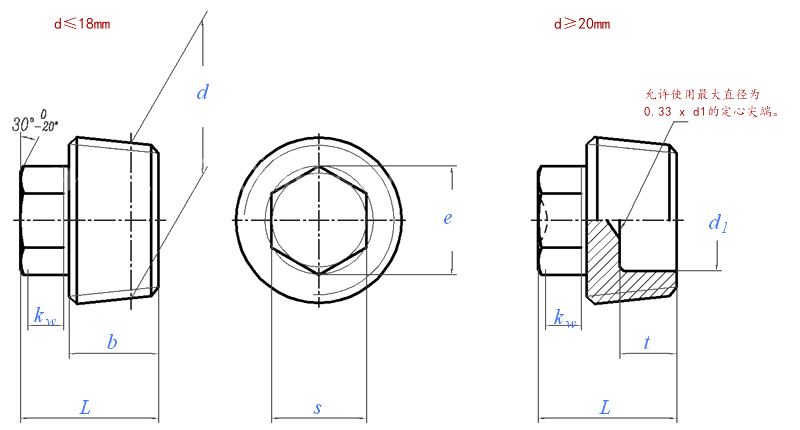

Dimensions unit: inch

Thread size

M10
keg

M12
keg

-

M14
keg

M16
keg

-

M18
keg

M20
keg

-

M22

M24
keg

(M26)
keg

P

Pitch 1

1

1.5

-

1.5

1.5

-

1.5

1.5

-

1.5

1.5

1.5

Pitch 2

-

-

-

-

-

-

-

-

-

-

-

-

d

Pipe thread/R

R 1/8

-

R 1/4

-

-

R 3/8

-

-

R 1/2

-

-

-

kw

Min.

2.5

2.8

2.8

2.8

3.5

3.5

3.5

4.2

4.2

4.2

4.8

4.8

b

Nominal (js16)

8

10

10

10

10

10

10

10

10

10

12

12

Max.

8.45

10.45

10.45

10.45

10.45

10.45

10.45

10.45

10.45

10.45

12.55

12.55

Min.

7.55

9.55

9.55

9.55

9.55

9.55

9.55

9.55

9.55

9.55

11.45

11.45

d1

Min.=Nominal (+IT17)

-

-

-

-

-

-

-

12

12

14

16

16

Max.

-

-

-

-

-

-

-

13.8

13.8

15.8

17.8

17.8

e

DIN 475-1

Min.

-

-

9.76

9.76

-

-

-

-

-

-

18.72

18.72

DIN ISO 272

Min.

7.66

7.66

8.63

8.63

10.89

10.89

10.89

14.2

14.2

14.2

17.59

17.59

L

Nominal (js16)

12.5

15

15

15

16

16

16

17

17

17

20

20

Max.

13.05

15.55

15.55

15.55

16.55

16.55

16.55

17.55

17.55

17.55

20.65

20.65

Min.

11.95

14.45

14.45

14.45

15.45

15.45

15.45

16.45

16.45

16.45

19.35

19.35

s

DIN 475-1

Max.

-

-

9

9

-

-

-

-

-

-

17

17

Min.

-

-

8.64

8.64

-

-

-

-

-

-

16.57

16.57

DIN ISO 272

Max.

7

7

8

8

10

10

10

13

13

13

16

16

Min.

6.78

6.78

7.64

7.64

9.64

9.64

9.64

12.57

12.57

12.57

15.57

15.57

t

Max.

-

-

-

-

-

-

-

6

6

6

7

7

Min.

-

-

-

-

-

-

-

5

5

5

6

6

Weight per thousand pieces kg

≈

5.72

9.1

12

13.2

17.9

19.4

21.9

25

27.2

29

43.8

50.9



Thread size

M27
keg

M30
keg

M33
keg

M36
keg

(M38)
keg

M39
keg

M42
keg

M45
keg

M48
keg

M52
keg

M56
keg

M60
keg

P

Pitch 1

-

1.5

-

1.5

1.5

-

1.5

1.5

1.5

1.5

-

-

Pitch 2

2

2

2

2

-

2

2

2

2

2

2

2

d

Pipe thread/R

R 3/4

-

R 1

-

-

-

R1-1/4

-

R1-1/2

-

-

-

kw

Min.

4.8

6.2

6.2

7.6

7.6

7.6

7.6

7.6

9.5

9.5

9.5

9.5

b

Nominal (js16)

12

12

12

15

15

15

18

18

20

20

22

22

Max.

12.55

12.55

12.55

15.55

15.55

15.55

18.55

18.55

20.65

20.65

22.65

22.65

Min.

11.45

11.45

11.45

14.45

14.45

14.45

17.45

17.45

19.35

19.35

21.35

21.35

d1

Min.=Nominal (+IT17)

16

20

23

26

28

28

32

35

38

42

46

50

Max.



17.8

22.1

25.1

28.1

30.1

30.1

34.5

37.5

40.5

44.5

48.5

52.5

e

DIN 475-1

Min.

18.72

20.88

20.88

-

-

-

-

-

-

-

-

-

DIN ISO 272

Min.

17.59

19.85

19.85

26.17

26.17

26.17

26.17

26.17

32.95

32.95

32.95

32.95

L

Nominal (js16)

20

22

22

27

27

27

30

30

35

35

37

37

Max.

20.65

22.65

22.65

27.65

27.65

27.65

30.65

30.65

35.8

35.8

37.8

37.8

Min.

19.35

21.35

21.35

26.35

26.35

26.35

29.35

29.35

34.2

34.2

36.2

36.2

s

DIN 475-1

Max.

17

19

19

-

-

-

-

-

-

-

-

-

Min.

16.57

18.48

18.48

-

-

-

-

-

-

-

-

-

DIN ISO 272

Max.

16

18

18

24

24

24

24

24

30

30

30

30

Min.

15.57

17.57

17.57

23.16

23.16

23.16

23.16

23.16

29.16

29.16

29.16

29.16

t

Max.

7

7

7

10

10

10

13

13

15

15

17

17

Min.

6

6

6

9

9

9

12

12

14

14

16

16

Weight per thousand pieces kg

≈

51.8

69.4

76.2

118

125

130

151

163

230

249

275

296
