ASME B16.14:2018 Pipe Thread Bushing Locknut Square Head Pipe Plug Screw combines a square-head pipe plug and related pipe-thread fitting form and is suitable for pipe plugging, adapting, or locking applications requiring ASME B16.14 compatibility.
The square head is convenient for wrench gripping, and the pipe thread suits steel and iron piping systems; related bushings and locknuts can support a complete pipe connection arrangement. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.
It is commonly used in industrial piping, fire-protection or water-service fittings, machinery ports, repair spares, and engineering installation. According to drawings or service conditions, thread system, material grade, sealing method, and rust-resistant finish can be selected to improve overall fastening performance and service life.

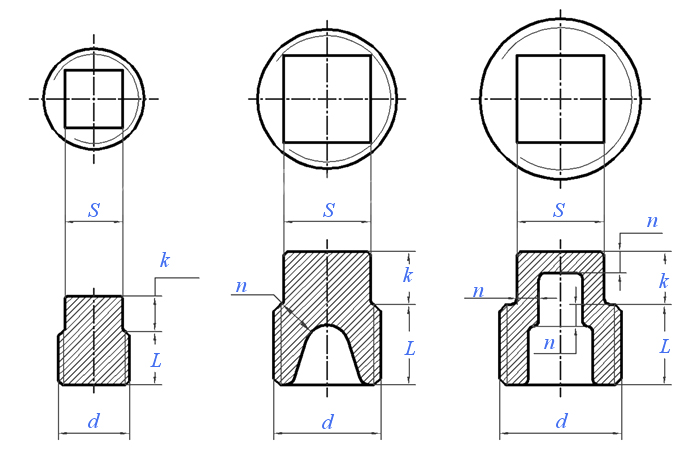

Dimensions unit: inch
|
Thread size |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
2-1/2 |
3 |
3-1/2 |
||
|
L |
Min. |
mm |
9.4 |
11.2 |
12.2 |
14.2 |
16 |
19.1 |
20.3 |
21.1 |
22.4 |
27.2 |
28.7 |
30 |
|
inch |
0.37 |
0.44 |
0.48 |
0.56 |
0.63 |
0.75 |
0.8 |
0.83 |
0.88 |
1.07 |
1.13 |
1.18 |
||
|
k |
Min. |
mm |
6.1 |
7.1 |
7.9 |
9.7 |
11.2 |
12.7 |
14.2 |
15.8 |
17.3 |
18.8 |
20.3 |
21.8 |
|
inch |
0.24 |
0.28 |
0.31 |
0.38 |
0.44 |
0.5 |
0.56 |
0.62 |
0.68 |
0.74 |
0.8 |
0.86 |
||
|
S |
Nominal |
inch |
9/32 |
3/8 |
7/16 |
9/16 |
5/8 |
13/16 |
15/16 |
1-1/8 |
1-5/16 |
1-1/2 |
1-11/16 |
1-7/8 |
|
n |
Nominal |
mm |
- |
- |
- |
4.1 |
4.6 |
5.1 |
5.6 |
6.1 |
6.6 |
7.4 |
7.9 |
8.6 |
|
inch |
- |
- |
- |
0.16 |
0.18 |
0.2 |
0.22 |
0.24 |
0.26 |
0.29 |
0.31 |
0.34 |
||
① Applicable materials: gray cast iron, malleable cast iron, ductile iron or steel
② The chemical and mechanical properties of the casting material should be greater than or equal to the applicable properties listed in ASTM A126.
