DIN 7:1981 Dowel Pin

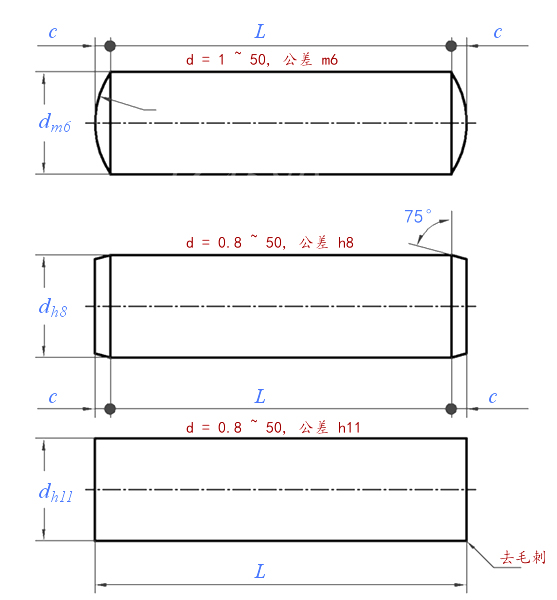

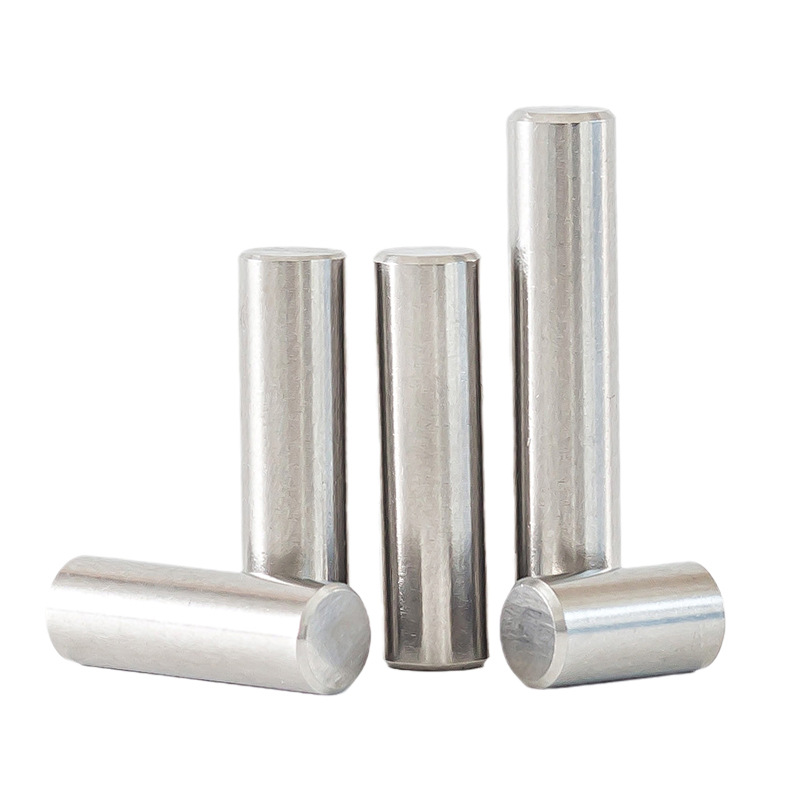

DIN 7:1981 Dowel Pin is characterized by a precision cylindrical dowel pin structure and is intended for mechanical structures requiring accurate hole-to-hole positioning, guidance, and repeatable assembly reference.

The cylindrical body fits reamed or locating holes, mainly carrying shear and positioning loads without relying on threads, improving assembly consistency. In assembly, the design helps reduce supporting operations, improve positioning consistency, and maintain good interchangeability in repeated production or field service.

Typical applications include molds, fixtures, gearboxes, equipment frames, locating plates, and transmission components. The product can be configured with tolerance grade, chamfer form, material hardness, and surface roughness to suit indoor, outdoor, light-load, vibration-exposed, or export supply conditions.

Contact Us
PREV：No previous product NEXT：ASME B18.8.2:2020 Dowel Pin

Dimensions unit: inch

Nominal diameter d

0.8

1

1.2

1.5

2

2.5

3

4

5

6

d

m6

Max.

-

1.008

1.208

1.508

2.008

2.508

3.008

4.012

5.012

6.012

Min.

-

1.002

1.202

1.502

2.002

2.502

3.002

4.004

5.004

6.004

h8

Max.

0.8

1

1.2

1.5

2

2.5

3

4

5

6

Min.

0.786

0.986

1.186

1.486

1.986

2.486

2.986

3.982

4.982

5.982

h11

Max.

0.8

1

1.2

1.5

2

2.5

3

4

5

6

Min.

0.74

0.94

1.14

1.44

1.94

2.44

2.94

3.925

4.925

5.925

c

Max.



0.12

0.15

0.18

0.23

0.3

0.4

0.45

0.6

0.75

0.9

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-



Nominal diameter d

8

10

12

14

16

20

25

30

40

50

d

m6

Max.

8.015

10.015

12.018

14.018

16.018

20.021

25.021

30.021

40.025

50.025

Min.

8.006

10.006

12.007

14.007

16.007

20.008

25.008

30.008

40.009

50.009

h8

Max.

8

10

12

14

16

20

25

30

40

50

Min.

7.978

9.978

11.973

13.973

15.973

19.967

24.967

29.967

39.961

49.961

h11

Max.

8

10

12

14

16

20

25

30

40

50

Min.

7.91

9.91

11.89

13.89

15.89

19.87

24.87

29.87

39.84

49.84

c

Max.

1.2

1.5

1.8

2

2.5

3

4

4.5

6

7.5

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-
