ASME B18.8.2:2020 Dowel Pin combines a cylindrical dowel pin available with chamfered or plain ends and is suitable for assemblies needing positioning, support, or shear connection under the ASME system.
Chamfered ends ease hole entry, while plain ends suit certain face-contact requirements; the dowel pin provides stable coaxial location and repeatable assembly reference. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.
It is commonly used in North American standard equipment, fixtures, machinery housings, hinge areas, and spare part replacement. According to drawings or service conditions, diameter tolerance, end form, and material heat treatment can be selected to improve overall fastening performance and service life.

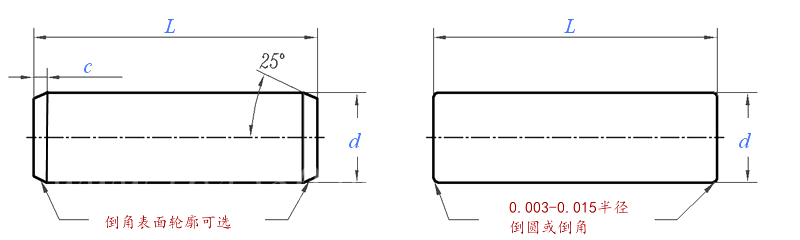

Dimensions unit: inch
|
Nominal diameter |
1/16 |
3/32 |
7/64 |
1/8 |
5/32 |
3/16 |
7/32 |
1/4 |
|
|
Nominal diameter |
0.0625 |
0.0938 |
0.1094 |
0.125 |
0.1563 |
0.1875 |
0.2188 |
0.25 |
|
|
d |
Max. |
0.0625 |
0.0937 |
0.1094 |
0.125 |
0.1562 |
0.1875 |
0.2187 |
0.25 |
|
Min. |
0.0605 |
0.0917 |
0.1074 |
0.123 |
0.1542 |
0.1855 |
0.2167 |
0.248 |
|
|
c |
Max. |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
0.025 |
|
Min. |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
0.005 |
|
|
Nominal diameter |
5/16 |
3/8 |
7/16 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
|
|
Nominal diameter |
0.3125 |
0.375 |
0.4375 |
0.5 |
0.625 |
0.75 |
0.875 |
1 |
|
|
d |
Max. |
0.3125 |
0.375 |
0.4375 |
0.5 |
0.625 |
0.75 |
0.875 |
1 |
|
Min. |
0.3105 |
0.373 |
0.4355 |
0.498 |
0.623 |
0.748 |
0.873 |
0.998 |
|
|
c |
Max. |
0.04 |
0.04 |
0.04 |
0.04 |
0.055 |
0.055 |
0.055 |
0.055 |
|
Min. |
0.02 |
0.02 |
0.02 |
0.02 |
0.035 |
0.035 |
0.035 |
0.035 |
|
