ASME B18.8.2:2020 Taper Pin combines a U.S.-standard taper pin structure and is suitable for mechanical assemblies needing ASME locating reference, shear capacity, or tapered-hole engagement.
The taper pin creates close contact with the hole wall through its taper and can maintain good positioning accuracy under vibration or repeated service. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.
It is commonly used in machine tool components, industrial fixtures, hinge structures, transmission parts, and North American spare parts. According to drawings or service conditions, dimensional tolerance, end shape, and heat treatment condition can be selected to improve overall fastening performance and service life.

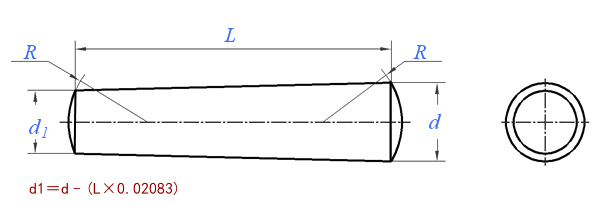

Dimensions unit: inch
|
Specification |
7/0 |
6/0 |
5/0 |
4/0 |
3/0 |
2/0 |
0# |
1# |
2# |
3# |
4# |
||
|
Nominal diameter |
0.0625 |
0.078 |
0.094 |
0.109 |
0.125 |
0.141 |
0.156 |
0.172 |
0.193 |
0.219 |
0.25 |
||
|
d |
Crude |
Max. |
0.0638 |
0.0793 |
0.0953 |
0.1103 |
0.1263 |
0.1423 |
0.1573 |
0.1733 |
0.1943 |
0.2203 |
0.2513 |
|
Min. |
0.0618 |
0.0773 |
0.0933 |
0.1083 |
0.1243 |
0.1403 |
0.1553 |
0.1713 |
0.1923 |
0.2183 |
0.2493 |
||
|
Refined |
Max. |
0.0635 |
0.079 |
0.095 |
0.11 |
0.126 |
0.142 |
0.157 |
0.173 |
0.194 |
0.22 |
0.251 |
|
|
Min. |
0.0625 |
0.078 |
0.094 |
0.109 |
0.125 |
0.141 |
0.156 |
0.172 |
0.193 |
0.219 |
0.25 |
||
|
R |
Max. |
0.072 |
0.088 |
0.104 |
0.119 |
0.135 |
0.151 |
0.166 |
0.182 |
0.203 |
0.229 |
0.26 |
|
|
Min. |
0.052 |
0.068 |
0.084 |
0.099 |
0.115 |
0.131 |
0.146 |
0.162 |
0.183 |
0.209 |
0.24 |
||
|
Specification |
5# |
6# |
7# |
8# |
9# |
10# |
11# |
12# |
13# |
14# |
||
|
Nominal diameter |
0.289 |
0.341 |
0.409 |
0.492 |
0.591 |
0.706 |
0.86 |
1.032 |
1.241 |
1.523 |
||
|
d |
Crude |
Max. |
0.2903 |
0.3423 |
0.4103 |
0.4933 |
0.5923 |
0.7073 |
0.8613 |
1.0333 |
1.2423 |
1.5243 |
|
Min. |
0.2883 |
0.3403 |
0.4083 |
0.4913 |
0.5903 |
0.7053 |
0.8593 |
1.0313 |
1.2403 |
1.5223 |
||
|
Refined |
Max. |
0.29 |
0.342 |
0.41 |
0.493 |
0.592 |
0.707 |
- |
- |
- |
- |
|
|
Min. |
0.289 |
0.341 |
0.409 |
0.492 |
0.591 |
0.706 |
- |
- |
- |
- |
||
|
R |
Max. |
0.299 |
0.351 |
0.419 |
0.502 |
0.601 |
0.716 |
0.87 |
1.042 |
1.251 |
1.533 |
|
|
Min. |
0.279 |
0.331 |
0.399 |
0.482 |
0.581 |
0.696 |
0.85 |
1.022 |
1.231 |
1.531 |
||
FAQ
A: We take every inquiry seriously. On working days, we will respond within 12 hours after receiving your inquiry.
A: We focus on the production of fasteners made of carbon steel, stainless steel, and low-alloy steel. We are a direct manufacturer with independent production capacity. ASME B18.8.2:2020 Taper Pin Factory. We own several fastener manufacturing facilities and have an international sales department, providing full-process services from production to export.
A: Customized production is our core business. We can develop and manufacture products based on the drawings or samples you provide.
A: Yes. In addition to custom products, we also produce general construction machinery parts (GET parts) for equipment such as excavators, including bucket teeth, tooth holders, corner blades, pins, clips, bolts and nuts. ASME B18.8.2:2020 Taper Pin Wholesale.
A: We have 12 energy-efficient and environmentally friendly modern production lines (including one fully automatic shell molding line and four heat treatment lines), with an annual production capacity exceeding 20,000 tons, enabling us to steadily meet various order requirements.
A: Trade terms (such as FOB, CIF, etc.) are confirmed when quoting. For batch production, we typically require a 30% deposit, with the balance paid against the copy of the bill of lading. T/T is the main payment method accepted, and L/C can also be negotiated.
A: We are only 35 km away from Shanghai Port and Ningbo Port, so sea freight is the main mode of transportation, which is convenient and efficient. For urgent deliveries, we can also arrange air freight via Ningbo or Shanghai airports.
