DIN 922:2024 Small Pan Head Slotted Dog Point Screw

DIN 922:2024 Small Pan Head Slotted Dog Point Screw adopts a small slotted pan head with a dog point to meet the needs of light mechanical connections requiring compact head size and an end feature for guidance or stopping.

The small pan head reduces space use, the slot allows adjustment, and the dog point can enter a hole or groove for positioning, guidance, and anti-rotation. Its advantages lie in a clear installation method, well-defined load path, and good adaptability across different materials and installation spaces.

This product is suitable for instrument mechanisms, adjustment devices, small fixtures, stop structures, and precision assemblies. Point length, material hardness, and surface finish can be adjusted for the final application, balancing cost control, corrosion protection, and assembly consistency.

Contact Us
PREV：No previous product NEXT：DIN 564:1995 Small Hex Head Cone Point Set Screw

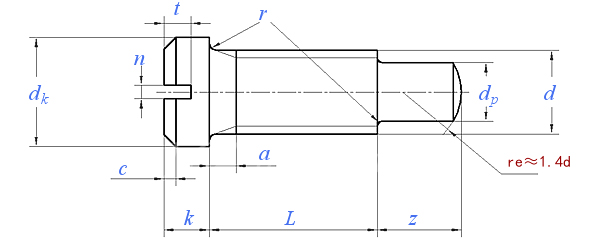

Dimensions unit: inch

Thread size d

M1.4

M1.6

M2

M2.5

M3

M4

M5

M6

M8

M10

P

Pitch

0.3

0.35

0.4

0.45

0.5

0.7

0.8

1

1.25

1.5

a

Max.

0.6

0.7

0.8

0.9

1

1.4

1.6

2

2.5

3

dk

Max.=Nominal

2

2.3

2.8

3.5

4

5.5

6.5

8

10

13

Min.

1.86

2.16

2.66

3.32

3.82

5.32

6.28

7.78

9.78

12.73

dp

Max.=Nominal

0.8

0.8

1.2

1.5

2

2.8

3.5

4.5

6

7.5

Min.

0.775

0.775

1.175

1.475

1.975

2.775

3.47

4.47

5.97

7.464

k

Nominal

0.9

1

1.2

1.5

1.8

2.4

2.7

3.1

3.8

4.6

Max.

1.02

1.12

1.32

1.62

1.92

2.52

2.82

3.25

3.95

4.75

Min.

0.78

0.88

1.08

1.38

1.68

2.28

2.58

2.95

3.65

4.45

n

Nominal

0.25

0.3

0.3

0.4

0.5

0.6

0.8

1

1.2

1.6

Max.

0.45

0.5

0.5

0.6

0.7

0.8

1

1.2

1.51

1.91

Min.

0.31

0.36

0.36

0.45

0.56

0.66

0.86

1.06

1.26

1.66

r

Max.

0.1

0.1

0.1

0.1

0.1

0.2

0.2

0.25

0.4

0.4

t

Max.

0.6

0.7

0.8

0.95

1.15

1.5

1.6

1.9

2.4

2.8

Min.

0.45

0.5

0.6

0.75

0.9

1.2

1.3

1.5

1.9

2.3

c

≈

0.25

0.25

0.3

0.4

0.45

0.6

0.7

0.8

0.9

1.1

z

Nominal

0.6, 1

1, 1.6

1, 1.6, 2

1.6, 2, 2.5

1.6, 2, 2.5, 3

2, 2.5, 4

2.5, 4, 5

4, 5, 6

4, 5, 6, 8

5, 6, 8, 10
