YJT 3032 Grounding Cage Clip Nut is used where quick clip-in installation and grounding connection are required. The cage structure can be mounted into sheet-metal panels, cabinets, or profile openings, reducing the need for welding or separately tapped holes.
This product is suitable for electrical cabinets, communication equipment, chassis housings, rail-mounted structures, and grounding nodes. The grounding-oriented design helps achieve electrical continuity while fastening, improving assembly efficiency and maintenance convenience.
Materials and surface treatments can be selected according to panel thickness, hole type, conductivity requirements, and corrosion protection needs, supporting stable connections in electrical equipment and sheet-metal structures.

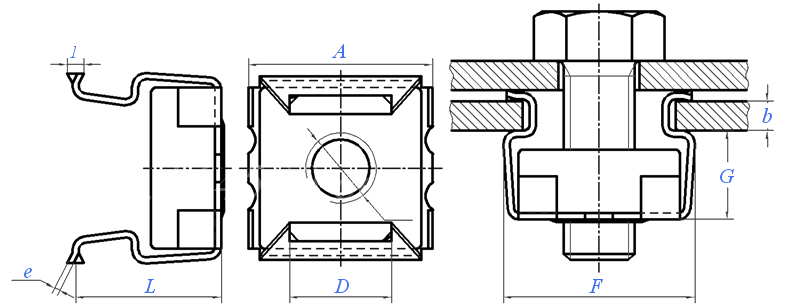

Dimensions unit: mm
|
Thread size |
M4 |
M5 |
M6 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
||
|
b |
1.5~2.0 |
1.5~2.0 |
1.5~2.0 |
1.5~2.0 |
1.5~2.0 |
1.5~2.0 |
2.3~3.9 |
2.3~3.9 |
2.3~3.9 |
||
|
A |
12 |
12 |
12 |
13.2 |
13.2 |
13.2 |
20.4 |
20.4 |
20.4 |
||
|
L |
8.5 |
8.5 |
8.5 |
9.5 |
9.5 |
9.5 |
16.5 |
16.5 |
16.5 |
||
|
D |
7.2 |
7.2 |
7.2 |
8.2 |
8.2 |
8.2 |
12.6 |
12.6 |
12.6 |
||
|
e |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.45 |
0.6 |
0.6 |
0.6 |
||
|
F |
12.2 |
12.2 |
12.2 |
13.5 |
13.5 |
13.5 |
20.4 |
20.4 |
20.4 |
||
|
G |
6 |
6 |
6 |
6 |
6 |
6 |
10.5 |
10.5 |
10.5 |
||
|
N |
Opening width |
8.3 |
8.3 |
8.3 |
9.5 |
9.5 |
9.5 |
14 |
14 |
14 |
|
