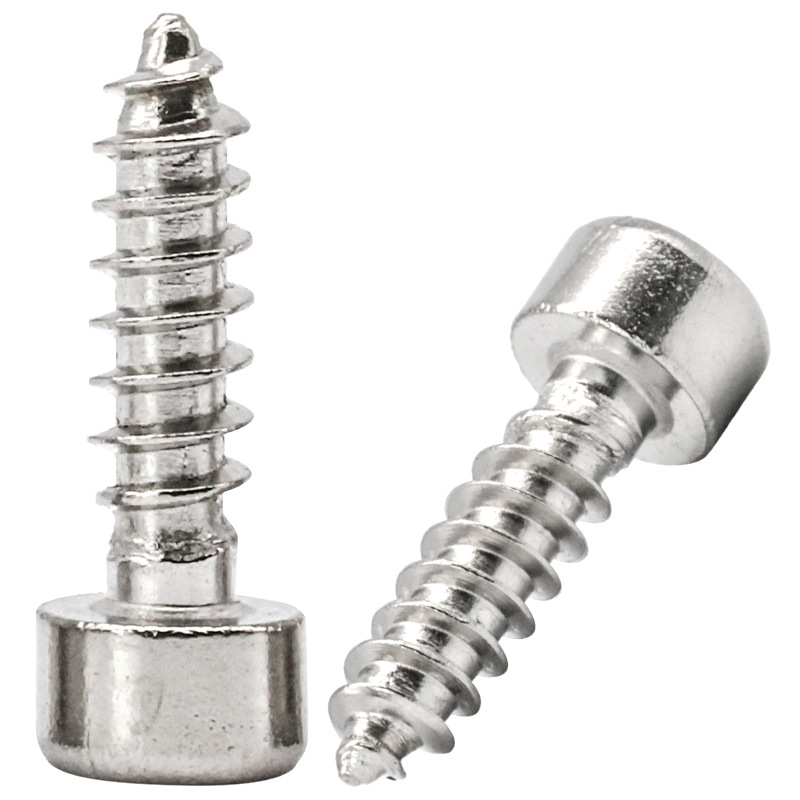

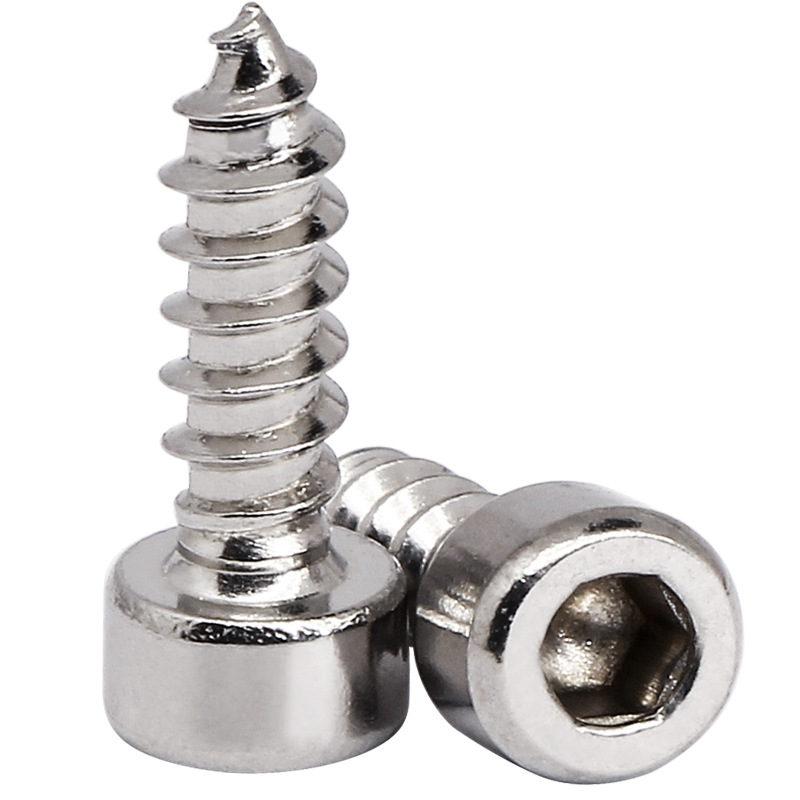

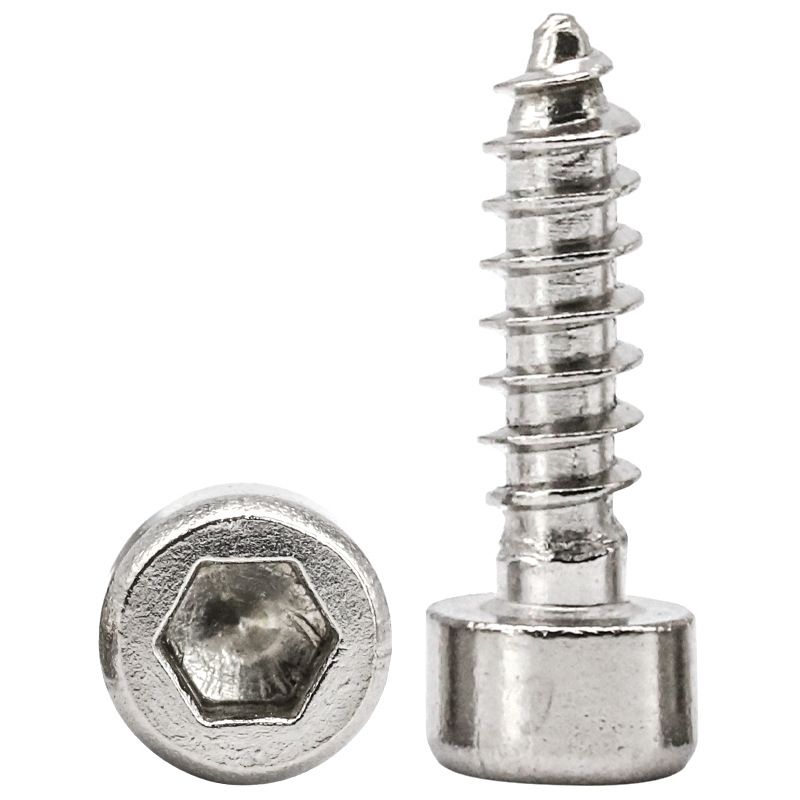

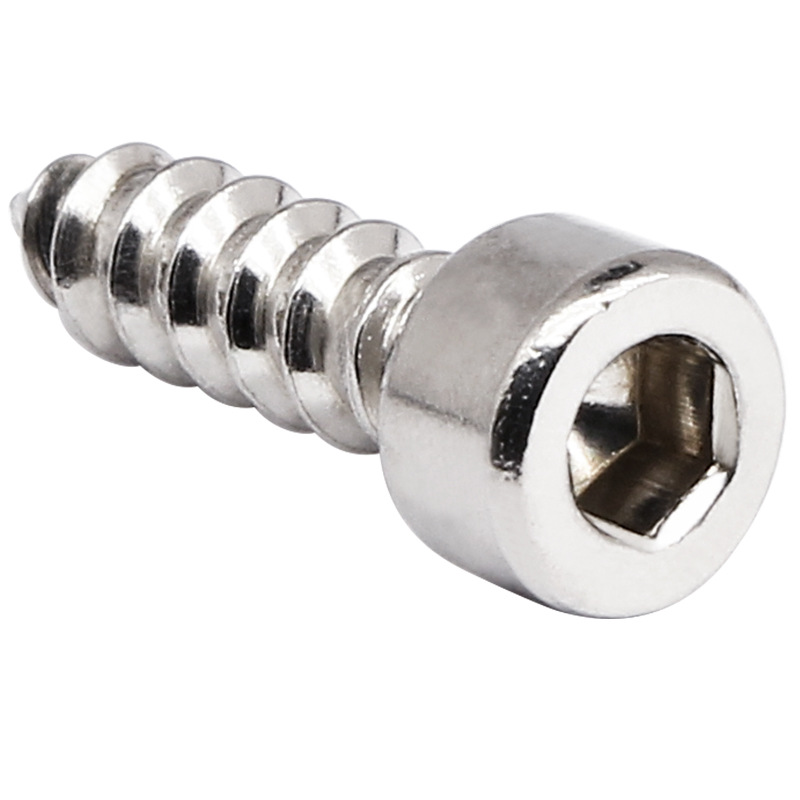

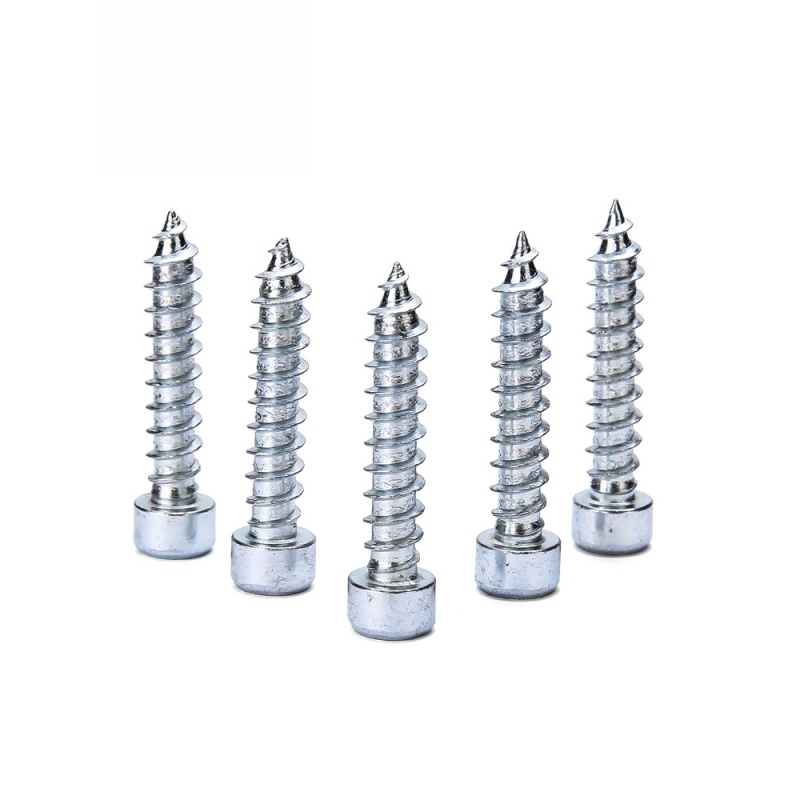

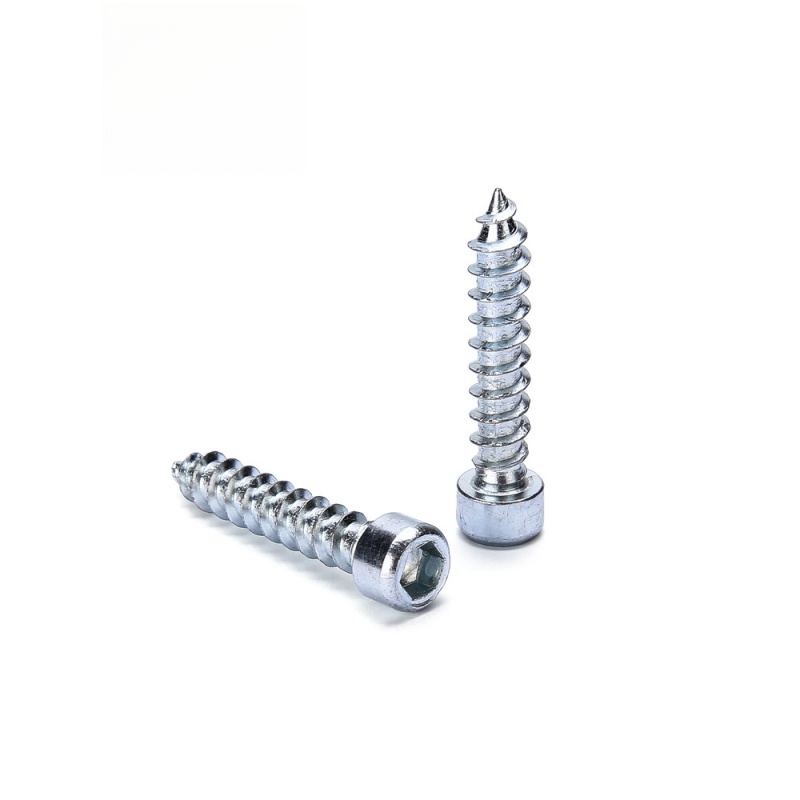

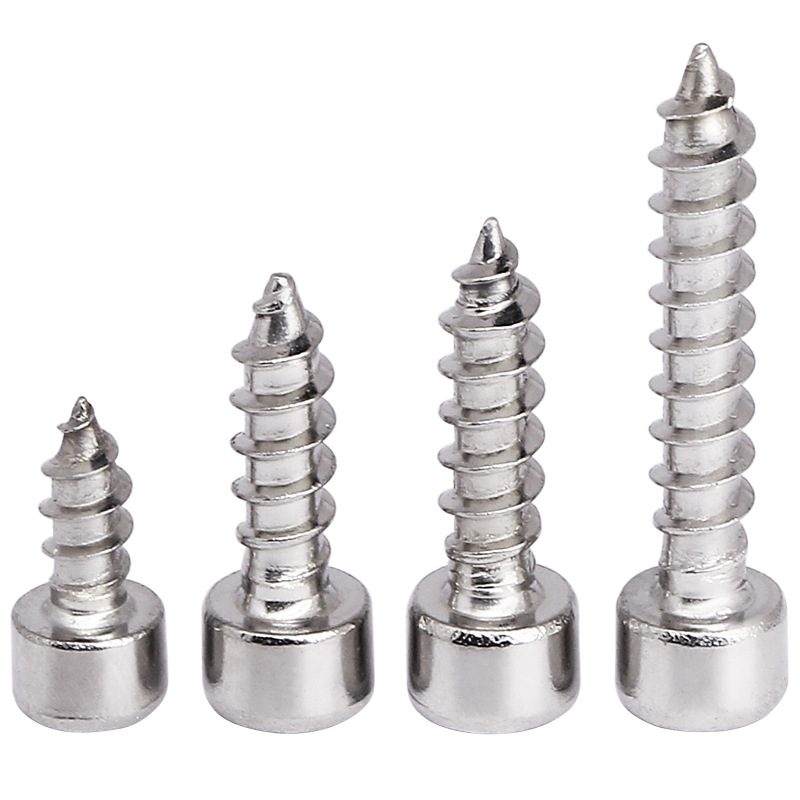

ISO 4762:2004 Socket Head Cap Hex Socket Tapping Screw

ISO 4762:2004 Socket Head Cap Hex Socket Tapping Screw uses a cylindrical head, hex socket drive, and tapping thread. It is suitable for connections requiring compact head geometry, controlled torque application, and assembly without pre-tapping.

The hex socket allows force to be applied in limited spaces, while the regular cylindrical head is suitable for machinery housings, module frames, and precision equipment where appearance and installation stability are important. The tapping thread improves fastening efficiency in sheet metal or light material pilot holes.

This product can be used in automation equipment, electronic enclosures, instrument structures, light machinery, and industrial components. High-strength steel, stainless steel, or treated versions can be selected to meet load, corrosion resistance, and long-term maintenance requirements.

Contact Us
PREV：ASME B18.6.4:1998 Slotted Hex Head Tapping Screw NEXT：ASME/ANSI B18.6.5M (T21):2000 Metric Hex Head Flange Tapping Screw

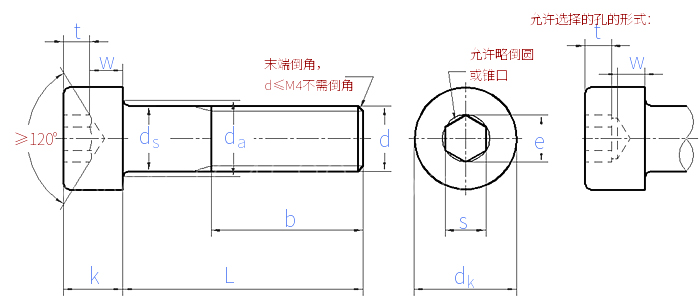

Dimensions unit: inch

Thread size d

M1.6

M2

M2.5

M3

M4

M5

M6

M8

M10

M12

P

Pitch

0.35

0.4

0.45

0.5

0.7

0.8

1

1.25

1.5

1.75

dk

Max.

Smooth head

3

3.8

4.5

5.5

7

8.5

10

13

16

18

Knurled head

3.14

3.98

4.68

5.68

7.22

8.72

10.22

13.27

16.27

18.27

Min.

2.86

3.62

4.32

5.32

6.78

8.28

9.78

12.73

15.73

17.73

da

Max.

2

2.6

3.1

3.6

4.7

5.7

6.8

9.2

11.2

13.7

ds

Max.

1.6

2

2.5

3

4

5

6

8

10

12

Min.

1.46

1.86

2.36

2.86

3.82

4.82

5.82

7.78

9.78

11.73

e

Min.

1.733

1.733

2.303

2.873

3.443

4.583

5.723

6.863

9.149

11.429

k

Max.

1.6

2

2.5

3

4

5

6

8

10

12

Min.

1.46

1.86

2.36

2.86

3.82

4.82

5.7

7.64

9.64

11.57

s

Nominal

1.5

1.5

2

2.5

3

4

5

6

8

10

Max.

1.58

1.58

2.08

2.58

3.08

4.095

5.14

6.14

8.175

10.175

Min.

1.52

1.52

2.02

2.52

3.02

4.02

5.02

6.02

8.025

10.025

t

Min.

0.7

1

1.1

1.3

2

2.5

3

4

5

6

w

Min.

0.55

0.55

0.85

1.15

1.4

1.9

2.3

3.3

4

4.8

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-

Thread length b

-

-

-

-

-

-

-

-

-

-





Thread size d

(M14)

M16

M20

M24

M30

M36

M42

M48

M56

M64

P

Pitch

2

2

2.5

3

3.5

4

4.5

5

5.5

6

dk

Max.

Smooth head

21

24

30

36

45

54

63

72

84

96

Knurled head

21.33

24.33

30.33

36.39

45.39

54.46

63.46

72.46

84.54

96.54

Min.

20.67

23.67

29.67

35.61

44.61

53.54

62.54

71.54

83.46

95.46

da

Max.

15.7

17.7

22.4

26.4

33.4

39.4

45.6

52.6

63

71

ds

Max.

14

16

20

24

30

36

42

48

56

64

Min.

13.73

15.73

19.67

23.67

29.67

35.61

41.61

47.61

55.54

63.54

e

Min.

13.716

15.996

19.437

21.734

25.154

30.854

36.571

41.131

46.831

52.531

k

Max.

14

16

20

24

30

36

42

48

56

64

Min.

13.57

15.57

19.48

23.48

29.48

35.38

41.38

47.38

55.26

63.26

s

Nominal

12

14

17

19

22

27

32

36

41

46

Max.

12.212

14.212

17.23

19.275

22.275

27.275

32.33

36.33

41.33

46.33

Min.

12.032

14.032

17.05

19.065

22.065

27.065

32.08

36.08

41.08

46.08

t

Min.

7

8

10

12

15.5

19

24

28

34

38

w

Min.

5.8

6.8

8.6

10.4

13.1

15.3

16.3

17.5

19

22

Thousand pieces of steel weigh ≈kg

-

-

-

-

-

-

-

-

-

-

Thread length b

-

-

-

-

-

-

-

-

-

-
