ASME/ANSI B18.6.5M (T21):2000 Metric Hex Head Flange Tapping Screw

ASME/ANSI B18.6.5M (T21):2000 Metric Hex Head Flange Tapping Screw uses metric dimensions, an external hex head, and a flange bearing surface. It is suitable for engineering applications requiring broad contact area, fast socket installation, and tapping capability.

The flange surface distributes clamping load, reduces indentation on sheet metal or bracket surfaces, and improves joint stability. The tapping thread reduces the need for pre-tapping and nuts, making it useful for field installation, replacement service, and high-volume light structural assembly.

This product can be used for metal panels, equipment brackets, vehicle accessories, HVAC systems, and industrial housings. Zinc plating, corrosion-resistant materials, or other finishes can be selected for outdoor, humid, or vibration-exposed environments.

Contact Us
PREV：DIN 6928:2008 Hex Head Tapping Screw NEXT：ASME B18.6.4:1998 Slotted Hex Head Tapping Screw

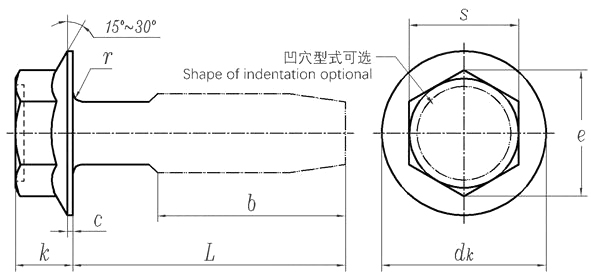

Dimensions unit: inch

Thread size d

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

P

Pitch

0.8

1

1.3

1.4

1.6

1.8

1.8

2.1

2.1

s

Max.

3

4

5

5.5

7

7

8

10

13

Min.

2.84

3.84

4.82

5.32

6.78

6.78

7.78

9.78

12.72

e

Min.

3.16

4.27

5.36

5.92

7.55

7.55

8.66

10.89

14.16

dk

Max.

4.5

6.4

7.5

8.5

10

11.2

12.8

16.8

21

Min.

4.1

5.9

6.9

7.8

9.3

10.3

11.8

15.5

19.3

k

Max.

2.2

3.2

3.8

4.3

5.2

6

6.7

8.6

10.7

c

Min.

0.3

0.4

0.5

0.6

0.6

0.8

1

1.2

1.4

r

Min.

0.1

0.1

0.1

0.2

0.2

0.2

0.3

0.4

0.4

b

Min.

13

17

21

25

29

33

38

38

38

Thread and end type

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT

AB,B,BF,BT



Thread size d

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

P

Pitch

0.4

0.45

0.5

0.6

0.7

0.8

1

1.25

1.5

s

Max.

3

3.2

4

5

5.5

7

8

10

13

Min.

2.84

3.04

3.84

4.82

5.32

6.78

7.78

9.78

12.72

e

Min.

3.16

3.39

4.27

5.36

5.92

7.55

8.66

10.89

14.16

dk

Max.

4.5

5.4

6.4

7.5

8.5

10.6

12.8

16.8

21

Min.

4.1

5

5.9

6.9

7.8

9.8

11.8

15.5

19.3

k

Max.

2.2

2.7

3.2

3.8

4.3

5.4

6.7

8.6

10.7

c

Min.

0.3

0.3

0.4

0.5

0.6

0.7

1

1.2

1.4

r

Min.

0.1

0.1

0.1

0.1

0.2

0.2

0.3

0.4

0.4

b

Min.

12

15

18

21

24

30

38

38

38

Thread and end type

D,F,T

D,F,T

D,F,T

D,F,T

D,F,T

D,F,T

D,F,T

D,F,T

D,F,T
