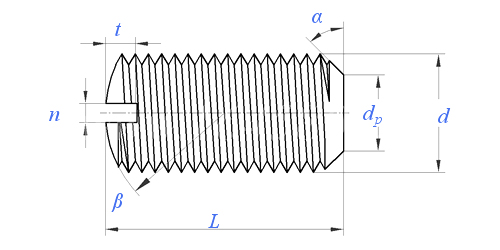

ASME/ANSI B18.6.2 (T5-flat):1998 Slotted Flat Point Set Screw
ASME/ANSI B18.6.2 (T5-flat):1998 Slotted Flat Point Set Screw is designed under the ASME/ANSI standard system and uses a flat point with a slotted drive, making it suitable for North American standard assemblies, replacement service, and export equipment.
The flat point provides broad end contact during tightening and is useful where the point should not bite deeply into shafts, collars, or adjustment components. The slotted head can be operated with basic tools, simplifying field maintenance and setup work.
This product is suitable for instruments, light-duty transmission parts, electromechanical assemblies, stop components, and adjustable mechanisms. Different diameters, lengths, materials, and finishes can be supplied to meet drawing requirements and standardized purchasing needs.
Dimensions unit: inch
|
Thread size |
0# |
1# |
2# |
3# |
4# |
5# |
6# |
8# |
10# |
|
|
d |
0.0600 |
0.0730 |
0.0860 |
0.0990 |
0.1120 |
0.1250 |
0.1380 |
0.1640 |
0.1900 |
|
|
β ② |
0.060 |
0.073 |
0.086 |
0.099 |
0.112 |
0.125 |
0.138 |
0.164 |
0.190 |
|
|
n |
Max. |
0.014 |
0.016 |
0.018 |
0.020 |
0.024 |
0.026 |
0.028 |
0.032 |
0.035 |
|
Min. |
0.010 |
0.012 |
0.014 |
0.016 |
0.018 |
0.020 |
0.022 |
0.026 |
0.029 |
|
|
t |
Max. |
0.020 |
0.020 |
0.025 |
0.028 |
0.031 |
0.036 |
0.040 |
0.046 |
0.053 |
|
Min. |
0.016 |
0.016 |
0.019 |
0.022 |
0.025 |
0.026 |
0.030 |
0.036 |
0.043 |
|
|
dp |
Max. |
0.033 |
0.040 |
0.047 |
0.054 |
0.061 |
0.067 |
0.074 |
0.087 |
0.102 |
|
Min. |
0.027 |
0.033 |
0.039 |
0.045 |
0.051 |
0.057 |
0.064 |
0.076 |
0.088 |
|
|
Y ① |
5/64 |
3/32 |
7/64 |
1/8 |
5/32 |
3/16 |
3/16 |
1/4 |
1/4 |
|
|
Thread size d |
12# |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
3/4 |
|
|
0.2160 |
0.2500 |
0.3125 |
0.3750 |
0.4375 |
0.5000 |
0.5625 |
0.6250 |
0.7500 |
||
|
β ② |
0.216 |
0.250 |
0.312 |
0.375 |
0.438 |
0.500 |
0.562 |
0.625 |
0.750 |
|
|
n |
Max. |
0.042 |
0.049 |
0.055 |
0.068 |
0.076 |
0.086 |
0.096 |
0.107 |
0.134 |
|
Min. |
0.035 |
0.041 |
0.047 |
0.060 |
0.068 |
0.076 |
0.086 |
0.097 |
0.124 |
|
|
t |
Max. |
0.061 |
0.068 |
0.083 |
0.099 |
0.114 |
0.130 |
0.146 |
0.161 |
0.193 |
|
Min. |
0.051 |
0.058 |
0.073 |
0.089 |
0.104 |
0.120 |
0.136 |
0.151 |
0.183 |
|
|
dp |
Max. |
0.115 |
0.132 |
0.172 |
0.212 |
0.252 |
0.291 |
0.332 |
0.371 |
0.450 |
|
Min. |
0.101 |
0.118 |
0.156 |
0.194 |
0.232 |
0.270 |
0.309 |
0.347 |
0.425 |
|
|
Y ① |
5/16 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
3/4 |
7/8 |
|
