ASME/ANSI B18.6.2 (T5 cone):1998 Slotted Cone Point Set Screw follows the ASME/ANSI dimensional system, making it suitable for positioning and locking applications that must match U.S. standard drawings, equipment specifications, or spare part systems.
The cone point forms a defined contact point on the mating component, helping prevent collars, gears, knobs, or adjustment parts from slipping during operation. The slotted drive supports quick installation and can be serviced with common field tools.
This set screw is used in electromechanical equipment, transmission parts, instrument knobs, fixture stops, and light to medium-duty locking structures. Material and protective coating options can be selected to balance holding performance, durability, and ease of maintenance.

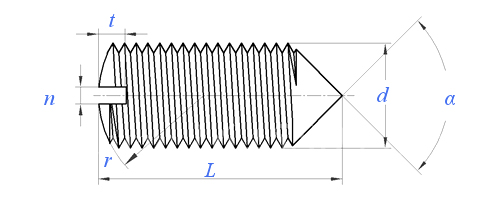

Dimensions unit: inch
|
Thread size |
0# |
1# |
2# |
3# |
4# |
5# |
6# |
8# |
10# |
|
|
r |
0.060 |
0.073 |
0.086 |
0.099 |
0.112 |
0.125 |
0.138 |
0.164 |
0.190 |
|
|
n |
Max. |
0.014 |
0.016 |
0.018 |
0.020 |
0.024 |
0.026 |
0.028 |
0.032 |
0.035 |
|
Min. |
0.010 |
0.012 |
0.014 |
0.016 |
0.018 |
0.020 |
0.022 |
0.026 |
0.029 |
|
|
t |
Max. |
0.020 |
0.020 |
0.025 |
0.028 |
0.031 |
0.036 |
0.040 |
0.046 |
0.053 |
|
Min. |
0.016 |
0.016 |
0.019 |
0.022 |
0.025 |
0.026 |
0.030 |
0.036 |
0.043 |
|
|
Y ③ |
5/64 |
3/32 |
7/64 |
1/8 |
5/32 |
3/16 |
3/16 |
1/4 |
1/4 |
|
|
Thread size |
12# |
1/4 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
3/4 |
|
|
r |
0.042 |
0.049 |
0.055 |
0.068 |
0.076 |
0.086 |
0.096 |
0.107 |
0.134 |
|
|
n |
Max. |
0.035 |
0.041 |
0.047 |
0.060 |
0.068 |
0.076 |
0.086 |
0.097 |
0.124 |
|
Min. |
0.061 |
0.068 |
0.083 |
0.099 |
0.114 |
0.130 |
0.146 |
0.161 |
0.193 |
|
|
t |
Max. |
0.051 |
0.058 |
0.073 |
0.089 |
0.104 |
0.120 |
0.136 |
0.151 |
0.183 |
|
Min. |
5/16 |
5/16 |
3/8 |
7/16 |
1/2 |
9/16 |
5/8 |
3/4 |
7/8 |
|
|
Y ③ |
0.216 |
0.250 |
0.312 |
0.375 |
0.438 |
0.500 |
0.562 |
0.625 |
0.750 |
|
