DIN 6319 (G):2001 Type G Conical Seat Washer is used in clamping connections requiring angular compensation. The conical surface can work with a matching spherical or self-aligning washer to improve bolt loading when the clamped surface is inclined.
This product is commonly applied in fixtures, machine-tool clamping, mold fixing, welded structures, and mechanical assemblies with irregular support surfaces. By adjusting the bearing angle, it helps reduce the negative effects of eccentric loading on the bolt and workpiece surface.
Selection should be coordinated with the matching washer and bolt size, while material and surface treatment should be chosen according to load, surface hardness, and corrosion requirements to ensure stable operation of the clamping system.

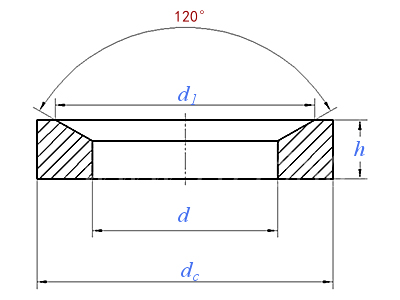

Dimensions unit: inch
|
Applicable thread |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M20 |
M24 |
M30 |
||
|
d |
Min. = nominal (H13) |
7.1 |
9.6 |
12 |
14.2 |
16.5 |
19 |
23.2 |
28 |
35 |
|
|
Max. |
7.32 |
9.82 |
12.27 |
14.47 |
16.77 |
19.33 |
23.53 |
28.33 |
35.39 |
||
|
dc |
17 |
24 |
30 |
36 |
40 |
44 |
50 |
60 |
68 |
||
|
d1 |
11 |
14.5 |
18.5 |
20 |
24.8 |
26 |
31 |
37 |
49 |
||
|
h |
4 |
5 |
5 |
6 |
6 |
7 |
8 |
10 |
12 |
||
|
Weight of 100 pieces (steel)≈kg |
0.56 |
1.3 |
1.86 |
3.7 |
4.8 |
7 |
9.4 |
16.9 |
23.8 |
||
① Material:
Alloy steel, manufacturer's choice grade; hardness: 350+80 HV30
