ASME/ANSI B18.8.1:2000 Clevis Pin features a clevis pin structure, making it suitable for removable connections in clevis joints, hinges, and pivoting assemblies.
The pin acts as a rotating or oscillating support in the hole, and with washers and cotter pins it can be retained against axial removal. This structure supports efficient assembly while balancing joint stability, load distribution, and convenient maintenance, making it practical for standardized purchasing and volume production.
This product can be used in hydraulic cylinder joints, linkage mechanisms, construction machinery, agricultural attachments, and rigging components. Diameter, effective length, hole position, and surface finish can be selected to meet requirements for corrosion protection, wear resistance, assembly efficiency, and long-term reliability.

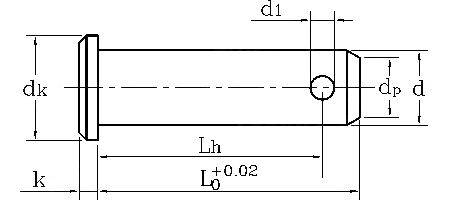

Unit:inch
|
d |
dk |
k |
d1 |
Lh |
dp |
L |
|||||||
|
Nominal diameter |
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
|
|
3/16 |
0.186 |
0.181 |
0.32 |
0.30 |
0.07 |
0.05 |
0.088 |
0.073 |
0.504 |
0.484 |
0.15 |
0.14 |
0.58 |
|
1/4 |
0.248 |
0.243 |
0.38 |
0.36 |
0.10 |
0.08 |
0.088 |
0.073 |
0.692 |
0.672 |
0.21 |
0.2 |
0.77 |
|
5/16 |
0.311 |
0.306 |
0.44 |
0.42 |
0.10 |
0.08 |
0.119 |
0.104 |
0.832 |
0.812 |
0.26 |
0.25 |
0.94 |
|
3/8 |
0.373 |
0.368 |
0.51 |
0.49 |
0.13 |
0.11 |
0.119 |
0.104 |
0.958 |
0.938 |
0.33 |
0.32 |
1.06 |
|
7/16 |
0.436 |
0.431 |
0.57 |
0.55 |
0.16 |
0.14 |
0.119 |
0.104 |
1.082 |
1.062 |
0.39 |
0.38 |
1.19 |
|
1/2 |
0.496 |
0.491 |
0.63 |
0.61 |
0.16 |
0.14 |
0.151 |
0.136 |
1.223 |
1.203 |
0.44 |
0.43 |
1.36 |
|
5/8 |
0.621 |
0.616 |
0.82 |
0.80 |
0.21 |
0.19 |
0.151 |
0.136 |
1.473 |
1.453 |
0.56 |
0.55 |
1.61 |
|
3/4 |
0.746 |
0.741 |
0.94 |
0.92 |
0.26 |
0.24 |
0.182 |
0.167 |
1.739 |
1.719 |
0.68 |
0.67 |
1.91 |
|
7/8 |
0.871 |
0.866 |
1.04 |
1.02 |
0.32 |
0.30 |
0.182 |
0.167 |
1.989 |
1.969 |
0.8 |
0.79 |
2.16 |
|
1 |
0.996 |
0.991 |
1.19 |
1.17 |
0.35 |
0.33 |
0.182 |
0.167 |
2.239 |
2.219 |
0.93 |
0.92 |
2.41 |
