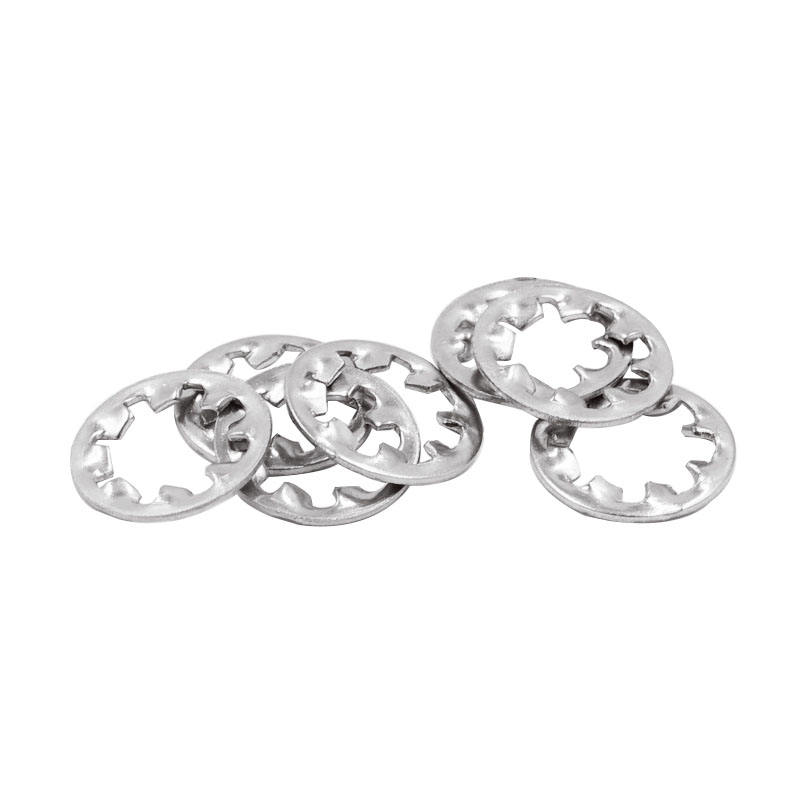

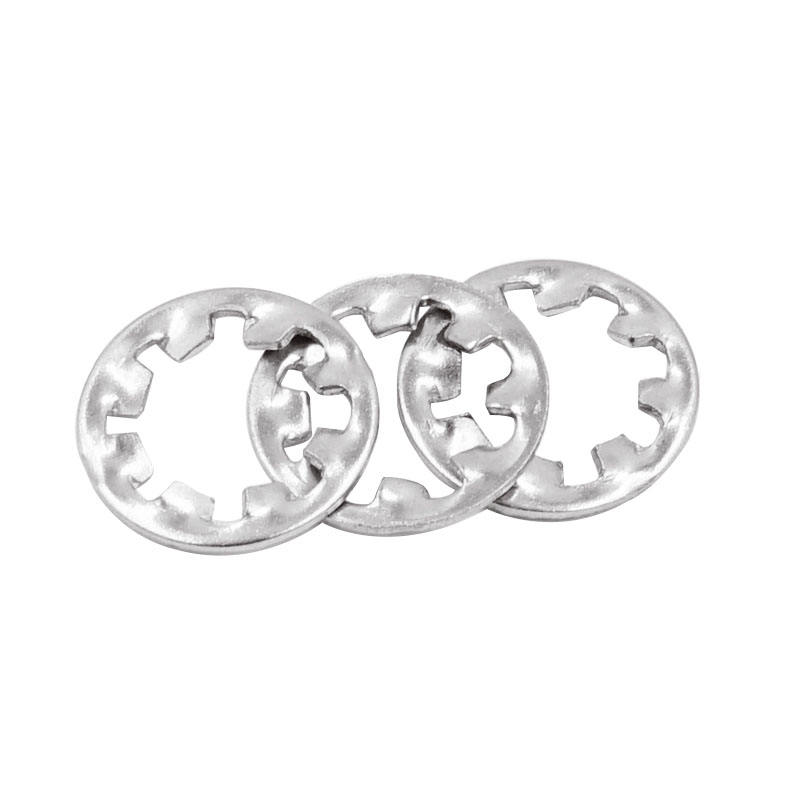

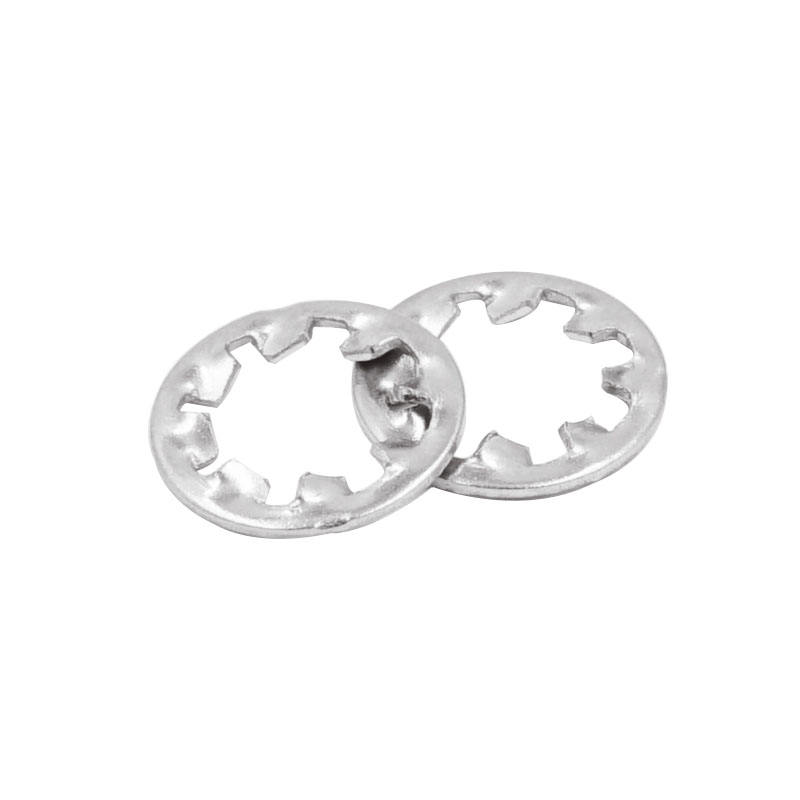

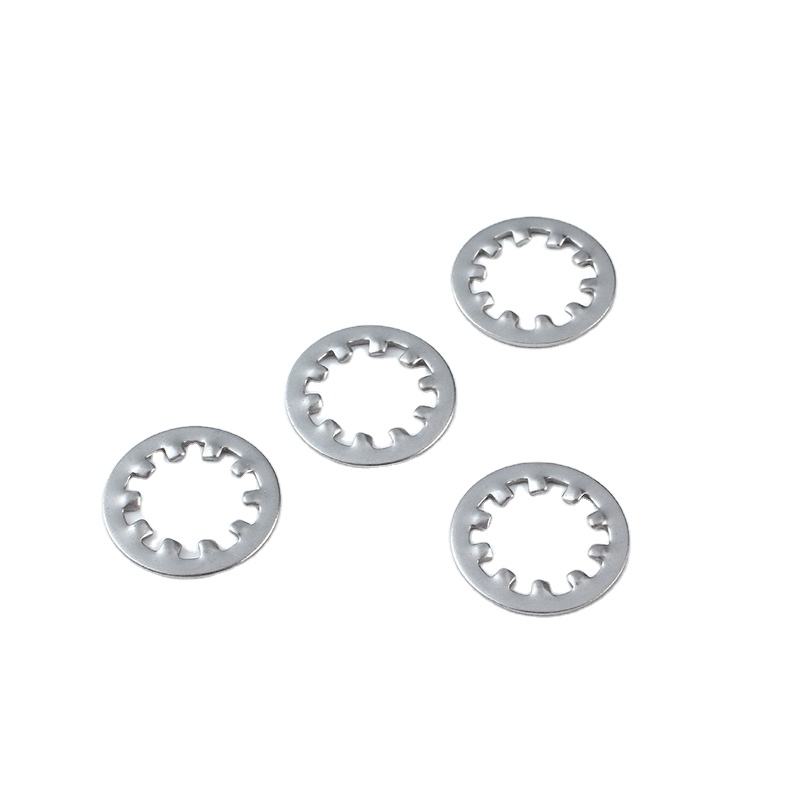

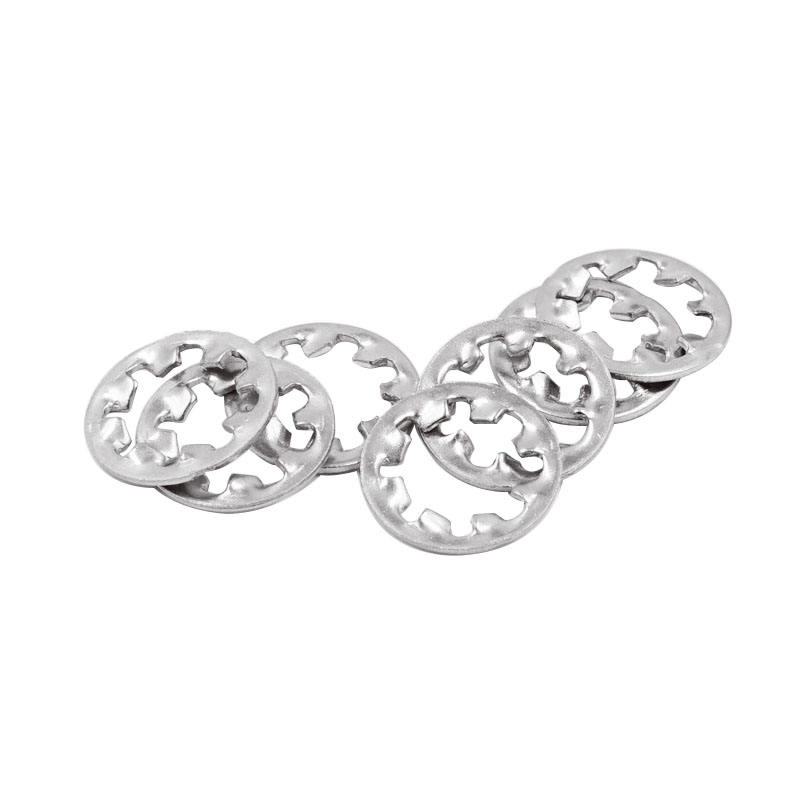

DIN 6797 (J):1988 Internal Tooth Lock Washer has teeth around the inner hole and is suitable for joints with small screw heads or limited outer clearance. After tightening, the internal teeth bite into the contact surface and help improve resistance to loosening.
The product can be used in electrical components, instrument assembly, small machinery, terminal connections, and thin-sheet fixing. The internal-tooth design usually has less visual impact on the outside edge, making it suitable where a clean outer appearance or small-head fastener compatibility is required.
Material and surface treatment can be chosen according to thread size, conductivity requirement, and working environment, supporting stable contact while meeting rust-protection and maintenance needs.

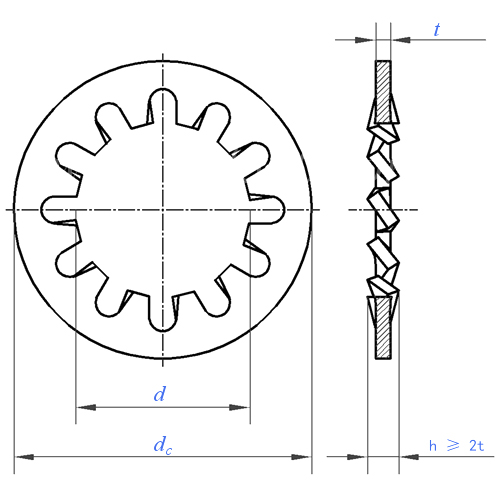

Dimensions unit: mm
|
Specification |
2.2 |
2.7 |
3.2 |
3.7 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
||
|
d |
Min.=Nominal |
2.2 |
2.7 |
3.2 |
3.7 |
4.3 |
5.3 |
6.4 |
7.4 |
8.4 |
10.5 |
|
|
Max. |
2.34 |
2.84 |
3.38 |
3.88 |
4.48 |
5.48 |
6.62 |
7.62 |
8.62 |
10.77 |
||
|
dc |
Max.=Nominal |
4.5 |
5.5 |
6 |
7 |
8 |
10 |
11 |
12.5 |
15 |
18 |
|
|
Min. |
4.2 |
5.2 |
5.7 |
6.64 |
7.64 |
9.64 |
10.57 |
12.07 |
14.57 |
17.57 |
||
|
t |
0.3 |
0.4 |
0.4 |
0.5 |
0.5 |
0.6 |
0.7 |
0.8 |
0.8 |
0.9 |
||
|
Number of teeth |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
8 |
9 |
||
|
Weight per thousand pieces kg |
0.04 |
0.045 |
0.045 |
0.085 |
0.1 |
0.2 |
0.25 |
0.35 |
0.55 |
0.9 |
||
|
Applicable thread |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
||
|
Specification |
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
||
|
d |
Min.=Nominal |
13 |
15 |
17 |
19 |
21 |
23 |
25 |
28 |
31 |
|
|
Max. |
13.27 |
15.27 |
17.27 |
19.33 |
21.33 |
23.33 |
25.33 |
28.33 |
31.39 |
||
|
dc |
Max.=Nominal |
20.5 |
24 |
26 |
30 |
33 |
36 |
38 |
44 |
48 |
|
|
Min. |
19.98 |
23.48 |
25.48 |
29.48 |
32.38 |
35.38 |
37.38 |
43.38 |
47.38 |
||
|
t |
1 |
1 |
1.2 |
1.4 |
1.4 |
1.5 |
1.5 |
1.6 |
1.6 |
||
|
Number of teeth |
10 |
10 |
12 |
12 |
12 |
14 |
14 |
14 |
14 |
||
|
Weight per thousand pieces kg |
1.2 |
1.9 |
2.4 |
3.7 |
4.1 |
6 |
6.5 |
8.5 |
9.5 |
||
|
Applicable thread |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
M27 |
M30 |
||
