ASME/ANSI B18.6.1 (T2):1997 Countersunk Head Slotted Wood Screw combines a U.S.-standard slotted countersunk head and wood screw thread and is suitable for wood assemblies requiring ASME/ANSI compatibility and flush installation.
The slotted drive suits traditional tools, the countersunk head conceals protrusion, and the thread form is intended to hold in timber during pre-drilled or direct installation. Compared with ordinary fasteners, this form places more emphasis on controllable installation, surface protection, and efficient management of matching parts for engineering projects requiring stable supply.
It is commonly used in export furniture, timber interiors, door and window hardware, wooden boxes, and repair spare parts. According to drawings or service conditions, inch dimensions, head diameter, and corrosion-resistant finishes can be selected to improve overall fastening performance and service life.

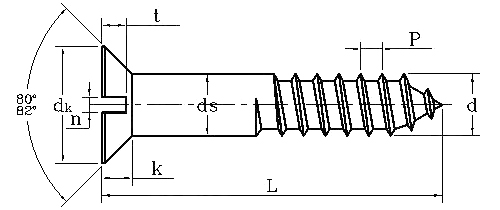

Unit:inch
|
d Nominal diameter |
dk |
k |
n |
t |
|||||
|
max |
min |
max |
min |
max |
min | ||||
|
#0 |
0.06 |
0.119 |
0.099 |
0.035 |
0.023 |
0.016 |
0.015 |
0.010 |
|
|
#1 |
0.073 |
0.146 |
0.123 |
0.043 |
0.026 |
0.019 |
0.019 |
0.012 |
|
|
#2 |
0.086 |
0.172 |
0.147 |
0.051 |
0.031 |
0.023 |
0.023 |
0.015 |
|
|
#3 |
0.099 |
0.199 |
0.171 |
0.059 |
0.035 |
0.027 |
0.027 |
0.017 |
|
|
#4 |
0.112 |
0.225 |
0.195 |
0.067 |
0.039 |
0.031 |
0.030 |
0.020 |
|
|
#5 |
0.125 |
0.252 |
0.220 |
0.075 |
0.043 |
0.035 |
0.034 |
0.022 |
|
|
#6 |
0.138 |
0.279 |
0.244 |
0.083 |
0.048 |
0.039 |
0.038 |
0.024 |
|
|
#7 |
0.151 |
0.305 |
0.268 |
0.091 |
0.048 |
0.039 |
0.041 |
0.027 |
|
|
#8 |
0.164 |
0.332 |
0.292 |
0.100 |
0.054 |
0.045 |
0.045 |
0.029 |
|
|
#9 |
0.177 |
0.358 |
0.316 |
0.108 |
0.054 |
0.045 |
0.049 |
0.032 |
|
|
#10 |
0.19 |
0.385 |
0.340 |
0.116 |
0.060 |
0.050 |
0.053 |
0.034 |
|
|
#12 |
0.216 |
0.438 |
0.389 |
0.132 |
0.067 |
0.056 |
0.060 |
0.039 |
|
|
#14 |
0.242 |
0.507 |
0.452 |
0.153 |
0.075 |
0.064 |
0.070 |
0.046 |
|
|
#16 |
0.268 |
0.544 |
0.485 |
0.164 |
0.075 |
0.064 |
0.075 |
0.049 |
|
|
#18 |
0.294 |
0.635 |
0.568 |
0.191 |
0.084 |
0.072 |
0.083 |
0.054 |
|
|
#20 |
0.32 |
0.650 |
0.582 |
0.196 |
0.084 |
0.072 |
0.090 |
0.059 |
|
|
#24 |
0.372 |
0.762 |
0.685 |
0.230 |
0.094 |
0.081 |
0.106 |
0.070 |
|
