ASME/ANSI B18.6.1 (T10):1997 Pan Head Slotted Wood Screw
ASME/ANSI B18.6.1 (T10):1997 Pan Head Slotted Wood Screw features a slotted pan head with wood screw threading, making it suitable for wood parts, boards, and mounting hardware under the U.S. standard system.
The pan head provides a broad bearing surface for clamping metal plates, hinges, or accessories, while the slot drive is convenient for slow manual installation and service removal. This structure supports efficient assembly while balancing joint stability, load distribution, and convenient maintenance, making it practical for standardized purchasing and volume production.
This product can be used in furniture hardware, wooden door fittings, decorative strips, wood frames, and light mounting parts. Inch sizes, surface colors, and material configurations can be selected to meet requirements for corrosion protection, wear resistance, assembly efficiency, and long-term reliability.

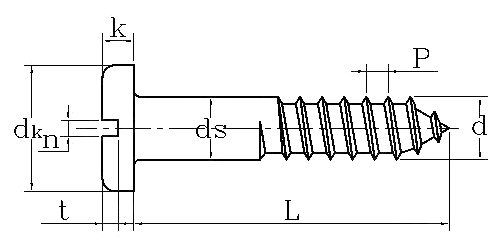

Unit: inch
|
Nominal diameter d |
dk |
k |
n |
t |
||||||||
|
max |
min |
max |
min |
max |
min |
max |
min |
|||||
|
#0 |
0.06 |
0.116 |
0.104 |
0.039 |
0.031 |
0.023 |
0.016 |
0.022 |
0.014 |
|||
|
#1 |
0.073 |
0.142 |
0.13 |
0.046 |
0.038 |
0.026 |
0.019 |
0.027 |
0.018 |
|||
|
#2 |
0.086 |
0.167 |
0.155 |
0.053 |
0.045 |
0.031 |
0.023 |
0.031 |
0.022 |
|||
|
#3 |
0.099 |
0.193 |
0.18 |
0.06 |
0.051 |
0.035 |
0.027 |
0.035 |
0.027 |
|||
|
#4 |
0.112 |
0.219 |
0.205 |
0.068 |
0.058 |
0.039 |
0.031 |
0.04 |
0.03 |
|||
|
#5 |
0.125 |
0.245 |
0.231 |
0.075 |
0.065 |
0.043 |
0.035 |
0.045 |
0.034 |
|||
|
#6 |
0.138 |
0.27 |
0.256 |
0.082 |
0.072 |
0.048 |
0.039 |
0.05 |
0.037 |
|||
|
#7 |
0.151 |
0.296 |
0.281 |
0.089 |
0.079 |
0.048 |
0.039 |
0.054 |
0.041 |
|||
|
#8 |
0.164 |
0.322 |
0.306 |
0.096 |
0.085 |
0.054 |
0.045 |
0.058 |
0.045 |
|||
|
#9 |
0.177 |
0.348 |
0.331 |
0.103 |
0.092 |
0.054 |
0.045 |
0.063 |
0.049 |
|||
|
#10 |
0.190 |
0.373 |
0.357 |
0.11 |
0.099 |
0.06 |
0.05 |
0.068 |
0.053 |
|||
|
#12 |
0.216 |
0.425 |
0.407 |
0.125 |
0.112 |
0.067 |
0.056 |
0.077 |
0.061 |
|||
|
#14 |
0.242 |
0.492 |
0.473 |
0.144 |
0.13 |
0.075 |
0.064 |
0.087 |
0.07 |
|||
|
#16 |
0.268 |
0.528 |
0.508 |
0.153 |
0.139 |
0.075 |
0.064 |
0.093 |
0.074 |
|||
|
#18 |
0.294 |
0.615 |
0.594 |
0.178 |
0.162 |
0.084 |
0.072 |
0.106 |
0.085 |
|||
|
#20 |
0.320 |
0.631 |
0.608 |
0.182 |
0.166 |
0.084 |
0.072 |
0.108 |
0.087 |
|||
|
#24 |
0.372 |
0.74 |
0.716 |
0.212 |
0.195 |
0.094 |
0.081 |
0.124 |
0.1 |
|||
