ASME/ANSI B18.6.9:2010 Low Type Wing Nut

ASME/ANSI B18.6.9:2010 Low Type Die-Cast Wing Nut offers an integrated molded appearance and comfortable grip, making it suitable for hand-operated connections where a finished look is important. The low-profile design helps reduce protrusion and supports use in compact locations.

It can be used in furniture hardware, display equipment, light machinery, instrument housings, and adjustment mechanisms. The die-cast form provides advantages in shape consistency and surface-finish appearance, making it suitable for visible fastening points.

It can be supplied according to material, thread, and finish requirements to meet decorative, corrosion-protection, and repeated-removal needs.

Contact Us

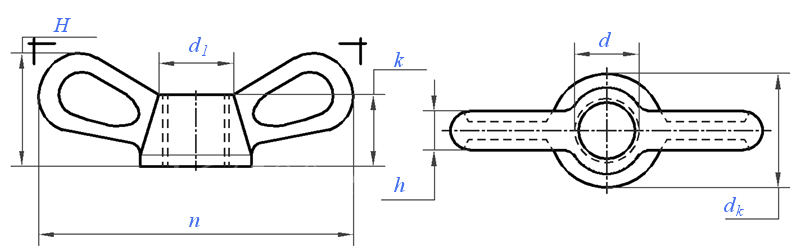

Dimensions unit: inch

Thread size d

5#

6#

8#

10#

12#

1/4

5/16

3/8

d

0.125

0.138

0.164

0.19

0.216

0.25

0.3125

0.375

PP

40

32

32

24 / 32

24

20

18

16

n

Max.

0.82

0.82

1.01

1.01

1.2

1.2

1.51

1.89

Min.

0.8

0.8

0.99

0.99

1.18

1.18

1.49

1.86

H

Max.

0.25

0.25

0.28

0.28

0.32

0.32

0.36

0.58

Min.

0.23

0.23

0.27

0.27

0.31

0.31

0.35

0.55

h

Max.

0.09

0.09

0.11

0.11

0.12

0.12

0.14

0.2

Min.

0.08

0.08

0.09

0.09

0.11

0.11

0.12

0.17

d1

Max.

0.21

0.21

0.29

0.29

0.38

0.38

0.44

0.44

Min.

0.19

0.19

0.28

0.28

0.37

0.37

0.43

0.43

dk

Max.

0.26

0.26

0.36

0.36

0.44

0.44

0.51

0.63

Min.

0.24

0.24

0.34

0.34

0.43

0.43

0.49

0.62

k

Max.

0.17

0.17

0.19

0.19

0.22

0.22

0.24

0.37

Min.

0.15

0.15

0.18

0.18

0.2

0.2

0.23

0.35

① Materials can be used to manufacture this standard part using the relevant grades below or similar grades.
