ASME/ANSI B18.6.2 (T5 cup):1998 Slotted Cup Point Set Screw

ASME/ANSI B18.6.2 (T5 cup):1998 Slotted Cup Point Set Screw is used for shaft positioning and locking connections under the U.S. standard system. The cup point provides a strong gripping effect during tightening and improves stability of the mating component in operation.

This structure is suitable for fixing collars, gears, knobs, adjustment rings, and transmission accessories, especially where a small screw size must deliver reliable holding performance. The slotted drive enables assembly and field adjustment with common tools.

It is suitable for spare parts, export machinery, instrument components, and light to medium-duty industrial equipment. Different sizes and materials can be supplied according to drawings, with zinc plating, black oxide, or stainless steel options for protection and appearance.

Contact Us

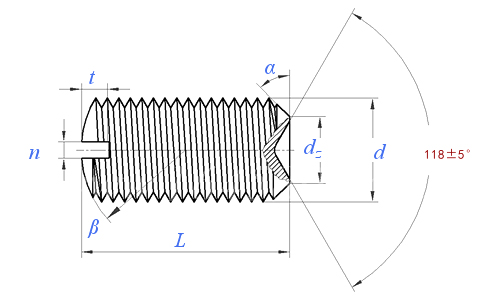

Dimensions unit: inch

Thread size

0#

1#

2#

3#

4#

5#

6#

8#

10#

d

0.0600

0.0730

0.0860

0.0990

0.1120

0.1250

0.1380

0.1640

0.1900

β ②

0.060

0.073

0.086

0.099

0.112

0.125

0.138

0.164

0.190

n

Max.

0.014

0.016

0.018

0.020

0.024

0.026

0.028

0.032

0.035

Min.

0.010

0.012

0.014

0.016

0.018

0.020

0.022

0.026

0.029

t

Max.

0.020

0.020

0.025

0.028

0.031

0.036

0.040

0.046

0.053

Min.

0.016

0.016

0.019

0.022

0.025

0.026

0.030

0.036

0.043

dz

Max.

0.040

0.049

0.057

0.066

0.075

0.083

0.092

0.109

0.127

Min.

0.037

0.045

0.053

0.062

0.070

0.078

0.087

0.103

0.120

Y ①

5/64

3/32

7/64

1/8

5/32

3/16

3/16

1/4

1/4



Thread size

12#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

d

0.2160

0.2500

0.3125

0.3750

0.4375

0.5000

0.5625

0.6250

0.7500

β ②

0.216

0.250

0.312

0.375

0.438

0.500

0.562

0.625

0.750

n

Max.

0.042

0.049

0.055

0.068

0.076

0.086

0.096

0.107

0.134

Min.

0.035

0.041

0.047

0.060

0.068

0.076

0.086

0.097

0.124

t

Max.

0.061

0.068

0.083

0.099

0.114

0.130

0.146

0.161

0.193

Min.

0.051

0.058

0.073

0.089

0.104

0.120

0.136

0.151

0.183

dz

Max.

0.144

0.156

0.203

0.250

0.297

0.344

0.391

0.469

0.562

Min.

0.137

0.149

0.195

0.241

0.287

0.334

0.379

0.456

0.549

Y ①

5/16

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8
