DIN 984:2021 Internal Retaining Ring

DIN 984:2021 Internal Retaining Ring with Flange is installed in an internal bore groove to axially retain bearings, bushings, or internal components. The flanged design provides a more defined support boundary and is suitable for bore assemblies requiring reliable end positioning.

It is commonly used in gearbox housings, pump bodies, cylinders, bearing seats, and mechanical transmission components. The internal retaining ring saves space and simplifies the assembly structure without adding external fasteners.

Selection should consider bore diameter, groove geometry, tool access, and material elasticity. Rust-resistant or wear-resistant treatment can be specified to improve positioning stability during long-term service.

Contact Us
PREV：DIN 471 (-1):2011 External Fastener NEXT：DIN 5417 (M3200/SP):2011 Fastener

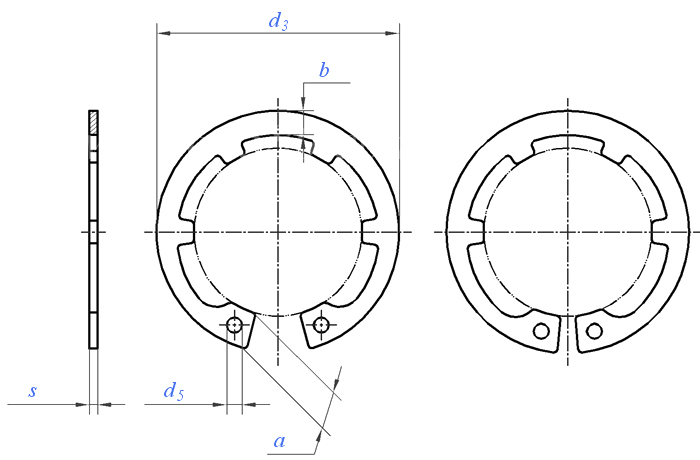

Dimensions unit: mm

Apertured0 16 17 18 19 20 22 23 24 25 26 27 28 30
s Max.=Nominal 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Min. 0.94 0.94 0.94 0.94 0.94 0.94 1.14 1.14 1.14 1.14 1.14 1.14 1.14
d3 Nominal 17.3 18.3 19.5 20.5 21.5 23.5 24.6 25.9 26.9 28.5 29.1 30.1 32.1
Max. 17.66 18.72 19.92 20.92 21.92 23.92 25.02 26.32 27.32 28.92 29.6 30.6 32.6
Min. 17.2 18.17 19.37 20.37 21.37 23.37 24.39 25.69 26.69 28.29 28.85 29.85 31.85
a Max. 3.4 3.7 3.8 3.8 3.9 4 4.1 4.2 4.4 4.4 4.5 4.9 4.9
b ② ≈ 2 2.1 2.2 2.2 2.3 2.5 2.6 2.6 2.7 2.8 2.9 2.9 3
d5 Min. 1.7 1.7 1.7 2 2 2 2 2 2 2 2 2 2
Thousand piece weight (steel) ≈kg 0.72 0.8 0.9 0.99 1.06 1.28 1.48 1.6 1.72 2 2 2.1 2.35



Apertured0 32 35 36 38 40 42 44 45 47 48 50 52 55
s Max.=Nominal 1.2 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2
Min. 1.14 1.44 1.44 1.44 1.69 1.69 1.69 1.69 1.69 1.69 1.93 1.93 1.93
d3 Nominal 34.4 37.8 38.8 40.8 43.5 45.5 47.5 48.5 50.5 51.5 54.2 56.2 59.2
Max. 34.9 38.3 39.3 41.3 44.4 46.4 48.4 49.4 51.6 52.6 55.3 57.3 60.3
Min. 34.15 37.55 38.55 40.55 43.11 45.11 47.11 48.11 50.04 51.04 53.74 55.74 58.74
a Max. 5.1 5.5 5.6 6.1 7.2 7.2 7.2 7.2 7.2 7.2 8.2 8.2 8.2
b ② ≈ 3.2 3.4 3.5 3.7 3.9 4.1 4.2 4.3 4.4 4.5 4.6 4.7 5
d5 Min. 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Thousand piece weight (steel) ≈kg 2.5 4 4.15 4.4 5.3 6 6.45 6.6 6.9 7.5 8.5 9.4 9.75



Apertured0 57 58 60 62 65 67 70 72 75 80 85 90 95
s Max.=Nominal 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3
Min. 1.93 1.93 1.93 1.93 2.43 2.43 2.43 2.43 2.43 2.43 2.92 2.92 2.92
d3 Nominal 61.2 62.2 64.2 66.2 69.2 71.5 74.5 76.5 79.5 85.5 90.5 95.5 100.5
Max. 62.3 63.3 65.3 67.3 70.3 72.6 75.6 77.6 80.6 86.8 91.8 96.8 101.8
Min. 60.74 61.74 63.74 65.74 68.74 71.04 74.04 76.04 79.04 84.96 89.96 94.96 99.96
a Max. 8.2 8.2 8.2 8.2 9.5 10.2 10.2 10.2 10.2 10.2 12.2 12.2 12.2
b ② ≈ 5.1 5.2 5.4 5.5 5.8 6 6.2 6.4 6.6 7 7.2 7.6 8.1
d5 Min. 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3.5 3.5 3.5
Thousand piece weight (steel) ≈kg 11.6 12 12.7 12.8 16.7 18.6 20.2 21.2 22.6 25 30.1 35.5 40



Apertured0 100 110 115 120 125 130 140 150 160 170
s Max.=Nominal 3 4 4 4 4 4 4 4 4 4
Min. 2.92 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9 3.9
d3 Nominal 105.5 117 122 127 132 137 147 158 169 179.5
Max. 106.8 118.3 123.5 128.5 133.5 138.5 148.5 159.5 170.5 181
Min. 104.96 116.46 121.37 126.37 131.37 136.37 146.37 157.37 168.37 178.87
a Max. 12.2 12.2 12.2 12.2 12.2 12.2 14.2 14.2 14.2 14.2
b ② ≈ 8.4 9 9.3 9.7 10 10.2 10.7 11.2 11.6 12.2
d5 Min. 3.5 3.5 3.5 3.5 4 4 4 4 4 4
Thousand piece weight (steel) ≈kg 43.5 73 82 87 92 102 112 123 133 145

① Material:

Spring steel C67S or C75S according to standard DIN EN 10132-4 (selected by manufacturer)

Hardness:

Shaft diameter ≤ 48 mm, 470 HV to 580 HV or 47 HRC to 54 HRC;

48 mm < shaft diameter ≤ 140mm, 435 HV to 530 HV or 44 HRC to 51 HRC.

Note: Hardness value is converted according to DIN EN ISO 18265

② Dimension b shall not exceed dimension a (max).
