DIN 471 (-1):2011 External Fastener

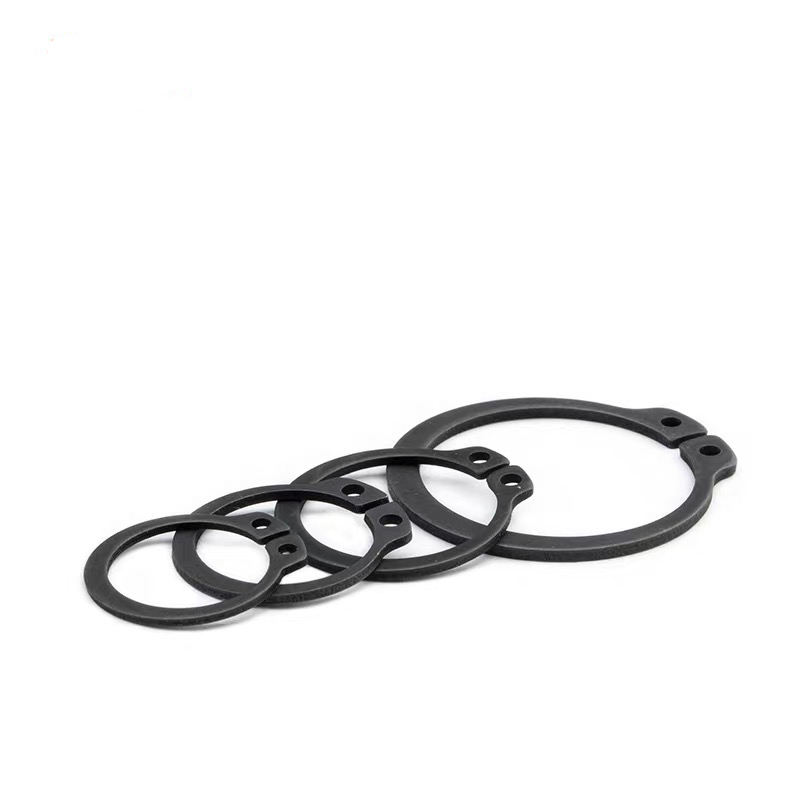

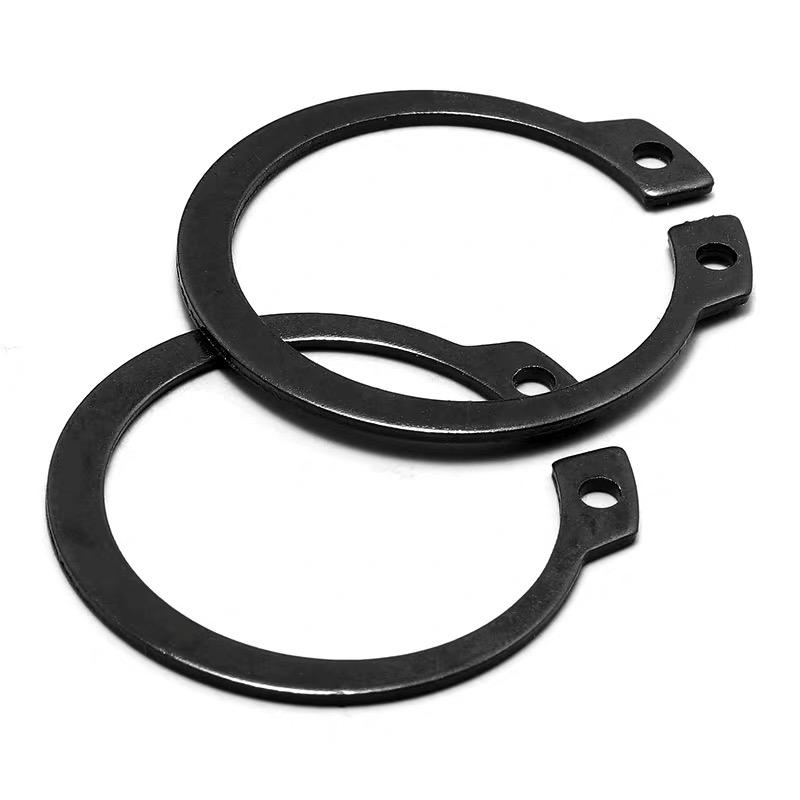

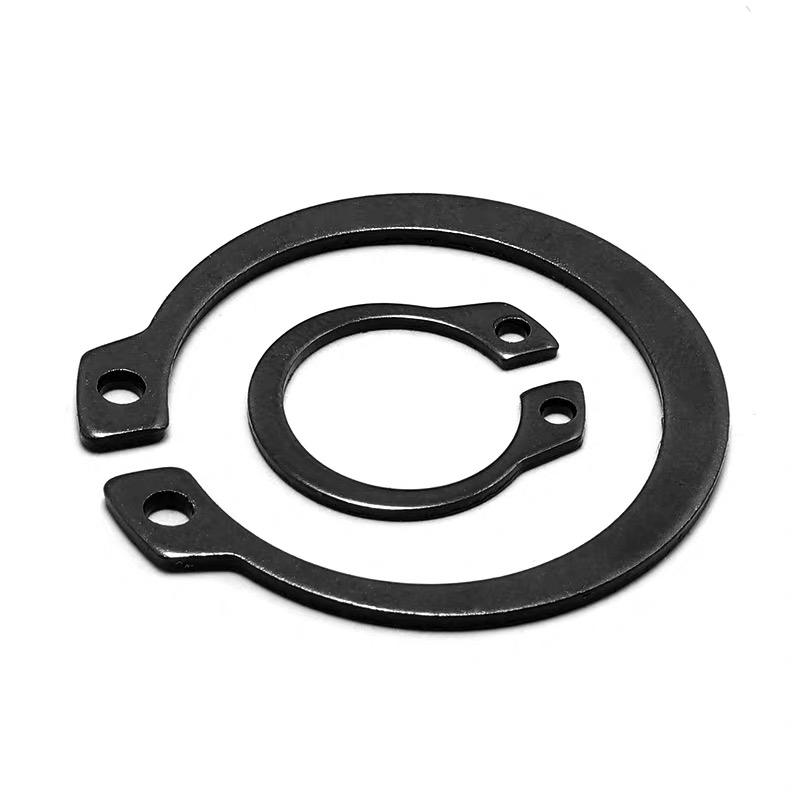

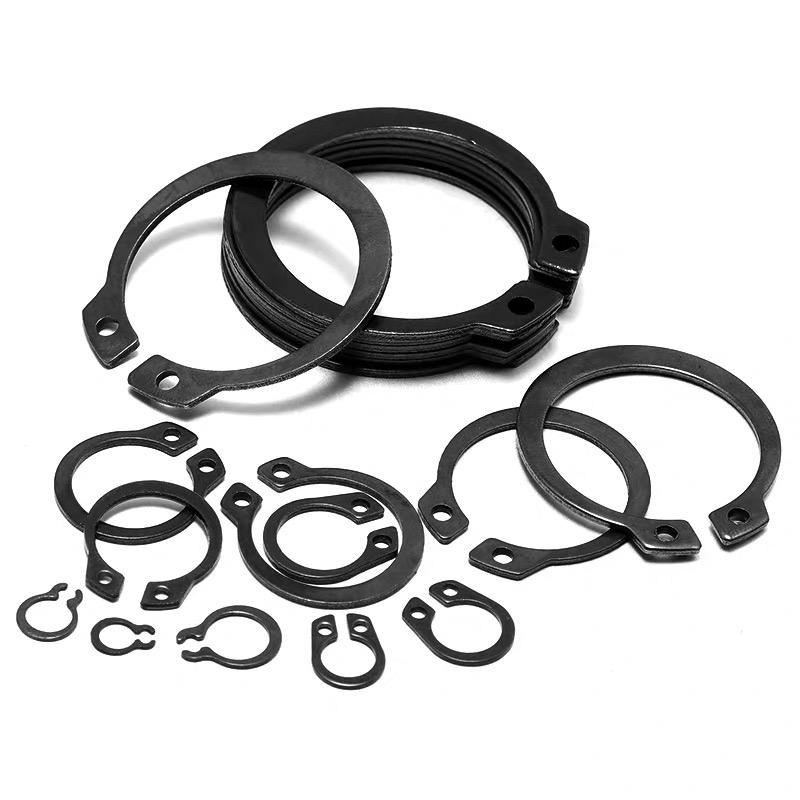

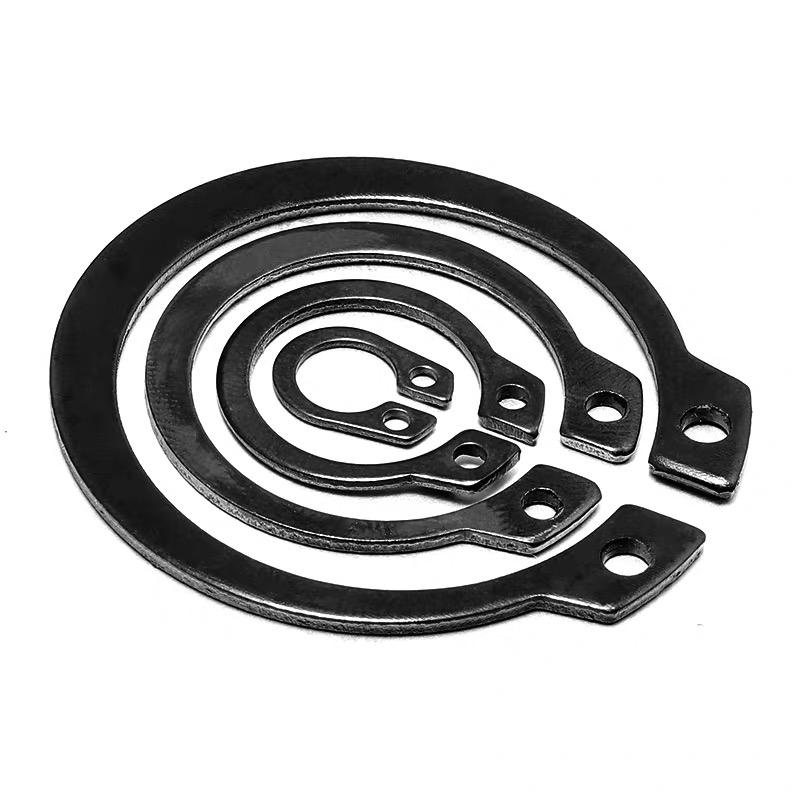

DIN 471 (-1):2011 External Retaining Ring is installed in a groove on a shaft to provide axial positioning and retention. The external ring forms a reliable shoulder on shaft components, preventing bearings, gears, washers, or sleeves from moving axially.

It is commonly used in motors, gear reducers, transmission shafts, pumps, automotive components, and general machinery. Compared with threaded locking components, a retaining ring offers compact installation and is suitable for axial retention designs requiring limited space and quick assembly or removal.

The proper size should be selected according to shaft diameter, groove dimensions, spring material, and corrosion-resistance requirements to maintain stable retaining performance during rotation, vibration, and maintenance disassembly.

Contact Us
PREV：No previous product NEXT：DIN 984:2021 Internal Retaining Ring

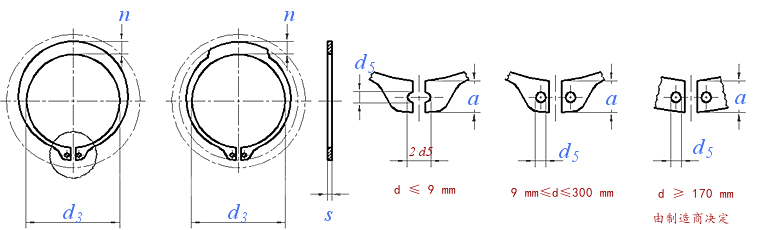

Dimensions unit: mm

Nominal diameter d

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

s

Max.

0.4

0.4

0.6

0.7

0.8

0.8

1

1

1

1

1

1

1

1

1

Min.

0.35

0.35

0.55

0.65

0.75

0.75

0.94

0.94

0.94

0.94

0.94

0.94

0.94

0.94

0.94

d3

Max.

2.74

3.74

4.74

5.64

6.56

7.46

8.46

9.4

10.3

11.1

12

13

13.9

14.8

15.8

Min.

2.55

3.55

4.55

5.45

6.32

7.22

8.22

8.94

9.84

10.64

11.54

12.54

13.44

14.34

15.34

d5

Min.

1

1

1

1.2

1.2

1.2

1.2

1.5

1.5

1.7

1.7

1.7

1.7

1.7

1.7

a

Max.

1.9

2.2

2.5

2.7

3.1

3.2

3.3

3.3

3.3

3.3

3.4

3.5

3.6

3.7

3.8

n

≈

0.8

0.9

1.1

1.3

1.4

1.5

1.7

1.8

1.8

1.8

2

2.1

2.2

2.2

2.3

Weight per thousand pieces (steel)≈kg

0.017

0.022

0.066

0.084

0.121

0.158

0.3

0.34

0.41

0.5

0.53

0.64

0.67

0.7

0.82



Nominal diameter d

18

19

20

21

22

24

25

26

28

29

30

32

34

35

36

s

Max.

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.2

1.5

1.5

1.5

1.5

1.5

1.5

1.75

Min.

1.14

1.14

1.14

1.14

1.14

1.14

1.14

1.14

1.44

1.44

1.44

1.44

1.44

1.44

1.69

d3

Max.

16.6

17.6

18.63

19.63

20.63

22.41

23.41

24.41

26.11

27.11

28.11

29.81

31.75

32.45

33.45

Min.

16.14

17.14

18.08

19.08

20.08

21.78

22.78

23.78

25.48

26.48

27.48

29.18

31

31.7

32.7

d5

Min.

2

2

2

2

2

2

2

2

2

2

2

2.5

2.5

2.5

2.5

a

Max.

3.9

3.9

4

4.1

4.2

4.4

4.4

4.5

4.7

4.8

5

5.2

5.4

5.6

5.6

n

≈

2.4

2.5

2.6

2.7

2.8

3

3

3.1

3.2

3.4

3.5

3.6

3.8

3.9

4

Weight per thousand pieces (steel)≈kg

1.11

1.22

1.3

1.42

1.5

1.77

1.9

1.96

2.92

3.2

3.31

3.54

3.8

4

5



Nominal diameter d

38

40

42

45

48

50

52

55

56

58

60

62

63

65

68

s

Max.

1.75

1.75

1.75

1.75

1.75

2

2

2

2

2

2

2

2

2.5

2.5

Min.

1.69

1.69

1.69

1.69

1.69

1.93

1.93

1.93

1.93

1.93

1.93

1.93

1.93

2.43

2.43

d3

Max.

35.45

36.89

38.89

41.89

44.89

46.19

48.19

51.26

52.26

54.26

56.26

58.26

59.26

61.26

63.96

Min.

34.7

35.6

37.6

40.6

43.6

44.9

46.9

49.7

50.7

52.7

54.7

56.7

57.7

59.7

62.4

d5

Min.

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

3

3

a

Max.

5.8

6

6.5

6.7

6.9

6.9

7

7.2

7.3

7.3

7.4

7.5

7.6

7.8

8

n

≈

4.2

4.4

4.5

4.7

5

5.1

5.2

5.4

5.5

5.6

5.8

6

6.2

6.3

6.5

Weight per thousand pieces (steel)≈kg

5.62

6.03

6.5

7.5

7.9

10.2

11.1

11.4

11.8

12.6

12.9

14.3

15.9

18.2

21.8



Nominal diameter d

70

72

75

78

80

82

85

88

90

95

100

105

110

115

120

s

Max.

2.5

2.5

2.5

2.5

2.5

2.5

3

3

3

3

3

4

4

4

4

Min.

2.43

2.43

2.43

2.43

2.43

2.43

2.92

2.92

2.92

2.92

2.92

3.9

3.9

3.9

3.9

d3

Max.

65.96

67.96

70.96

73.96

74.96

76.96

79.96

83.04

85.04

90.04

95.04

98.54

103.54

108.54

113.54

Min.

64.4

66.4

69.4

72.4

73.4

75.4

78.4

81.2

83.2

88.2

93.2

96.7

101.7

106.7

111.7

d5

Min.

3

3

3

3

3

3

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

3.5

a

Max.

8.1

8.2

8.4

8.6

8.6

8.7

8.7

8.8

8.8

9.4

9.6

9.9

10.1

10.6

11

n

≈

6.6

6.8

7

7.3

7.4

7.6

7.8

8

8.2

8.6

9

9.3

9.6

9.8

10.2

Weight per thousand pieces (steel)≈kg

22

22.5

24.6

26.2

27.3

31.2

36.4

41.2

44.5

49

53.7

80

82

84

86



Nominal diameter d

125

130

135

140

145

150

155

160

165

170

175

180

185

190

195

s

Max.

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

Min.

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

3.9

d3

Max.

118.54

123.63

128.63

133.63

138.63

142.63

146.63

151.63

156.13

161.13

166.13

171.03

176.13

181.22

186.22

Min.

116.7

121.5

126.5

131.5

136.5

140.5

144.5

149.5

154

159

164

168.9

174

178.8

183.8

d5

Min.

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

a

Max.

11.4

11.6

11.8

12

12.2

13

13

13.3

13.5

13.5

13.5

14.2

14.2

14.2

14.2

n

≈

10.4

10.7

11

11.2

11.5

11.8

12

12.2

12.5

12.9

12.9

13.5

13.5

14

14

Weight per thousand pieces (steel)≈kg

90

100

104

110

115

120

135

150

160

170

180

190

200

210

220



Nominal diameter d

200

210

220

230

240

250

260

270

280

290

300

s

Max.

4

5

5

5

5

5

5

5

5

5

5

Min.

3.9

4.88

4.88

4.88

4.88

4.88

4.88

4.88

4.88

4.88

4.88

d3

Max.

191.22

198.72

208.72

218.72

228.72

238.72

245.72

255.81

265.81

275.81

285.81

Min.

188.8

196.3

206.3

216.3

226.3

236.3

243.3

253

263

273

283

d5

Min.

4

4

4

4

4

4

5

5

5

5

5

a

Max.

14.2

14.2

14.2

14.2

14.2

14.2

16.2

16.2

16.2

16.2

16.2

n

≈

14

14

14

14

14

14

16

16

16

16

16

Weight per thousand pieces (steel)≈kg

230

248

265

290

310

335

355

375

398

418

440

① Hardness requirements:

Shaft diameter d≤48mm, hardness 470-580 HV or 47-54 HRC

48mm＜shaft diameter d≤200mm, hardness 435-530 HV or 44-51 HRC

200mm＜shaft diameter d≤300mm, hardness 390-470 HV or 40-47 HRC.

② Dimension n shall not exceed the maximum value of dimension a.
