DIN 5417 (M3200/SP):2011 Fastener

DIN 5417 (M3200/SP):2011 Fastener for rolling bearings with ring grooves is used for axial positioning in bearing systems. Its design is intended for grooved bearings or related mounting components and helps prevent unintended displacement of the bearing on the shaft or in the housing.

The product is suitable for motors, gearboxes, precision drives, pumps, and rotating machinery. A retaining ring occupies little space in bearing assemblies and creates a mechanical stop with the groove, helping maintain bearing operating position and assembly clearance.

Selection should consider bearing size, groove dimensions, speed, load, and lubrication environment. Material and surface condition can be matched to corrosion-resistance or cleanliness requirements.

Contact Us
PREV：DIN 984:2021 Internal Retaining Ring NEXT：DIN 6799:2017 E-Clip Retaining Ring

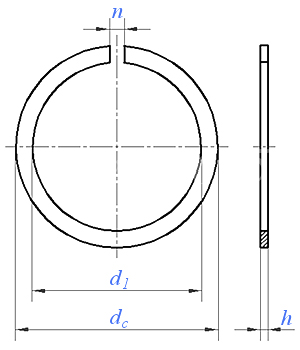

Dimensions unit: mm

Used in  30 32 35 37 40 42 44 47 50 52 55 56 58 62
d1 Min. 27.5 29.5 32.5 34.1 37.4 39 41 43.8 46.8 48.9 51.8 52.6 54.6 58.4
Max. 27.9 29.9 32.9 34.5 37.8 39.5 41.5 44.3 47.3 49.4 52.3 53.2 55.2 59
dc Max. 34.7 36.7 39.7 41.3 44.6 46.3 48.3 52.7 55.7 57.9 60.7 61.7 63.7 67.7
h 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.12 1.7
n ≈ 3 3 3 3 3 3 3 4 4 4 4 4 4 4
Code name SP 30 SP 32 SP 35 SP 37 SP 40 SP 42 SP 44 SP 47 SP 50 SP 52 SP 55 SP 56 SP 58 SP 62
Weight per thousand pieces (steel)≈kg 2.8 3 3.2 3.4 3.6 3.8 4 5.3 5.8 5.9 6.2 6.5 6.7 10.5



Used in  65 68 72 75 80 85 90 95 100 110 115 120 125 130
d1 Min. 61.4 63.6 67.6 70.6 75.6 80.6 85.6 90.6 95.4 105.4 110.4 113.8 118.8 123.8
Max. 62 64.2 68.2 71.2 76.2 81.2 86.2 91.2 96.2 106.2 111.2 114.6 119.6 124.6
dc Max. 70.7 74.6 78.6 81.6 86.6 91.6 96.5 101.6 106.5 116.6 121.6 129.7 134.7 139.7
h 1.7 1.7 1.7 1.7 1.7 1.7 2.46 2.46 2.46 2.46 2.46 2.82 2.82 2.82
n ≈ 4 5 5 5 5 5 5 5 5 5 5 7 7 7
Code name SP 65 SP 68 SP 72 SP 75 SP 80 SP 85 SP 90 SP 95 SP 100 SP 110 SP 115 SP 120 SP 125 SP 130
Weight per thousand pieces (steel)≈kg 11 12.6 14.7 15.3 16.3 17.5 26.6 28.2 29.2 32.8 34.4 60.6 63 65.6



Used in  140 145 150 160 170 180 190 200 210 215 225 230 240 250
d1 Min. 133.4 138.4 143.3 153.3 161.7 171.6 181.4 191.4 201.3 206.3 214.7 219.6 229.6 239.6
Max.
11		 134.6 139.6 144.5 154.5 162.9 172.8 182.8 192.8 202.7 207.7 216.1 221 231 241
dc Max. 149.7 154.7 159.7 169.7 182.9 192.9 202.9 212.9 222.8 227.8 237 242 252 262
h 2.82 2.82 2.82 2.82 3.1 3.1 3.1 3.1 3.1 3.1 3.5 3.5 3.5 3.5
n ≈ 7 7 7 7 10 10 10 10 10 10 10 10 10 10
Code name SP 140 SP 145 SP 150 SP 160 SP 170 SP 180 SP 190 SP 200 SP 210 SP 215 SP 225 SP 230 SP 240 SP 250
Weight per thousand pieces (steel)≈kg 70.6 73 77.2 81 122 128 139 148 156 160 196 200 209 220



Used in  260 270 280 290 300 310 320 340 360 370 380 400
d1 Min. 247.5 257.5 267.5 277.5 284.5 294 304 324 343 353 363 383
Max. 250 260 270 280 287 297 307 327 346 356 366 386
dc Max. 272 282 292 302 314 324 334 354 374 384 394 414
h 3.5 3.5 3.5 3.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
n ≈ 10 10 10 10 10 10 10 10 10 10 10 10
Code name SP 260 SP 270 SP 280 SP 290 SP 300 SP 310 SP 320 SP 340 SP 360 SP 370 SP 380 SP 400
Weight per thousand pieces (steel)≈kg 230 240 250 260 400 412 420 446 475 485 500 525

① Material: spring strip steel with hardness of 450 HV~520 HV
