HB 1 510:1983 Fiber Washer
HB 1 510:1983 Fiber Washer is made from fiber sheet material and is suitable for connection points requiring lightweight separation, cushioning, or insulation. Compared with a metal washer, it reduces direct metal-to-metal contact and can absorb minor surface irregularities.
The product can be used in electrical equipment, instruments, light machinery, insulating supports, and low-load assemblies. Its material characteristics make it more appropriate for anti-scratch, isolation, and protective functions rather than high-strength bearing applications.
Selection should consider temperature, humidity, media exposure, and load level to ensure the washer maintains dimensional stability and the required insulating or cushioning performance during service.

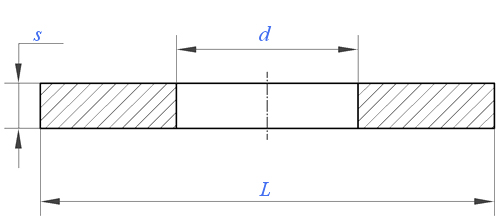

Dimensions unit: inch
| Nominal diameter | 2 | 2.3 | 2.6 | 2.8 | 3 | 3.2 | 3.5 | 3.8 | 4 | 4.2 | 4.5 | 4.8 | 5 | 5.2 | 5.5 | ||
| d | |||||||||||||||||
| d | Max. | 2.1 | 2.4 | 2.7 | 2.9 | 3.1 | 3.32 | 3.62 | 3.92 | 4.12 | 4.32 | 4.62 | 4.92 | 5.12 | 5.32 | 5.62 | |
| Min. | 2 | 2.3 | 2.6 | 2.8 | 3 | 3.2 | 3.5 | 3.8 | 4 | 4.2 | 4.5 | 4.8 | 5 | 5.2 | 5.5 | ||
| s | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Thousand pieces of steel weigh ≈kg | Steel cardboard1.1g/cm3 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| Nominal diameter | 5.8 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | ||
| d | |||||||||||||||||
| d | Max. | 5.92 | 6.12 | 6.65 | 7.15 | 7.65 | 8.15 | 8.65 | 9.15 | 10.15 | 11.18 | 12.18 | 14.18 | 16.18 | 18.18 | 20.21 | |
| Min. | 5.8 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | ||
| s | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Thousand pieces of steel weigh ≈kg | Steel cardboard1.1g/cm3 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| Nominal diameter | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 65 | 70 | ||
| d | |||||||||||||||||
| d | Max. | 22.21 | 24.21 | 27.21 | 30.21 | 33.25 | 36.25 | 39.25 | 42.25 | 45.25 | 48.25 | 52.3 | 56.3 | 60.3 | 65.3 | 70.3 | |
| Min. | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 65 | 70 | ||
| s | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Thousand pieces of steel weigh ≈kg | Steel cardboard1.1g/cm3 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
① The theoretical mass of the gasket is calculated based on the specific gravity of steel cardboard 1.1g/cm3.
② Technical conditions are in accordance with HB 1-511-1983.
