ASME/ANSI B18.6.9:2010 Low Type Round Wing Nut
ASME/ANSI B18.6.9:2010 Low Type Round Wing Nut is used in inch-standard connections where low height and hand operation are both required. The low-profile body reduces protrusion, while the rounded wings maintain comfortable gripping.
It can be used on instrument covers, furniture hardware, light fixtures, access components, and display equipment. For assembly points requiring tool-free removal while controlling overall height, the low round-wing form offers practical value.
It can be configured according to inch thread size, material, and surface finish to meet requirements for appearance, rust protection, and repeated operation.
Unit: inch
|

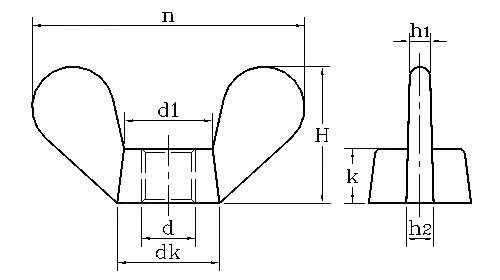

Nominal diameter d |
n |
H |
h1 |
d1 |
dk |
k |
||||||||||
|
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
max |
min |
|||||
|
#5 |
0.78 |
0.72 |
0.36 |
0.30 |
0.13 |
0.10 |
0.28 |
0.22 |
0.31 |
0.28 |
0.22 |
0.16 |
||||
|
#10 |
0.97 |
0.91 |
0.45 |
0.39 |
0.15 |
0.12 |
0.34 |
0.28 |
0.39 |
0.36 |
0.28 |
0.22 |
||||
|
1/4 |
1.16 |
1.09 |
0.56 |
0.50 |
0.17 |
0.14 |
0.41 |
0.34 |
0.47 |
0.44 |
0.34 |
0.28 |
||||
|
5/16 |
1.44 |
1.38 |
0.67 |
0.61 |
0.18 |
0.15 |
0.50 |
0.44 |
0.55 |
0.52 |
0.41 |
0.34 |
||||
|
3/8 |
1.72 |
1.66 |
0.80 |
0.73 |
0.20 |
0.17 |
0.59 |
0.53 |
0.63 |
0.60 |
0.47 |
0.41 |
||||
|
7/16 |
2.00 |
1.94 |
0.91 |
0.84 |
0.21 |
0.18 |
0.69 |
0.62 |
0.71 |
0.68 |
0.53 |
0.47 |
||||
|
1/2 |
2.31 |
2.22 |
1.06 |
0.94 |
0.23 |
0.20 |
0.78 |
0.69 |
0.79 |
0.76 |
0.62 |
0.50 |
||||
|
9/16 |
2.59 |
2.47 |
1.17 |
1.05 |
0.25 |
0.21 |
0.88 |
0.78 |
0.88 |
0.84 |
0.69 |
0.56 |
||||
|
5/8 |
2.84 |
2.72 |
1.31 |
1.19 |
0.27 |
0.23 |
0.94 |
0.84 |
0.96 |
0.92 |
0.75 |
0.62 |
||||
|
3/4 |
3.31 |
3.19 |
1.52 |
1.39 |
0.29 |
0.25 |
1.10 |
1.00 |
1.12 |
1.08 |
0.88 |
0.75 |
||||
